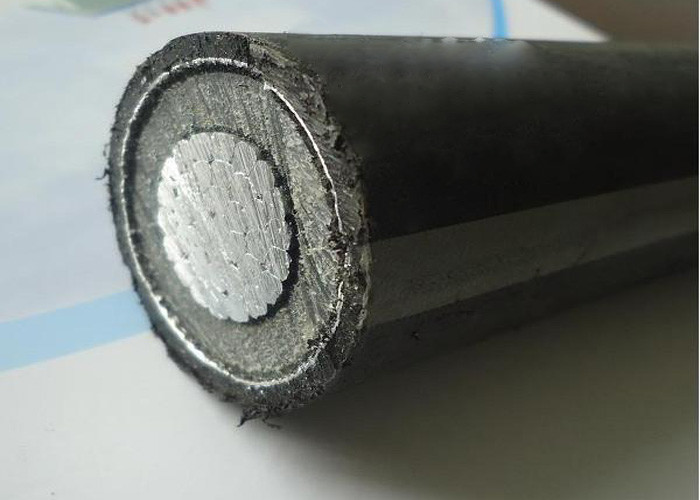

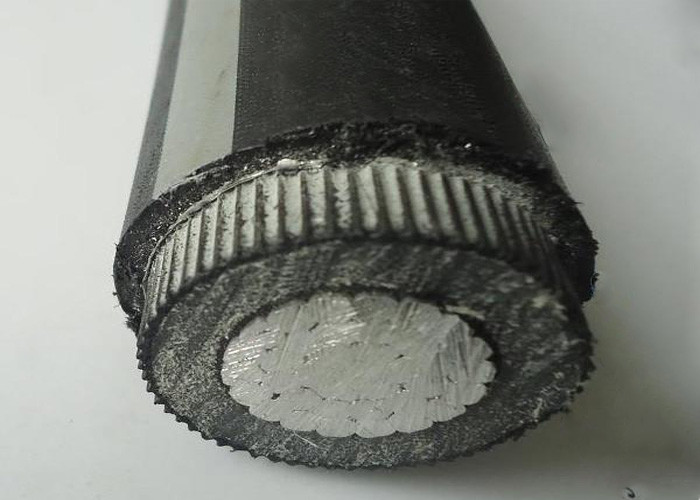

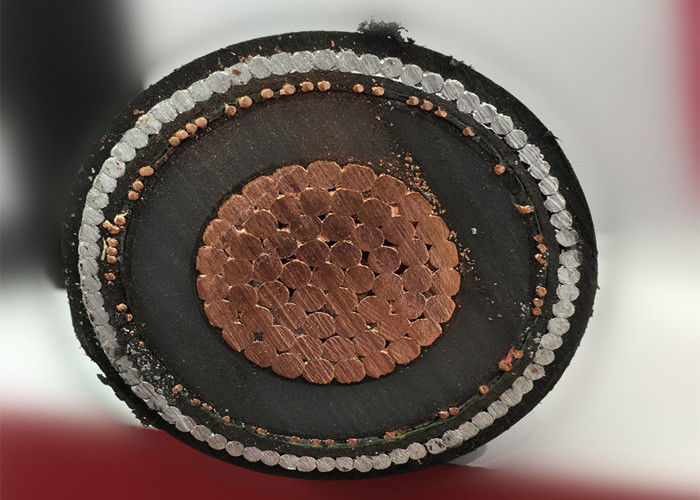

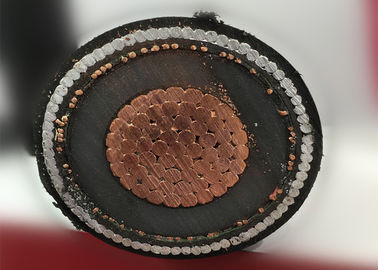

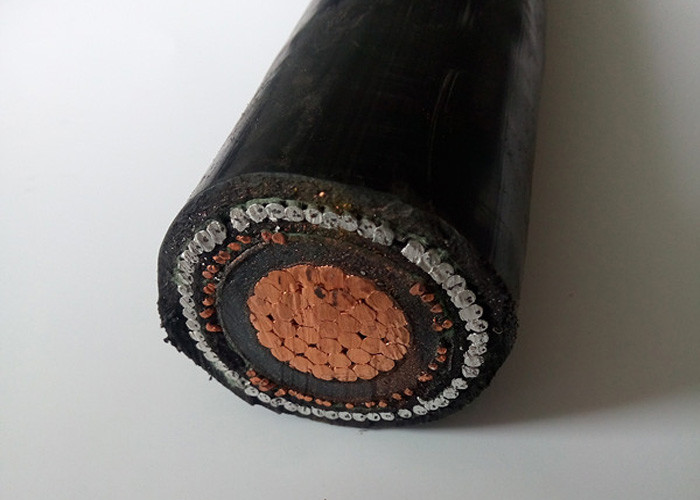

Medium voltage 24kv XLPE underground steel wire armored SWA power cable

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: MV

Detail Information

Insulation Material: XLPE Type: Medium Voltage
Application: Underground Conductor Material: Copper
Jacket: PVC Product Name: Medium Voltage 24kv XLPE Underground Steel Wire Armored Power Cable
Rated Voltage: 1-35KV Conductor: Al/Cu
Core: 1 Core / 3 Core Sheath: PVC/PE
Armour: SWA STA AWA ATA Color: Black/Red
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel
High Light:

medium voltage power cables

,

concentric neutral cable

Product Description

Medium voltage 24kv XLPE underground steel wire armored swa power cable

Product Description

armoured cable.jpg



Application:

The product is used in power transmission and  distribution line at voltage up to  46KV. It does not only have  excellent  electric, mechanical properties, but  also has powerful resistance against chemical corrosion, heat aging and environmental stress.



Applicable Standard:

We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.



Cable Characteristics:

Rated Voltage: 1KV to 35KV

Cross-section area: up to 1000 .

Conductor long-time operating temperature: 90℃

Short circuit conductor highest temperature: 250℃





Cable Structure:

Core Number: 1 Core / 3 Core

Conductor: Cu / AL

Insulation: XLPE / TRXLPE

Metallic screen: Cu tape / Cu wire screen / Al-Plastic Tape screen

Armor type: AL Tape / AL Wire / STA / SWA

Outer sheath: PVC / PE / LDPE / LLDPE / LSHF





Product date sheet



Conductor Size Min Stranding No. Nominal Diameter Max.D.C.Resistance at 20℃
AWG/kcmil mm² No.s mm Ω/km
3 26.7 6 6.05 0.68509
2 33.6 6 6.81 0.54357
1 42.4 7 7.359 0.43099
1/0 53.5 7 8.63 0.34094
2/0 67.4 12 9.55 0.27082
3/0 85 15 10.7 0.21453
4/0 107 17 12.1 0.16854
250 127 18 13.2 0.14409
300 152 18 14.5 0.12029
350 177 24 15.6 0.10292
400 203 24 16.7 0.08909
450 228 30 17.8 0.07912
500 253 30 18.7 0.07140
550 279 34 19.7 0.06561
600 304 34 20.7 0.06015
700 355 34 22.3 0.05114
750 380 53 23.1 0.04760
800 406 53 23.8 0.04471
900 456 53 25.4 0.03956
1000 507 53 26.9 0.03570



Rated Circuit Voltage Phase-to-Phase Conductor Size XLPE/TRXLPE Insulation Nominal Thickness Metal Screen
100 Percent Level 133 Percent Level 173 Percent Level Copper Tape
v AWG/kcmil mm mm mm mm
2001-5000 8-1000 2.3 2.3 3.6 0.06
1001-3000 3.6 3.6 3.6 0.06
5001-8000 6-1000 2.9 3.6 4.4 0.06
1001-3000 4.4 4.4 5.6 0.06
8001-15000 2-1000 4.4 5 6.6 0.06
1001-3000 5.6 5.6 6.6 0.06
15001-25000 1-3000 6.6 8.1 10.7 0.06
25001-28000 1-3000 7.1 8.8 11.3 0.06
28001-35000 1/0-3000 8.8 10.7 14.7 0.06
35001-46000 1/0-3000 11.3 14.7 19.1 0.06
