600V Aluminum Service Cable Duplex Abc Cable IEC60502-2, BS 6622, NFC 33226 Standard

Minimum Order Quantity : 1000 Meter/M Price : US $1-30 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information

Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: 600V Service Drop Cable Duplex Abc Cable ICEA Standard
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
High Light:

aluminum service cable

,

overhead service cable

Product Description

600V Service Drop Cable duplex abc cable ICEA Standard

Product Description

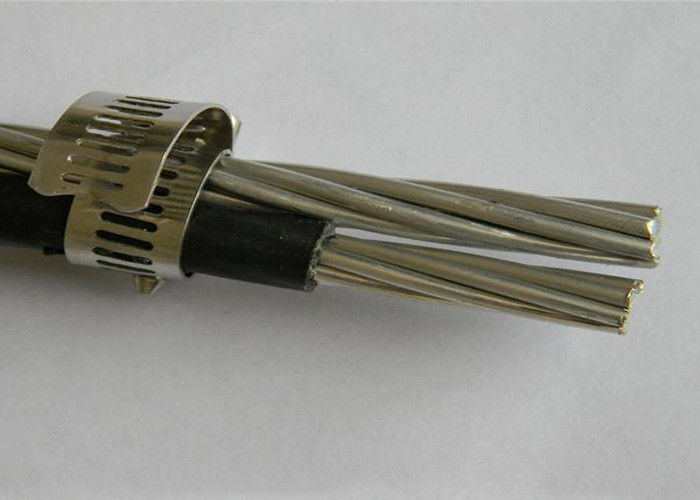

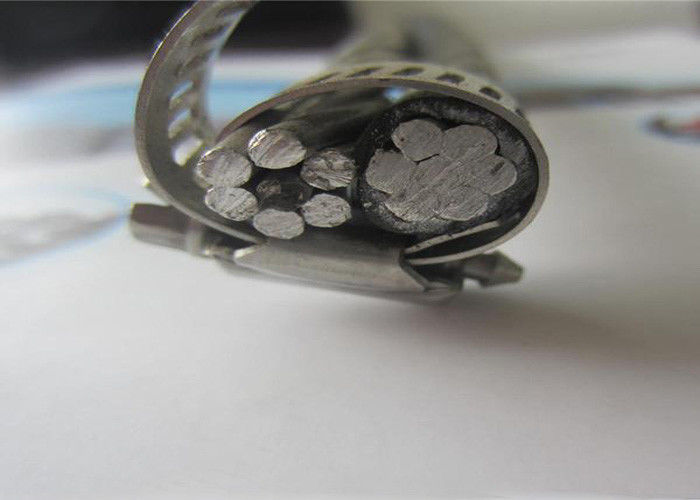

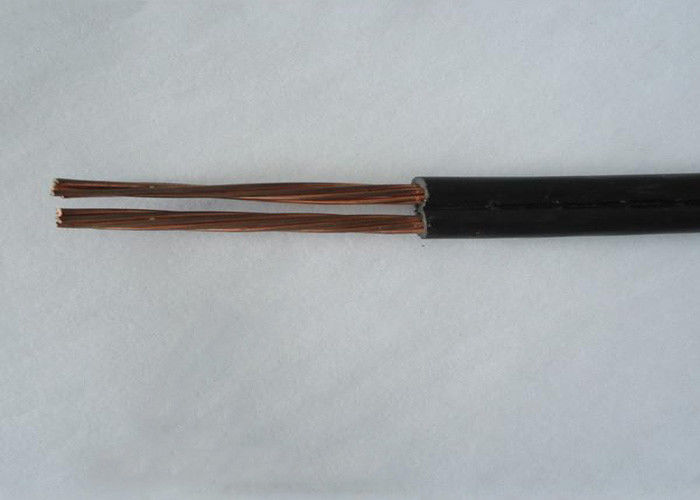

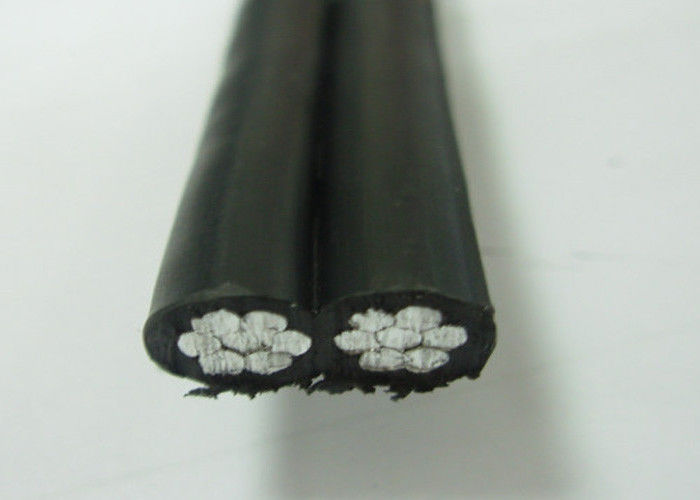

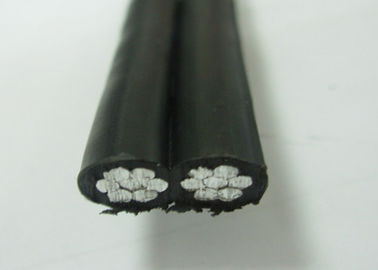

abc cable.jpg


Application:
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃

Applicable Standard:
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474


Cable Structure:
Conductor: Al/Al Alloy/Cu
Insulation: XLPE/PE/PVC








AAC Conductor Supported Service Drop Cable- ICEA S-76-474





Code Name Size Al Phase Core AAAC Conductor Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area Str. No. Dia.

Insulation Nominal

Thickness

Cross-section Area Str. No. Dia.
AWG/MCM mm2 No.s mm mm mm2 No.s mm KN mm kg/km
DUPLEX
Collie 1X6+6AWG 13.3 7 4.65 1.14 13.30 7 4.68 2.5 11.6 92.0
Spaniel 1X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 13.8 138.3
Doberman 1X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 16.8 211.2
Malemute 1X1/0+1/0AWG 53.5 19 9.2 1.52 53.51 7 9.36 8.8 21.6 339.9
TRIPLEX
Patella 2X6+6AWG 13.3 7 4.65 1.14 13.30 7 4.68 2.5 13.3 149
Oyster 2X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 15.6 221
Clam 2X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 18.9 334
Murex 2X1/0+1/0AWG 53.49 7 9.2 1.52 53.51 7 9.36 8.8 24.2 538
Nassa 2X2/0+2/0AWG 67.43 7 10.3 1.52 67.44 7 10.5 11.2 26.6 663
Melita 2X3/0+3/0AWG 85.01 19 11.6 1.52 85.03 7 11.79 14.7 29.4 820
Portunus 2X4/0+4/0AWG 107.2 19 13 1.52 107.20 7 13.26 17.9 32.5 1017
Nannynose 2X336.4+336.4MCM 170.45 19 16.56 2.03 170.46 19 16.9 27.3 41.7 1631
QUADRUPLEX
Pinto 3X4+4AWG 21.15 7 5.7 1.14 21.15 7 5.88 3.9 18 302
Mustang 3X2+2AWG 33.62 7 7.2 1.14 33.63 7 7.41 6.0 21.6 454
Criollo 3X1/0+1/0AWG 53.51 19 9.2 1.52 53.51 7 9.36 8.8 27.8 734
Percheron 3X2/0+2/0AWG 67.44 19 10.3 1.52 67.44 7 10.5 11.2 30.4 902
Hanoverian 3X3/0G+3/0AWG 85.03 19 11.6 1.52 85.03 7 11.79 14.7 33.6 1113
Oldenburg 3X4/0+4/0AWG 107.20 19 13 1.52 107.20 7 13.26 17.9 37.0 1377
Lippizaner 3X336.4+336.4MCM 170.46 19 16.56 2.03 170.46 19 16.9 27.3 47.5 2212













ACSR Conductor Supported Service Drop Cable- ICEA S-76-474









Code Name Size Al Phase Core ACSR Messenger Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area Str. No. Dia. Insulation Nominal Thickness Cross-section Area Al Wire St Wire Stranded Dia.

Str.

No.

Dia. Str. No. Dia.
AWG/MCM mm2 No.s mm mm mm2 No.s mm No.s mm mm KN mm kg/km
DUPLEX
Shepherd 1X6+6 13.3 7 4.68 1.14 13.3 6 1.68 1 1.68 5.04 5.3 12 109
Terrier 1X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.3 14.34 165
Chow 1X2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01 12.7 17.49 254
Bull 1X1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11 19.5 22.35 408
TRIPLEX
Voluta 2X6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04 5.3 13.58 166
Periwinkle 2X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.3 16.03 248
Conch 2X2+6 33.6 7 7.2 1.14 13.3 6 2.67 1 2.67 8.01 12.7 19.36 377
Neritina 2X1/0+1/0 53.5 7 9.2 1.52 53.51 6 3.37 1 3.34 10.02 19.5 24.77 607
Triton 2X2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34 23.6 27.3 751
Mursia 2X3/0+3/0 85.0 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75 29.4 30.18 931
Zuzara 2X4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31 37.1 33.31 1156
Limpet 2X336.4+336.4 170.4 19 16.56 2.03 170.46 18 3.47 1 3.47 17.35 38.6 42.07 1704
Strombus 2X4+6 21.1 7 5.7 1.14 13.3 6 1.68 1 1.68 5.04 5.3 15.08 216
Cockle 2X2+4 33.6 7 7.2 1.14 21.15 6 2.12 1 2.12 6.36 8.3 18.18 327
Janthina 2X1/0+2 53.5 7 9.2 1.52 33.62 6 2.67 1 2.67 8.01 12.7 23.33 527
Ranella 2X1/0+2 53.5 19 9.2 1.52 33.62 6 2.67 1 2.67 8.01 12.7 23.33 527
Clio 2X2/0+1 67.4 19 10.3 1.52 42.41 6 3.00 1 3.00 9 15.8 25.62 649
Aega 2X3/0+1/0 85.0 19 11.6 1.52 53.51 6 3.37 1 3.37 10.11 19.5 28.28 803
Cerapus 2X4/0+2/0 107.2 19 13 1.52 67.44 6 3.78 1 3.78 11.34 23.6 31.18 994
Cowry 2X336.4+4/0 170.4 19 16.59 2.03 107.22 6 4.77 1 4.77 14.31 37.1 39.93 1597
QUADRUPLEX
Chola 3X6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04 5.30 15.61 222
Hackney 3X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.30 18.29 329
Pallomino 3X2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01 12.70 22 497
Costena 3X1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11 19.50 28.26 802
Grullo 3X2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34 23.60 31 987
Suffolk 3X3/0+3/0 85.0 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75 29.40 34.2 1222
Appaloosa 3X4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31 37.10 37.68 1513
Gelding 3X336.4+4/0 170.4 19 16.56 2.03 107.22 6 4.77 1 4.77 14.31 37.10 45.97 2174













AAAC Conductor Supported Service Drop Cable- ICEA S-76-474









Code Name Size Al Phase Core AAAC Conductor Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area

Str.

No.

Dia.

Insulation Nominal

Thickness

Cross-section Area Stranding No. Dia.
AWG/MCM mm2 No.s mm mm mm2 No.s mm KN mm kg/km
Duplex
Chihuahua 1X6AWG+6AWG 13.3 1 4.11 1.14 15.50 7 5.04 4.93 11.43 96
Vizsla 1X6AWG+6AWG 13.3 7 4.65 1.14 15.50 7 5.04 4.93 11.97 98
Harrier 1X4AWG+4AWG 21.15 1 5.19 1.14 24.67 7 6.36 7.82 13.83 146
Whippet 1X4AWG+4AWG 21.15 7 5.7 1.14 24.67 7 6.36 7.82 14.34 148
Schnauzer 1X2AWG+2AWG 33.62 7 7.2 1.14 39.25 7 8.02 12.45 17.50 226
Heeler 1X1/0AWG+1/0AWG 53.49 19 9.2 1.52 62.48 7 10.1 19.83 22.35 364
Triplex
Hippa 2X6AWG+30.58MCM 13.30 7 4.66 1.14 15.50 7 5.04 4.93 13.58 154
Bamacle 2X4AWG+48.69MCM 21.15 7 5.7 1.14 24.67 7 6.36 7.82 16.03 230
Shrimp 2X2AWG+77.47MCM 33.62 7 7.2 1.14 39.25 7 8.01 12.45 19.36 349
Gammarus 2X1/0AWG+123.3MCM 53.51 7 9.2 1.52 62.48 7 10.11 19.83 24.84 562
Cyclops 2X2/0AWG+155.4MCM 67.44 19 10.3 1.52 78.74 7 11.34 23.96 27.3 693
Flustra 2X3/0AWG+195.7MCM 85.03 19 11.6 1.52 99.16 7 12.75 30.18 30.18 858
Lepas 2X4/0AWG+246.9MCM 107.22 19 13 1.52 125.11 7 14.31 38.05 33.31 1064
Crab 2X4AWG+30.58MCM 21.15 7 5.7 1.14 15.50 7 5.04 4.93 15.08 205
Solaster 2X2AWG++48.69MCM 33.62 7 7.2 1.14 24.67 7 6.36 7.82 18.18 309
Sandcrab 2X1/0AWG+77.47MCM 53.51 7 9.2 1.52 39.25 7 8.01 12.45 23.33 498
Sipho 2X2/0AWG+97.65MCM 67.44 19 10.3 1.52 49.48 7 9 15.69 25.62 613
Fulgar 2X3/0AWG+123.3MCM 85.03 19 11.6 1.52 62.48 7 10.11 19.83 28.28 757
Arca 2X4/0AWG+155.4AWG 107.22 19 13 1.52 78.74 7 11.34 23.96 31.18 936
QUADRUPLEX
French Coach 3X6AWG+30.58MCM 13.30 7 4.66 1.14 15.50 7 5.04 4.93426 15.61 211
Arabian 3X4AWG+48.69MCM 21.15 7 5.7 1.14 24.67 7 6.36 7.82369 18.29 312
Belgian 3X2AWG+77.47MCM 33.62 7 7.2 1.14 39.25 7 8.01 12.4468 22 469
Shetland 3X1/0AWG+123.3MCM 53.51 19 9.2 1.52 62.48 7 10.11 19.8259 28.26 757
Thoroughbred 3X2/0AWG+155.4MCM 67.44 19 10.3 1.52 78.74 7 11.34 23.9601 31 932
Trotter 3X3/0AWG+195.7MCM 85.03 19 11.6 1.52 99.16 7 12.75 30.1835 34.2 1151
Walking 3X4/0AWG+246.9MCM 107.20 19 13 1.52 125.10 7 14.31 38.0516 37.68 1424
