Special Cables / Flexible Bare Copper Welding Cable For Secondary Voltage Resistance Welding Leads

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN Cable Group
Model Number: Special Cables

Detail Information

Insulation Material: (optional) EPDM/EPR Conductor Material: Flexible Bare Copper And Copper, Class5, Class6
Jacket: CPE/ PCP/ CSP/CR/EPDM Certificate: ISO9001/ISO14001
Product Name: Welding Cable
High Light:

custom control cables

,

special power cable

Product Description

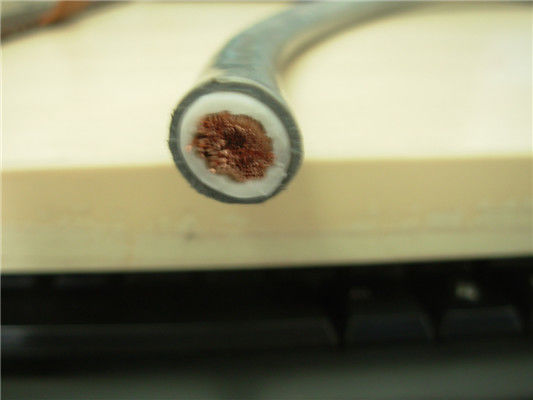

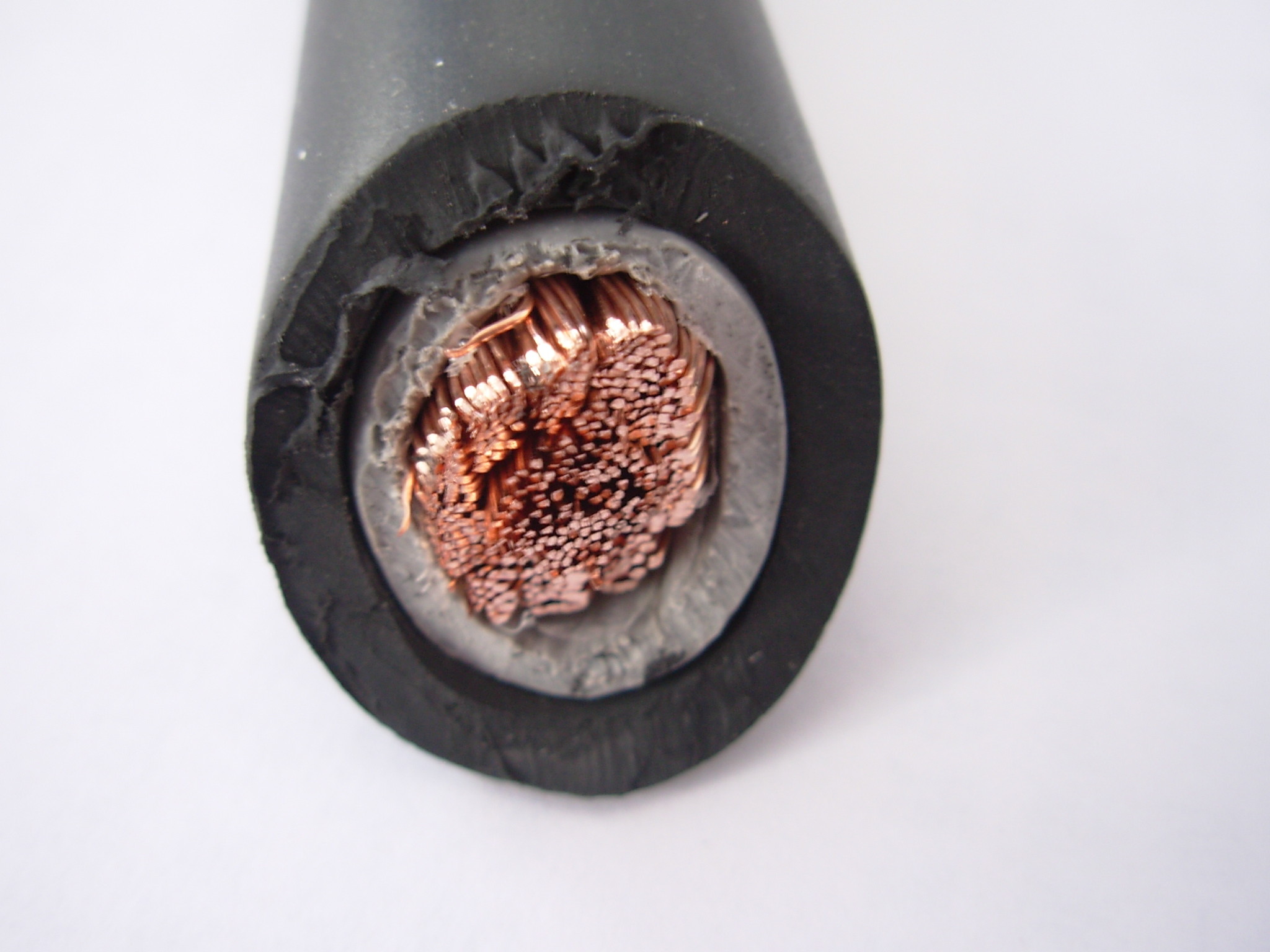

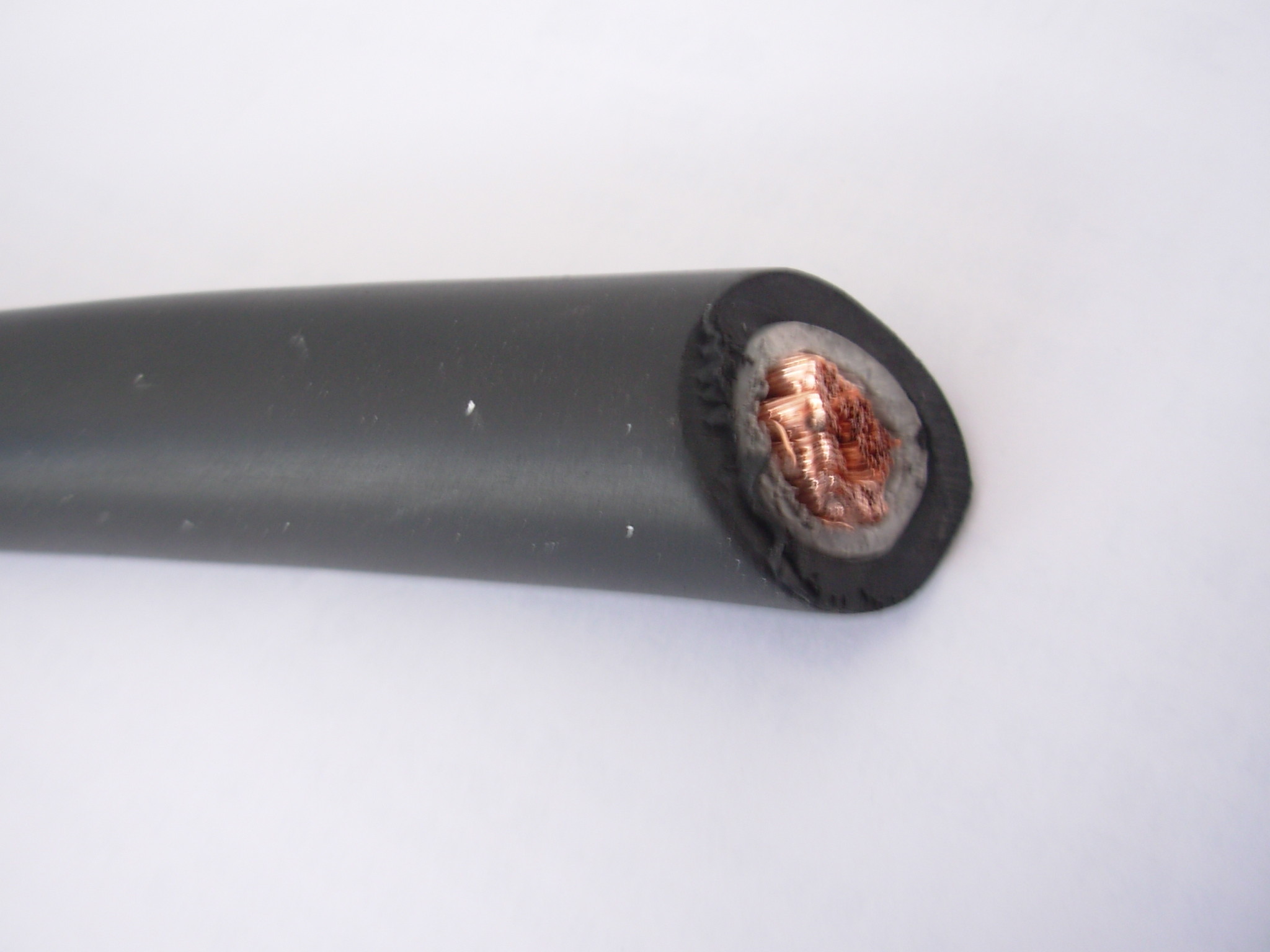

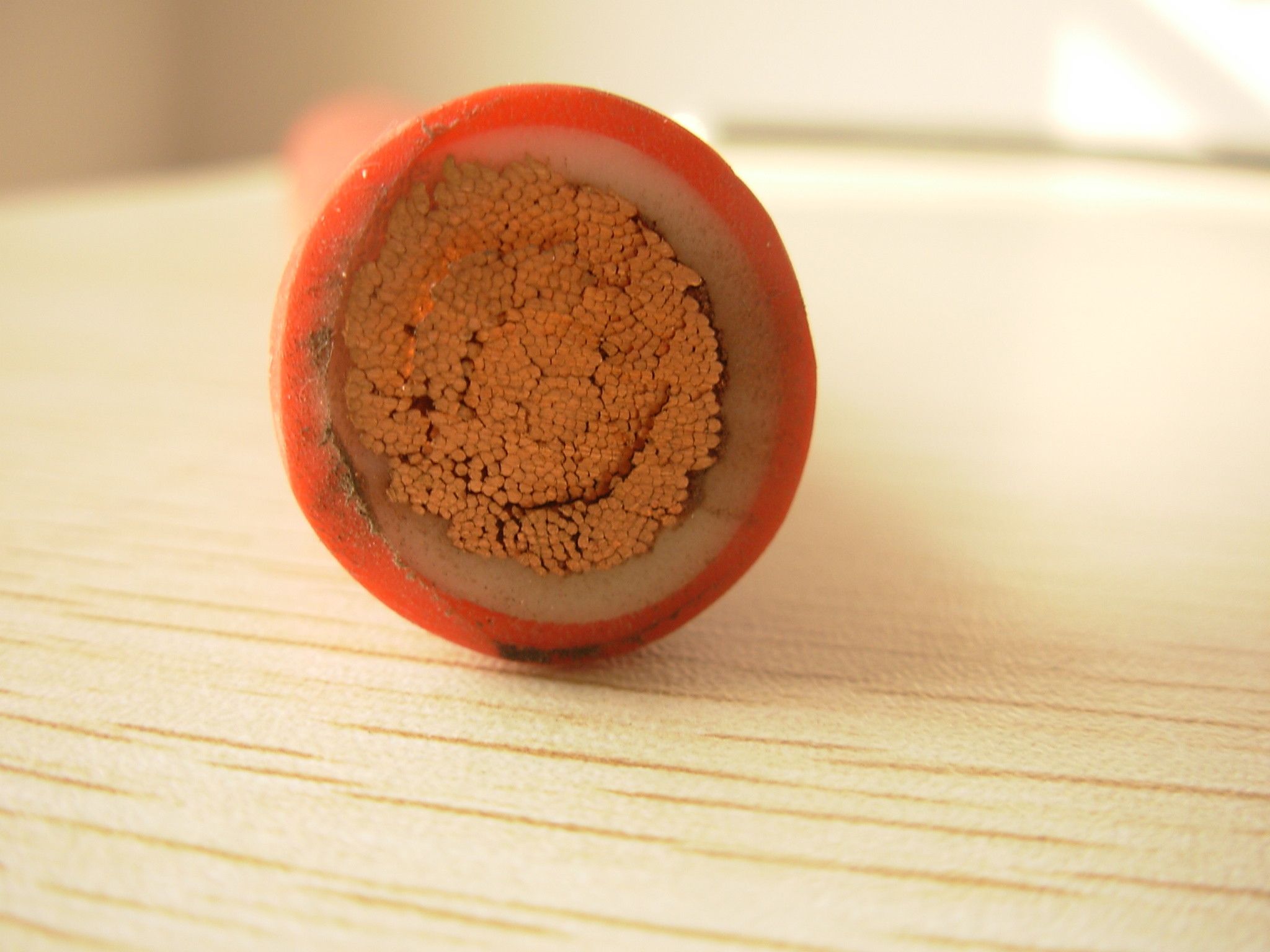

Special Cables / Flexible Bare Copper Welding Cable For Secondary Voltage Resistance Welding Leads

Welding cables

Product Description

 low voltage power cable.jpg



Application

Used by professional welders, for secondary voltage resistance welding leads and as a power supply for welding tools and applications that do not require over 600 volts AC.



Standard



As per Customer’s technical specifications



Construction

Flexible bare copper and coated copper, class5, class6

Insulation (optional) EPDM/EPR

Sheath : CPE/ PCP/ CSP/CR/EPDM



Instrument cable



Welding Cable With Single Layer Insulation
Conductor   Size Cu   Conductor Insulation Outer sheath Approx. Overall Dia. Approx. Weight
Single Wire Dia. Conductor   Dia. Nominal   thickness Thickness
mm2 mm mm mm mm mm kg/km
6 ≤0.31 3.69 1 -- 5.7 68
10 ≤0.41 4.89 1 -- 6.9 108
16 ≤0.41 6.15 1 -- 8.2 165
25 ≤0.41 7.89 1.2 -- 10.3 257
35 ≤0.41 8.98 1.2 -- 11.4 350
50 ≤0.41 10.7 1.4 -- 13.5 498
70 ≤0.51 12.6 1.4 -- 15.4 684
95 ≤0.51 14.58 1.6 -- 17.8 926
120 ≤0.51 17.34 1.6 -- 20.5 1162



Welding Cable With Double Layer Insulation
Conductor   Size Cu   Conductor Insulation Outer sheath Approx. Overall Dia. Approx. Weight
Single Wire Dia. Conductor   Dia. Nominal   thickness Thickness
mm2 mm mm mm mm mm kg/km
6 ≤0.31 3.69 1 1.4 8.5 114
10 ≤0.41 4.89 1 1.4 9.7 161
16 ≤0.41 6.15 1 1.4 11 227
25 ≤0.41 7.89 1.2 1.4 13.1 333
35 ≤0.41 8.98 1.2 1.4 14.2 433
50 ≤0.41 10.7 1.4 1.4 16.3 595
70 ≤0.51 12.6 1.4 1.4 18.2 794
95 ≤0.51 14.58 1.6 1.5 20.8 1060
120 ≤0.51 17.34 1.6 1.6 23.7 1327
