PVC 2 Core Low Voltage Cable Light Polyvinyl Chloride Sheathed Cable With Ground

Place of Origin: Henan ,China Brand Name: CN cable
Certification: IEC Model Number: vv

Detail Information

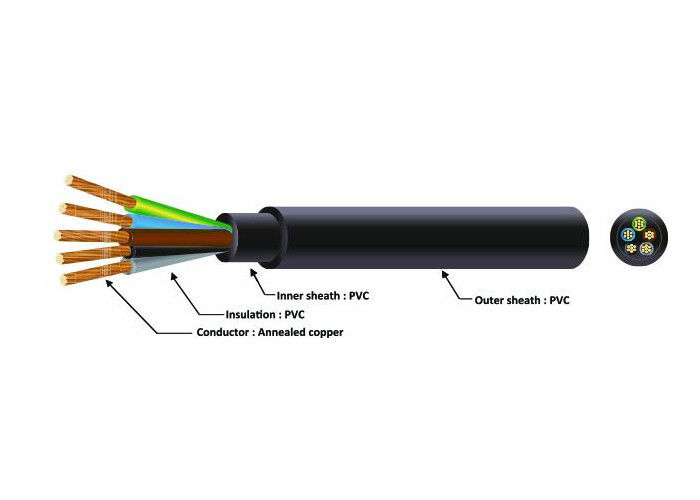

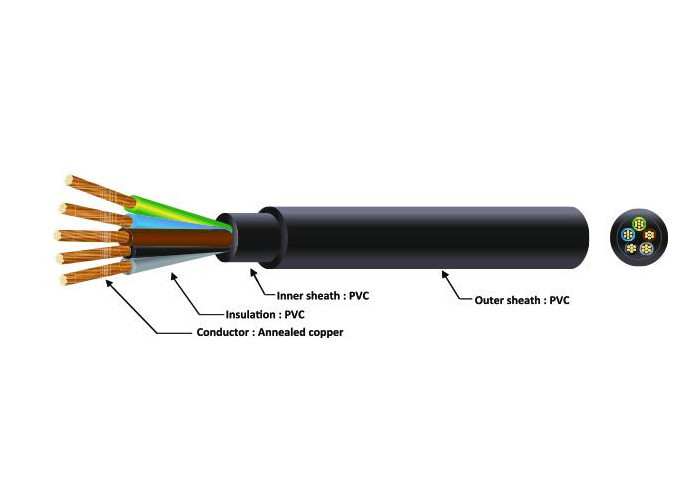

Conductor: Solid Or Circular Stranded Annealed Copper Insulated: PVC
Inner Sheath: PVC Outer Sheath: PVC
Application: Industrial,Construction Type: Low Voltage
High Light:

lv armoured cable

,

low voltage electrical cable

,

low voltage power cable

Product Description

2 CORES - LIGHT POLYVINYL CHLORIDE SHEATHED CABLE WITH GROUND



Application:



Use for general purpose.
For installation in raceway and shall be protected water into raceway.
Laid on cable trays/Cable ladder.
Do not install in duct in ground or direct burial in ground



No.of core Nominal Cross-section Area  Nominal Thickness of Insulated Nominal Thickness of Inner Sheath Nominal Thickness of Outer Sheath Overall Diameter Insulated Resistance at 70℃(Min.) Current Rating in Free Air Approx. Cable Weight
Phase Ground Min. Max.
mm² mm² mm mm mm mm mm mΩ.km A kg/km
2+6 1.5 1.5 0.7 0.4 1.2 8.0 10.5 0.011 17 140
2.5 2.5 0.8 0.4 1.2 9.2 12.0 0.010 22 190
4 4 0.8 0.4 1.2 10.0 13.0 0.0085 30 250
6 6 0.8 0.4 1.4 11.5 14.5 0.0070 37 340
10 10 1.0 0.6 1.4 14.0 17.5 0.0070 52 540
16 16 1.0 0.8 1.4 16.5 21.5 0.0052 70 840
25 25 1.2 0.8 1.6 20.5 26.0 0.0050 92 1270
35 35 1.2 1.0 1.6 22.0 29.0 0.0044 113 1680



Packing & Shipping

Packing Material: Coil (for small size & short length), wooden drum, iron-wooden drum, steel drum.

Shipping: Loading port from Qingdao or Shanghai ,12-24 hours from factory to sea port.
