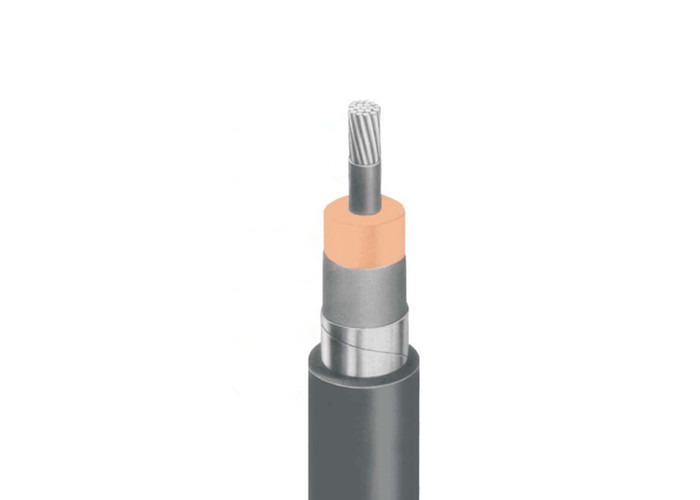

15KV MV Power Cable EPR Insulation Copper Tape Screen CPE Outer Sheath

Minimum Order Quantity : 1000meters
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: CPE

Detail Information

Conductor: Compact Stranded Copper Conductor Screen: Semi-conductive
Insulation: EPR Metal Screen: Copper Tape
Outer Sheath: CPE
High Light:

medium voltage power cables

,

concentric neutral cable

,

insulated power cable

Product Description

Product Date:

No.  Conductor Size Approx. Dia.overall insulated Approx. Dia.overall Screen Outer Sheath Thickness Approx. O.D. Approx. Weight Ampacities
AWG or Kcmil mm2 in. in. mils mm inches mm Net Gross Conduit in Air Underground Duct Cable Tra
175mils/4.45mm, 100% insulated level
1 1/0 53.5 0.74 0.80 80 2.03 0.98 24.8 760 825 215 215 220
2 2/0 67.4 0.78 0.84 80 2.03 1.02 25.8 870 935 255 245 250
3 3/0 85.0 0.83 0.89 80 2.03 1.07 27.1 1005 1070 290 275 290
4 4/0 107.0 0.88 0.94 80 2.03 1.12 28.4 1160 1240 330 315 335
5 250 127.0 0.93 0.98 80 2.03 1.17 29.7 1330 1415 365 345 370
6 350 177.0 1.03 1.07 80 2.03 1.26 32.0 1700 1800 440 415 460
7 500 253.0 1.14 1.19 80 2.03 1.38 35.1 2230 2275 535 500 575
8 750 380.0 1.32 1.37 80 2.03 1.55 39.4 3105 3340 655 610 745
9 1000 507.0 1.47 1.52 80 2.03 1.71 43.4 3960 4215 755 690 890



No. Conductor Size Approx. Dia.overall insulated Approx. Dia.overall Screen Outer Sheath Thickness Approx. O.D. Approx. Weight Ampacities
AWG or Kcmil mm2 in. in. mils mm inches mm Net Gross Conduit in Air Underground Duct Cable Tra
220mils/5.59mm, 133% insulated level
1 1/0 53.5 0.83 0.88 80 2.03 1.10 28.0 905 975 215 215 220
2 2/0 67.4 0.87 0.92 80 2.03 1.11 28.2 970 1030 255 245 250
3 3/0 85.0 0.92 0.98 80 2.03 1.16 29.4 1100 1185 290 275 290
4 4/0 107.0 0.96 1.02 80 2.03 1.21 30.7 1280 1370 330 315 335
5 250 127.0 1.01 1.07 80 2.03 1.26 32.0 1435 1520 365 345 370
6 350 177.0 1.11 1.17 80 2.03 1.35 34.3 1810 1940 440 415 460
7 500 253.0 1.22 1.28 80 2.03 1.47 37.3 2350 2535 535 500 575
8 750 380.0 1.40 1.46 80 2.03 1.65 41.9 3240 3480 655 610 745
9 1000 507.0 1.55 1.60 110 2.79 1.86 47.1 4220 4490 755 690 890
Packing & Shipping

Packing Material: Coil (for small size & short length), wooden drum, iron-wooden drum, steel drum.

Shipping: Loading port from Qingdao or Shanghai ,12-24 hours from factory to sea port.

Company Information:

10+ years experience of export business.

Flexible business model, rich customer groups.

Wide range of cable products, rich resources in local market.

Some Export Area:

Australia , Bangladesh, Canada, Chile, Cote D’ivoire, Congo, Dominican, Ecuador, Gambia, Ghana, Guinea, Guyana, Indonesia, Haiti, Iran, Kenya, Lraq, India, Malawi, Malaysia, Myanmar, Nigeria, Nepal. Peru, Philippines, Paraguay, Panama, Pakistan, Rwanda, Saudi Arab, South Africa, Sudan, Trinidad Tobago, Togo, Turkey, Uganda, US, UAE, UK, Uruguay, Yemen, Zimbabwe, Zambia.

Our Services
  1. Product consultation, analysis, design, production
  2. Provide industry information, Product Training, Assist Product Marketing
  3. Provide project support such as tender assistant, cooperate visit customers, FAT support.
  4. Complete quality system and docs available, faster lead time, good quality, Strong technical support, free samples.
  5. OEM service
  6. Other service customized by clients
FAQ

Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.

Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .

Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
