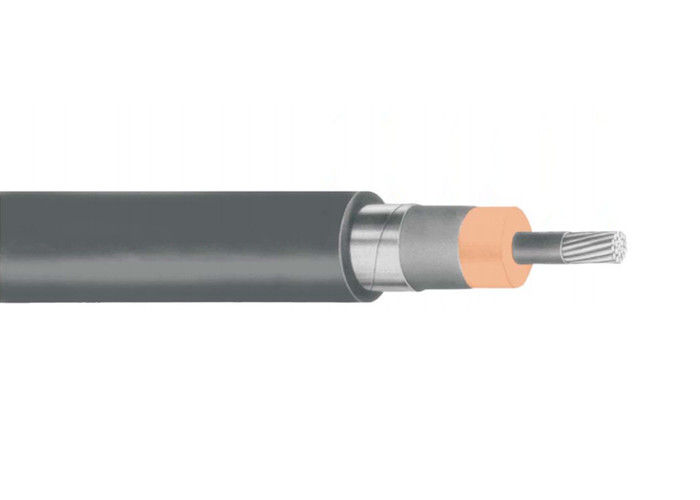

35KV Medium Voltage Cable , Shielded Power Cable Compact Stranded Copper Conductor

Minimum Order Quantity : 1000meters
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: CPE

Detail Information

Conductor: Compact Stranded Copper Conductor Screen: Semi-conductive
Insulation: EPR Metal Screen: Copper Tape
Outer Sheath: CPE
High Light:

medium voltage power cables

,

concentric neutral cable

,

insulated power cable

Product Description

MV-35KV Sheath power cable Copper Conductor , EPR Insulation .Copper Tape Screen PVC Outer Sheath



Application:



35KV MV power cables are recommended for use as feeder circuits, in electric utility generating stations, for distribution circuits, and for feeders or branch circuits in industrial and commercial installations. Type MV cables may be installed in wet or dry locations, indoors or outdoors (exposed to sunlight), in any raceway or underground duct, directly buried if installed in a system with a grounding conductor in close proximity that conforms with NEC Section 250.4(A)(5), or messenger supported in industrial establishments and electric utilities. Sizes 1/0 AWG and larger may also be installed in cable tray.



Product Date:

No.  Conductor Size Approx. Dia.overall insulated Approx. Dia.overall Screen Outer Sheath Thickness Approx. O.D. Approx. Weight Ampacities
AWG or Kcmil mm2 in. in. mils mm inches mm Net Gross Conduit in Air Underground Duct Cable Tra
345mils/8.76mm, 100% insulated level
1 1/0 53.5 1.09 1.15 80 2.03 1.33 34.0 1140 1275 215 295 215
2 2/0 67.4 1.12 1.19 80 2.03 1.37 35.0 1270 1380 255 335 245
3 3/0 85.0 1.17 1.23 80 2.03 1.42 36.1 1420 1605 290 380 275
4 4/0 107.0 1.23 1.29 80 2.03 1.47 37.4 1595 1800 330 435 315
5 250 127.0 1.27 1.33 80 2.03 1.52 38.7 1760 1950 365 475 345
6 350 177.0 1.36 1.43 80 2.03 1.61 41.2 2150 2420 440 575 415
7 500 253.0 1.48 1.54 80 2.03 1.73 43.9 2720 3014 535 700 500
8 750 380.0 1.66 1.75 110 2.79 1.97 50.1 3765 4240 655 865 610
9 1000 507.0 1.81 1.86 110 2.79 2.12 53.9 4671 5300 755 1005 690



No. Conductor Size Approx. Dia.overall insulated Approx. Dia.overall Screen Outer Sheath Thickness Approx. O.D. Approx. Weight Ampacities
AWG or Kcmil mm2 in. in. mils mm inches mm Net Gross Conduit in Air Underground Duct Cable Tra
420mils/10.7mm, 133% insulated level
1 1/0 53.5 1.24 1.30 80 2.03 1.49 37.9 1350 1535 215 295 215
2 2/0 67.4 1.28 1.34 80 2.03 1.53 39.0 1470 1665 255 335 245
3 3/0 85.0 1.32 1.39 80 2.03 1.57 40.0 1630 1825 290 380 275
4 4/0 107.0 1.39 1.45 80 2.03 1.64 41.9 1840 2085 330 435 315
5 250 127.0 1.42 1.48 80 2.03 1.69 42.9 1985 2250 365 475 345
6 350 177.0 1.52 1.58 110 2.79 1.83 46.5 2495 2770 440 575 415
7 500 253.0 1.63 1.69 110 2.79 1.94 49.3 3085 3555 535 700 500
8 750 380.0 1.81 1.87 110 2.79 2.12 53.9 4055 4680 655 865 610
9 1000 507.0 1.97 2.02 110 2.79 2.27 57.6 5980 5630 755 1005 690
Packing & Shipping

Packing Material: Coil (for small size & short length), wooden drum, iron-wooden drum, steel drum.

Shipping: Loading port from Qingdao or Shanghai ,12-24 hours from factory to sea port.

Company Information:

10+ years experience of export business.

Flexible business model, rich customer groups.

Wide range of cable products, rich resources in local market.

Some Export Area:

Australia , Bangladesh, Canada, Chile, Cote D’ivoire, Congo, Dominican, Ecuador, Gambia, Ghana, Guinea, Guyana, Indonesia, Haiti, Iran, Kenya, Lraq, India, Malawi, Malaysia, Myanmar, Nigeria, Nepal. Peru, Philippines, Paraguay, Panama, Pakistan, Rwanda, Saudi Arab, South Africa, Sudan, Trinidad Tobago, Togo, Turkey, Uganda, US, UAE, UK, Uruguay, Yemen, Zimbabwe, Zambia.

FAQ

Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.

Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .

Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
