XLPE Insulation Wire Instrumentation Cable Aluminum Plastic Composite Tape Screen With Tinned Copper

Minimum Order Quantity : 1000meters
Place of Origin: Henan , China Brand Name: CN CABLE
Certification: BS Model Number: DJYJYP3

Detail Information

Conductor: Class 1 Solid Copper Conductor According To BS EN 60228 (previously BS 6360) Class 2 Stranded Copper Conductor According To BS EN 60228 (previously BS 6360) Class 5 Flexible Copper Conductor According To BS EN 60228 (previously BS 6360) Insulation: MICA Tape + XLPE
Binder Tape: Polyester Tape Screen: Aluminum-plastic Composite Tape
Drain Wire: Tinned Copper Sheath: LSZH (Low Smoke Zero Halogen)
Rated Voltage: 300/500V Sheath Color: Red , Black
High Light:

custom control cables

,

copper welding cable

,

special power cable

Product Description

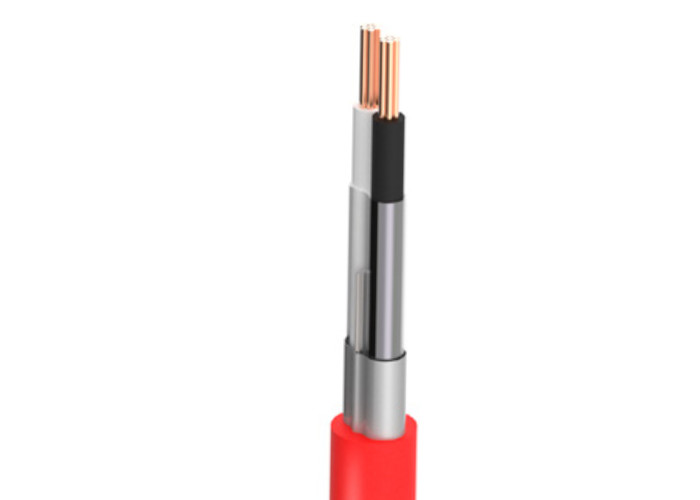

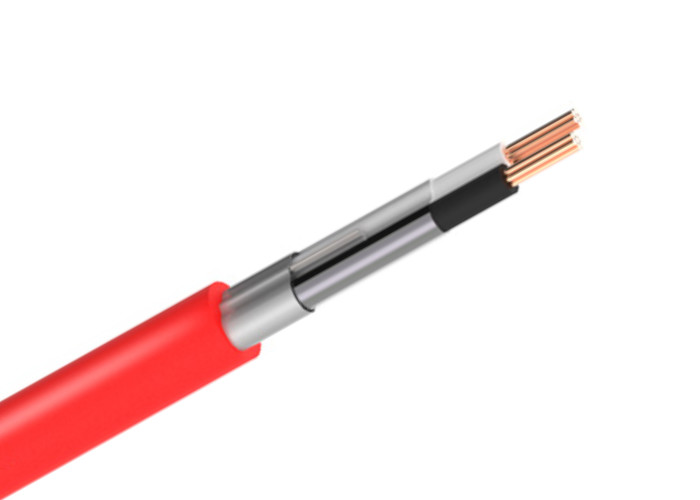

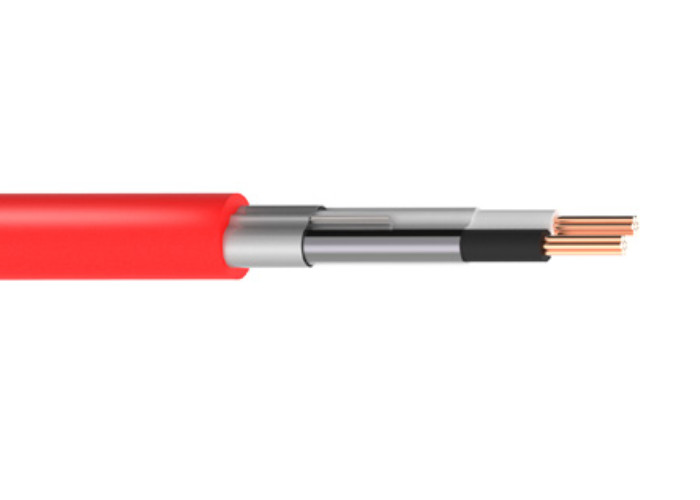

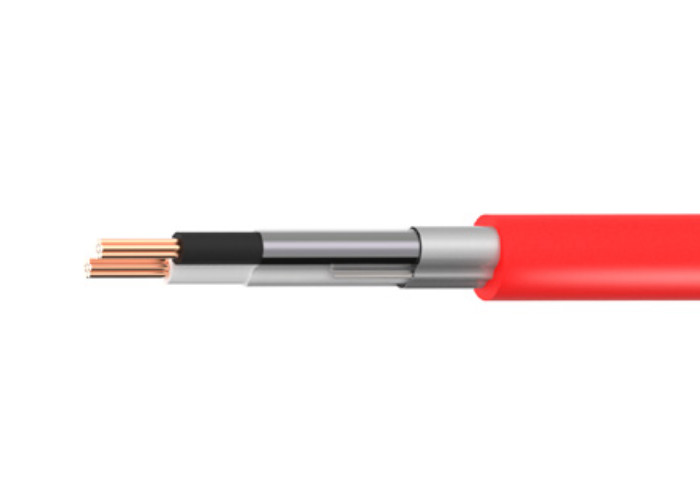

BS 5308 XLPE insulation aluminum-plastic composite tape screen with tinned copper drain wire instrumentation cable





CHARACTERISTICS:



Voltage Rating (Uo/U) : 300/500V

Operating Temperature:  +90°C

Temperature Rating: 0°C to +50°C

Sheath Colour:  Red Black



Date



P=pairs , T=triple , Q=quad

NO. OF
PAIRS/TRIPLE
NOMINAL CROSS
SECTIONAL AREA
mm²
NOMINAL OVERALL
DIAMETER
mm
1P
1P
1P
1P
1P
1T
1T
1T
1T
1T
2P(Q)
2P (Q)
2P (Q)
2P (Q)
2P (Q)
5P
5P
5P
5P
5P
10P
10P
10P
10P
10P
15P
15P
15P
15P
15P
20P
20P
20P
20P
20P
0.5
1
1.5
2.5
0.75
0.5
1
1.5
2.5
0.75
0.5
1
1.5
2.5
0.75
0.5
1
1.5
2.5
0.75
0.5
1
1.5
2.5
0.75
0.5
1
1.5
2.5
0.75
0.5
1
1.5
2.5
0.75
6.9
7.3
8.5
9.3
7.4
7.3
7.8
9
9.9
8.1
8.2
8.7
9.9
11.1
8.8
14.5
15.4
17.9
20.3
15.6
21
22.3
25.7
28.4
22.7
24.1
25.6
29.6
30.3
26
27
28.8
33.6
37.2
29.3















































































ELECTRICAL CHARACTERISTICS



NOMINAL CROSS
SECTIONAL AREA
mm²
MUTUAL CAPACITANCE
pF/m
MINIMUM INSULATION
RESISTANCE AT 20°C
Gohms/km
MAXIMUM
L/R RATIO
µH/ohms
Cables with Collective
Screen Only
1 Pair, 2 Pairs, 1 Triple
Collectively Screened
Cables with Individually
Screened Pairs
0.5
0.75
1
1.5
2.5
75
75
75
85
85
115
115
115
120
120
115
115
115
120
120
>5
>5
>5
>5
>5
25
25
25
40
65



CONDUCTORS



NOMINAL CROSS
SECTIONAL AREA
mm²
CONDUCTOR
CLASS
MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C
ohms/km
0.5
0.75
1
1.5
2.5
5
5
1
2
2
39
26
18.1
12.1
7.41
