Product Description
EPR Insulation Special Cables Black Welding Cable HOFR Sheath BS Certification
APPLICATION:
For the transmission of high currents from the electric welding machine to the welding tool. Suitable for flexible use under rough conditions, on assembly lines and conveyor systems, in machine tool and motor car manufacturing, ship building, for manually and automatically operated line and spot welding machines.

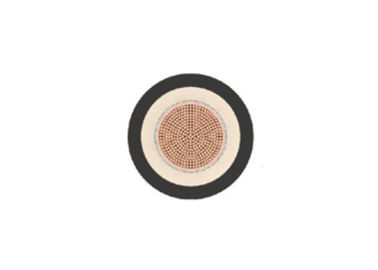

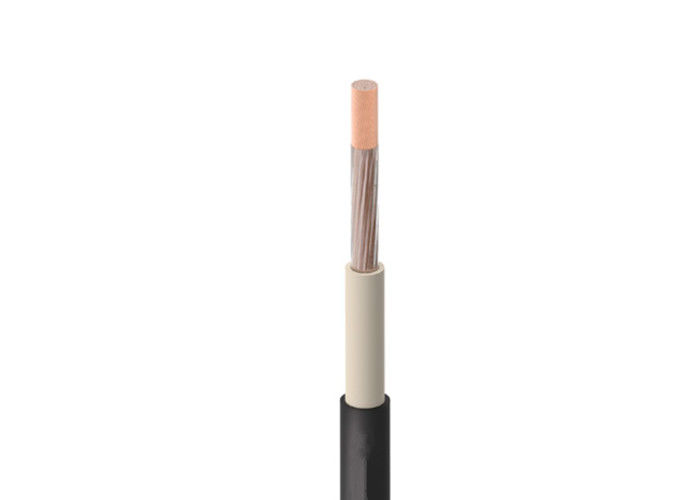

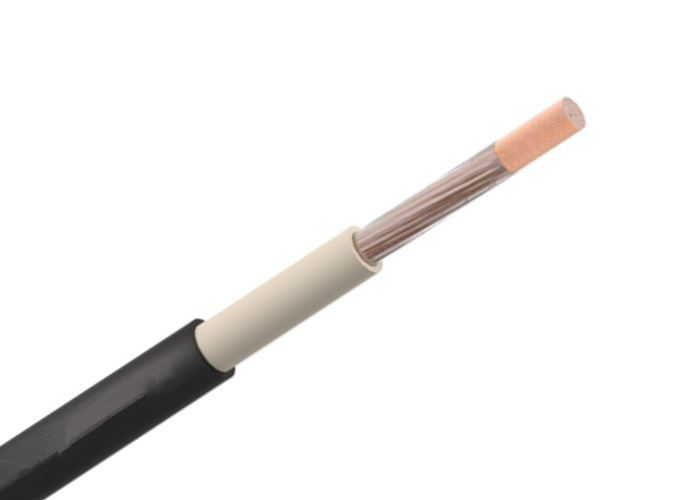

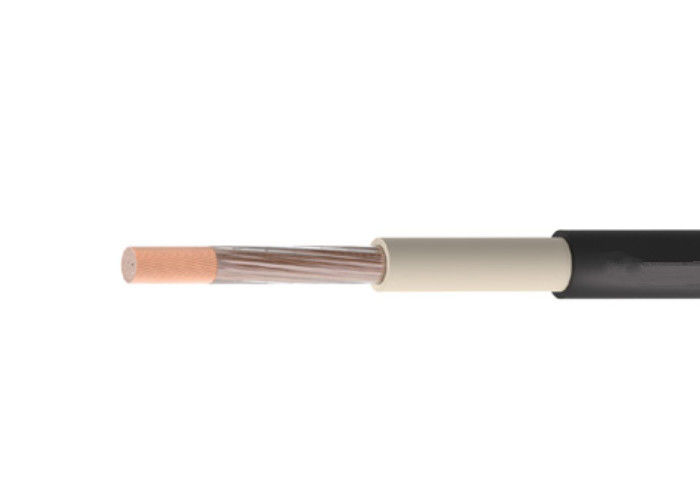

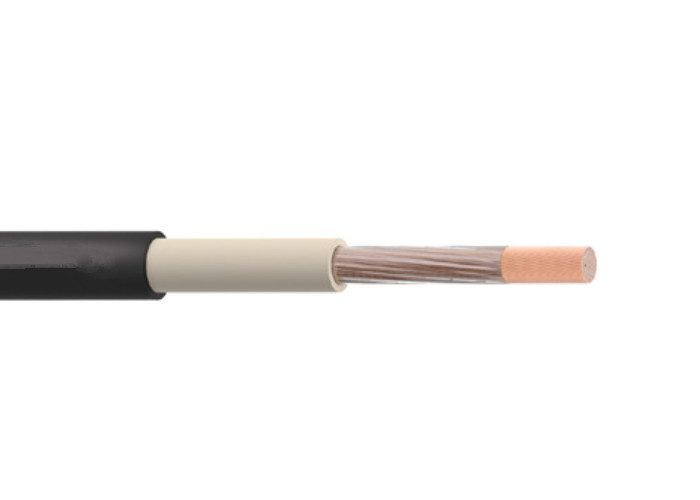

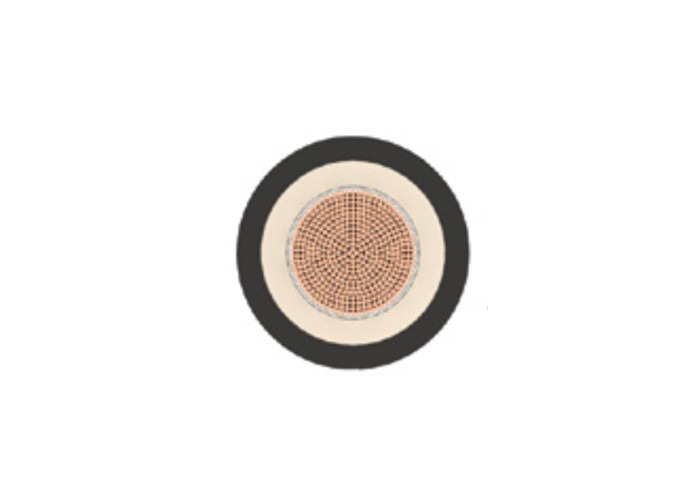

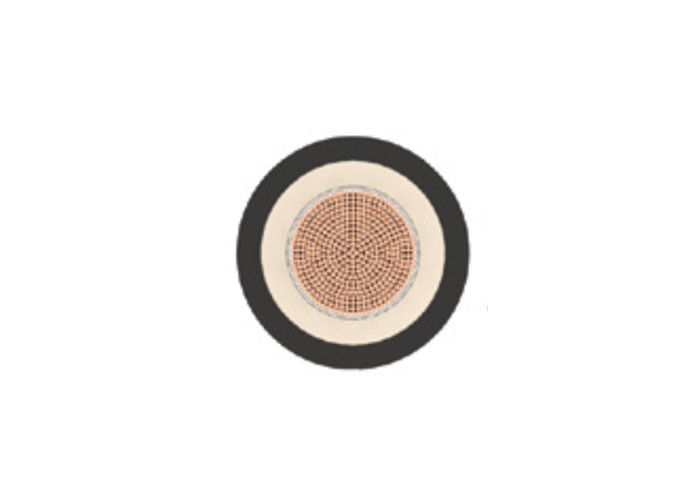

CONSTRUCTION
Conductor
16mm2 to 95mm2: Class 6 extra flexible copper conductor
according to BS EN 60228 (previously BS 6360)
120mm2 and above: Class 5 flexible copper conductor
Separator
PET (Polyester Tape)
Insulation
EPR (Ethylene Propylene Rubber) Type GP4 according to
BS 7655
Sheath
HOFR (Heat and Oil Resistant and Flame Retardant) Type EM5
according to BS EN 50363
CHARACTERISTICS
Voltage Rating
100V (450V for non-welding applications if suitably protected
from mechanical damage)
Temperature Rating
Flexed: -20°C to +85°C
Minimum Bending Radius
Flexed: 6 x overall diameter
Sheath Colour
Black
DIMENSIONS
Type 0361TQ - Plain Copper Conductors
CONDUCTOR
CLASS |
NOMINAL CROSS
SECTIONAL AREA
mm2 |
TOTAL RADIAL THICKNESS
OF COVERING
mm |
NOMINAL OVERALL
DIAMETER
mm |
NOMINAL WEIGHT
kg/km |
6
6
6
6
6
6
5
5
5
5 |
16
25
35
50
70
95
120
150
185
240 |
2
2
2
2.2
2.4
2.6
2.8
3
3.2
3.4 |
9.7
11.2
12.4
14.3
16.3
18.6
20.3
22.6
24.7
27.8 |
215
305
400
587
775
1040
1256
1360
1875
2534 |
CONDUCTORS
Class 6 Flexible Copper Conductors for Single Core and Multi-Core Cables
NOMINAL CROSS SECTIONAL AREA
mm2 |
MAXIMUM DIAMETER OF WIRES IN
CONDUCTOR
mm |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC |
Plain Wires
ohms/km |
16
25
35
50
70
95 |
0.21
0.21
0.21
0.21
0.21
0.21 |
1.21
0.78
0.554
0.386
0.272
0.206 |
Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables
NOMINAL CROSS SECTIONAL AREA
mm2 |
MAXIMUM DIAMETER OF WIRES IN
CONDUCTOR
mm |
MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC |
Plain Wires
ohms/km |
120
150
185
240 |
0.51
0.51
0.51
0.51 |
0.161
0.129
0.106
0.0817 |
ELECTRICAL CHARACTERISTICS
Duty Cycle and Current Carrying Capacity
The current carrying capacity of a welding cable depends on the length of the duty cycle. The duty cycle is the length of time during which a loaded current passes through the cable over an operation period of 5 minutes, expressed as a percentage of that period. For example, if the current is flowing for the whole 5 minutes the duty cycle is 100%, and if the current is flowing for 1 minute the duty cycle is 20%.
As conductor temperature varies according to the time in use as well as current, ratings shown are given as a guide.
The permissible loading of the cable for duty cycles other than those shown in the table can be calculated using the following formula:
I = I100 x √100/F
Where:
I: is the maximum permissible loading current for the required duty cycle.
I100 : is the maximum permissible loading current for a duty cycle of 100%.
F : is the required duty cycle calculated as a percentage of the 5 minute operation period.
Typical guidance values for different welding processes are as follows:
Fully automatic welding 100%
Semi-automatic welding 65 - 85%
Manual welding 30 - 60%
Very infrequent or occasional welding 20%
Current Carrying Capacity
NOMINAL CROSS SECTIONAL AREA
mm2 |
CURRENT RATING FOR SINGLE CYCLE OPERATION OVER A MAXIMUM PERIOD OF 5 MINUTES
Amps |
| 100% |
85% |
60% |
35% |
16
25
35
50
70
95
120
150
185
240 |
135
180
225
285
355
430
500
580
665
780 |
145
195
245
305
385
470
540
630
720
850 |
175
230
290
365
460
560
650
750
860
975 |
230
300
375
480
600
730
850
980
1120
1250 |
DE-RATING FACTORS
AMBIENT TEMPERATURE
DE-RATING FACTOR |
25°C
1.0 |
30°C
0.96 |
35°C
0.91 |
40°C
0.87 |
45°C
0.82 |
