Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable
Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable
Contact Now

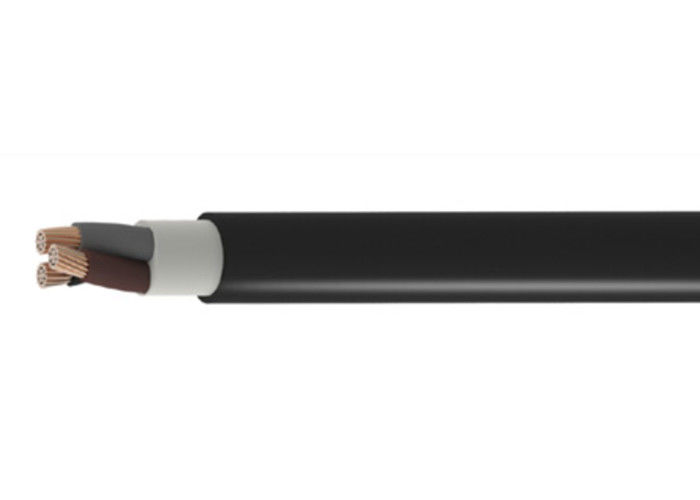

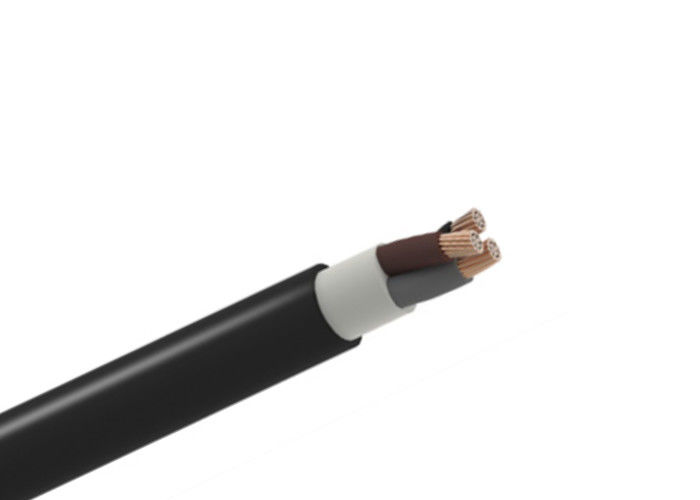

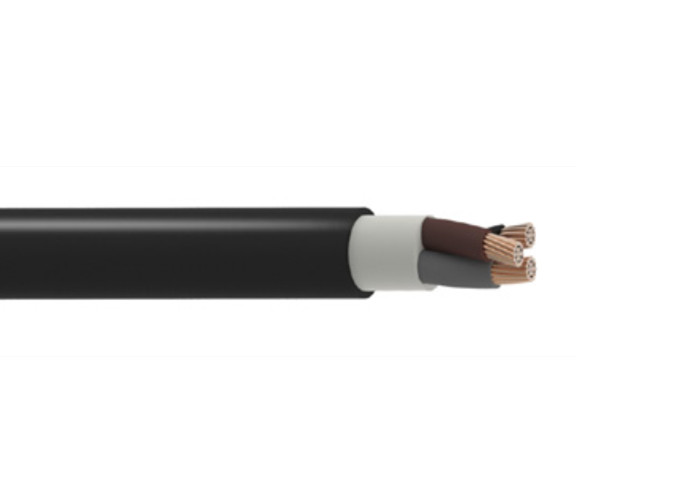

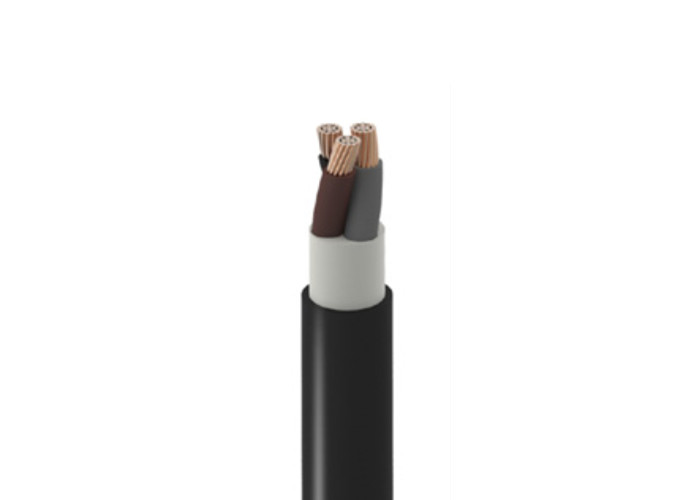

Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable

Minimum Order Quantity : 1000meter Packaging Details : iron-wooden drum , wooden drum
Place of Origin: Henan,china Brand Name: CN CABLE
Certification: NF C 32-321, C32-321/A1, BS EN/IEC 60502-1, BS EN/IEC 60332-1 Model Number: XLPE CABLE

Detail Information
Conductor: 1.5mm2 To 4mm2: Class 1 Solid Copper Conductor* 6mm2 And Above: Class 2 Stranded Copper Conductor Insulation: XLPE
Bedding: PVC Sheath: Flame Retardant PVC
Voltage Rating: 0.6/1kv
High Light:

xlpe copper cable

,

xlpe armoured cable

Product Description

Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable



APPLICATION

These power and control cables are used for electricity supply in low voltage installation systems. They are well adapted to underground use in industrial applications with an additional mechanical protection. These cables can be fxed on cable trays, within conduits or fixed to walls.

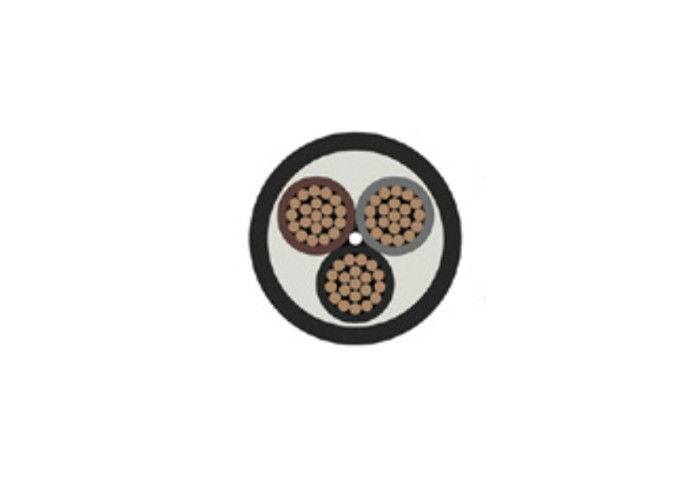

CONSTRUCTION
Conductor
1.5mm2 to 4mm2: Class 1 solid copper conductor*
6mm2 and above: Class 2 stranded copper conductor
Insulation
XLPE (Cross-Linked Polyethylene)
Bedding
PVC (Polyvinyl Chloride)
Sheath
Flame Retardant PVC (Polyvinyl Chloride)
Note
Class 2 stranded conductor available for these sizes on request

CHARACTERISTICS
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
During installation -10°C to +50ºC
Fixed installation: -25°C to +90°C
Minimum Bending Radius
6 x overall diameter
Sheath Color
Black
Core Identification
1 core: Black
2 core: Blue Brown
3 core: Blue Brown Black (1.5mm2 and 2.5mm2 only)
3 core: Brown Black Grey
3 core including earth: Brown Blue Green/Yellow
4 core: Blue Brown Black Grey
4 core including earth: Blue Brown Black
Green/Yellow
5 core: Blue Brown Black Grey Black
5 core including earth: Blue Brown Black Grey
Green/Yellow
7 core and higher:
Black cores with White numbers + Green/Yellow



DIMENSIONS

NO. OF
CORES		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL THICKNESS
OF INSULATION
mm		 NOMINAL THICKNESS
OF SHEATH
mm		 NOMINAL
OVERALL
DIAMETER
mm		 NOMINAL
WEIGHT
kg/km
U-1000 R2V - 1 Core
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1		 1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500
630		 0.7
0.7
0.7
0.7
0.7
0.7
0.9
0.9
1
1.1
1.1
1.2
1.4
1.6
1.7
1.8
2
2.2
2.4		 1.1
1.1
1.1
1.1
1.1
1.4
1.4
1.4
1.4
1.4
1.5
1.5
1.6
1.6
1.7
1.8
1.9
2
2.3		 6.6
7
7.6
8.2
9.2
10.5
12.5
13.5
15
17
19
21
23
25.5
28.5
31
34.2
38
44		 45
55
75
100
140
205
315
400
530
725
985
1260
1520
1940
2310
3200
3931
5020
5324
U-1000 R2V - 2 Core
2
2
2
2
2
2
2
2		 1.5
2.5
4
6
10
16
25
35		 0.7
0.7
0.7
0.7
0.7
0.7
0.9
0.9		 1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8		 10.5
11.5
13
14
16
18.5
22
24.5		 115
145
195
265
390
560
850
1080
U-1000 R2V - 3 Core
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3		 1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300		 0.7
0.7
0.7
0.7
0.7
0.7
0.9
0.9
1
1.1
1.1
1.2
1.4
1.6
1.7
1.8		 1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.9
2
2.1
2.3
2.4
2.6
2.8		 11
12.5
13.5
15
17
19.5
23.5
26
29
34
38.5
42.5
47.5
55
59.5
66		 130
170
230
325
485
705
1080
1390
1840
2540
3430
4440
5380
6920
8420
11300
U-1000 R2V - 3 Core with Smaller Earth Conductor
3+E
3+E
3+E
3+E
3+E
3+E
3+E		 50 + 1 x 35
70 + 1 x 50
95 + 1 x 50
120 + 1 x 70
150 + 1 x 70
185 + 1 x 70
240 + 1 x 95		 1
1.1
1.1
1.2
1.4
1.6
1.7		 1.8
2
2.1
2.2
2.3
2.5
2.7		 31.1
36.2
40.6
45.4
49.5
54.4
61.5		 2160
3010
3960
5160
6150
7780
9550
U-1000 R2V - 4 Core
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4		 1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300		 0.7
0.7
0.7
0.7
0.7
0.7
0.9
0.9
1
1.1
1.1
1.2
1.4
1.6
1.7
1.8		 1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.9
2
2.1
2.3
2.4
2.6
2.8
3		 12
13
14.5
16
18.5
21
25.5
28.5
32.5
37.5
42.5
47.5
52.5
59
66.5
75.5		 150
205
280
390
590
870
1365
1760
2460
3442
4690
6119
7405
8820
11865
14716
U-1000 R2V - 5 Core
5
5
5
5
5
5
5
5
5		 1.5
2.5
10
16
25
35
50
70
95		 0.7
0.7
0.7
0.7
0.9
0.9
1
1.1
1.1		 1.8
1.8
1.8
1.8
1.8
1.8
1.9
2
2.1		 12.5
13.5
19
21.5
27
34
36
43
47		 225
290
775
1135
1780
2069
2755
3925
5336
U-1000 R2V - 7 Core
7
7
12
12
19
19
24
24
27
27
37
37		 1.5
2.5
1.5
2.5
1.5
2.5
1.5
2.5
1.5
2.5
1.5
2.5		 0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7
0.7		 1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8
1.8		 13.5
15
17
19.5
19.5
22.5
22.5
22.5
23.5
26
25.5
29.5		 220
310
370
525
560
745
745
710
1000
1000
972
1350


ELECTRICAL CHARACTERISTICS

NOMINAL CROSS
SECTIONAL AREA
mm2		 1 CORE 2 CORE 5 CORE
Air
Amps		 Ground
Amps		 Air
Amps		 Ground
Amps		 Air
Amps		 Ground
Amps
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500
650		 24
33
45
58
80
107
138
169
207
268
328
382
441
506
599
693
-
-
-		 31
41
59
74
101
128
144
174
206
254
301
345
387
454
501
565
639
713
785		 26
36
49
63
89
115
149
185
-
-
-
-
-
-
-
-
-
-
-		 37
48
63
80
104
136
173
208
-
-
-
-
-
-
-
-
-
-
-		 23
31
42
54
75
100
127
158
192
246
298
346
395
430
538
621
-
-
-		 31
41
53
66
87
113
144
174
206
254
301
343
395
454
301
565
-
-
-


















































Voltage Drop

NOMINAL CROSS
SECTIONAL AREA
mm2
 		 SINGLE CORE
AC SINGLE-PHASE		 2 CORE
AC SINGLE-PHASE		 3 CORE
AC SINGLE-PHASE
cos Ø 1
V/A km		 cos Ø 0.8
V/A km		 cos Ø 1
V/A km		 cos Ø 0.8
V/A km		 cos Ø 1
V/A km		 cos Ø 0.8
V/A km
1
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300		 44.2
29.7
17.8
11.1
7.41
4.47
2.82
1.78
1.28
0.947
0.656
0.473
0.375
0.306
0.246
0.189
0.152		 35.6
23.9
14.4
9.08
6.10
3.72
2.39
1.55
1.15
0.878
0.641
0.434
0.413
0.356
0.306
0.259
0.229		 45
30.2
18.2
11.4
7.56
4.55
2.87
1.81
1.31
0.967
0.699
0.484
0.383
0.314
0.251
0.193
0.156		 36.1
24.3
14.7
9.21
6.16
3.73
2.36
1.55
1.14
0.966
0.624
0.476
0.394
0.341
0.289
0.245
0.215		 39
26.1
15.7
9.85
6.54
3.94
2.48
1.57
1.13
0.838
0.579
0.419
0.332
0.272
0.217
0.167
0.135		 31.3
21
12.7
7.98
5.34
3.24
2.07
1.34
0.988
0.750
0.541
0.412
0.342
0.295
0.250
0.212
0.186
