Tunneling Special Cables Flexible Cable Rubber Insulation For Energy Supply
Tunneling Special Cables Flexible Cable Rubber Insulation For Energy Supply Tunneling Special Cables Flexible Cable Rubber Insulation For Energy Supply Tunneling Special Cables Flexible Cable Rubber Insulation For Energy Supply Tunneling Special Cables Flexible Cable Rubber Insulation For Energy Supply Tunneling Special Cables Flexible Cable Rubber Insulation For Energy Supply
Contact Now

Tunneling Special Cables Flexible Cable Rubber Insulation For Energy Supply

Minimum Order Quantity : 1000meter Packaging Details : Iron-wooden drum, wooden drum
Place of Origin: Henan, China Brand Name: CN CABLE
Certification: Generally to VDE 0250 Part 605, VDE 0295, BS EN/IEC 60332-1-2, BS EN/IEC 60811-2-1, IEC 60754-1, IEC 60754-2 Model Number: RUBBER CABLE

Detail Information
Phase Conductor: Class 5 Copper Conductor Insulation: Rubber
Semi-Conductive Layers: Semi-conductive Tape Over The Conductor And Inner And Outer Semi-conductive Rubber Layer On The Insulation Protective Earth Conductor: Individual Copper Screen
Control Conductor: Class 5 Tinned Copper Central Filler: Rubber Compound On A Textile Polyester Support
First Inner Sheath: LSZH Monitoring Conductor: Copper Wire Screen Over The Frst Inner Sheath
Second Inner Sheath: LSZH Armour: Steel Wire Braid Over The Second Inner Sheath
Outer Sheath: LSZH
High Light:

custom control cables

,

copper welding cable

,

special power cable

Product Description

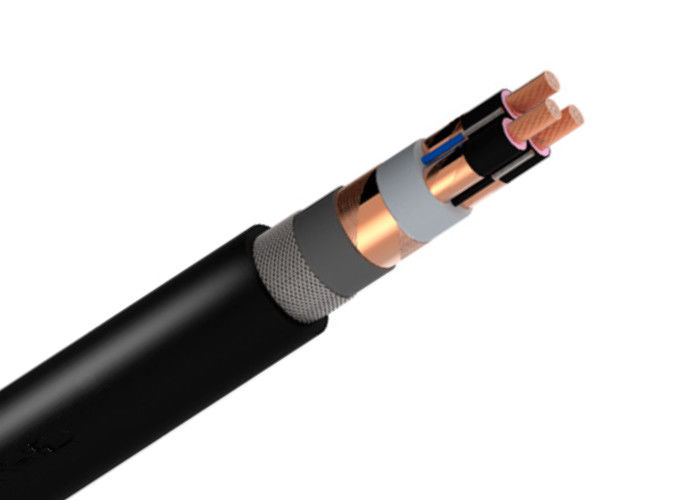

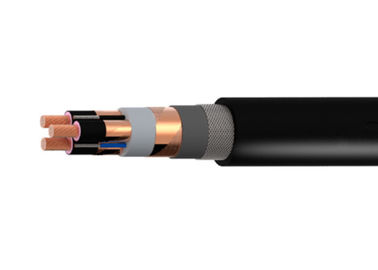

3GHSSHCH 3.6/6kV and 6/10kV flexible cable for energy supply to MV equipment in tunneling

APPLICATION
Flexible cable for energy supply to MV equipment in tunnelling and underground mining applications. Low smoke zero halogen (LSZH) sheathed version. Suitable for indoor and outdoor applications.

CONSTRUCTION
Phase Conductor
Class 5 copper conductor according to VDE 0295
(IEC 60228)
Insulation
Rubber compound conductor Type 3GI3 according to
VDE 0207 Part 20
Semi-Conductive Layers
Semi-conductive tape over the conductor and inner and outer
semi-conductive rubber layer on the insulation
Protective Earth Conductor
Individual copper screen
Control Conductor
Class 5 tinned copper according to VDE 0295 (IEC 60228)
Central Filler
Rubber compound on a textile polyester support
First Inner Sheath
LSZH (Low Smoke Zero Halogen) Type M1 according to
EN 50363
Monitoring Conductor
Copper wire screen over the frst inner sheath
Second Inner Sheath
LSZH (Low Smoke Zero Halogen) Type M1 according to EN
50363
Armour
Steel wire braid over the second inner sheath
Outer Sheath
LSZH (Low Smoke Zero Halogen) Type M1 according to EN
50363
CHARACTERISTICS
Voltage Rating (Uo/U)
3.6/6kV
6/10kV
Test Voltage
3.6/6kV: 11kV
6/10kV: 17kV
Maximum Short Circuit Temperature
+250°C
Ambient Temperature
Fixed: -40°C to +80°C
Flexed: +5°C to +80°C
Minimum Bending Radius
Fixed: 6 x overall diameter
Flexed: 10 x overall diameter
Maximum Tensile Load*
15N/mm2
Sheath Colour
Black

DIMENSIONS

VOLTAGE
kV		NO. OF CORES
(PHASE + EARTH
+ CONTROL+ÜL)		NOMINAL CROSS SECTIONAL AREA
mm²		CONDUCTOR DIAMETER
mm		MINIMUM OVERALL DIAMETER
mm		MAXIMUM
OVERALL
DIAMETER
mm		NOMINAL
WEIGHT
kg/km		MAXIMUM
TENSILE
LOAD
N
Phase
Conductor		Earth
Conductor		Control
Conductor
3.6/6
3.6/6
3.6/6
3.6/6
3.6/6
3.6/6
3.6/6
6/10
6/10
6/10
6/10
6/10
6/10
6/10		3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL
3+3+3+ÜL		25
35
50
70
95
120
150
25
35
50
70
95
120
150		25/3E
25/3E
25/3E
35/3E
50/3E
70/3E
70/3E
25/3E
25/3E
25/3E
35/3E
50/3E
70/3E
70/3E		2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST
2.5ST		6.1
7.2
8.9
10.6
12.3
13.8
15.5
6.1
7.2
8.9
10.6
12.3
13.8
15.5		47.2
49
52.5
56.1
60.3
63.8
67.2
47.2
49
52.5
56.1
60.3
63.8
67.2		52.1
54
57.8
61.6
66.2
70
73.7
52.7
54.6
58.4
62.2
66.8
70.7
74.4		4120
4570
5300
6370
7600
8990
10130
4160
4610
5340
6410
7640
9030
10170		1125
1575
2250
3150
4275
5400
6750
1125
1575
2250
3150
4275
5400
6750






















ELECTRICAL CHARACTERISTICS
Current Carrying Capacity

NOMINAL CROSS
SECTIONAL AREA
mm²		LAYING ON
THE FLOOR
Amps
 		FREE IN
AIR
Amps
 		REELED
1 Layer
Amps		2 Layer
Amps		3 Layer
Amps		4 Layer
Amps		5 Layer
Amps		6 Layer
Amps		7 Layer
Amps
25
35
50
70
95
120
150		131
162
202
250
301
352
404		138
170
212
263
316
370
424		105
130
162
200
241
282
323		80
99
123
153
184
215
246		64
79
99
123
147
172
198		55
68
85
105
126
148
170		50
62
77
95
114
134
154		35
44
55
68
81
95
109		29
36
44
55
66
77
89


Voltage Drop

NOMINAL CROSS SECTIONAL AREA
mm²		POWER FACTOR
0.70.80.91.0
25
35
50
70
95
120
150		1.29
0.95
0.69
0.51
0.41
0.34
0.29		1.45
1.06
0.77
0.56
0.45
0.36
0.31		1.6
1.16
0.83
0.6
0.47
0.38
0.32		1.71
1.23
0.87
0.61
0.47
0.36
0.29

DE-RATING FACTORS

AMBIENT TEMPERATURE10ºC15ºC20ºC25ºC30ºC35ºC40ºC45ºC50ºC55ºC60ºC65ºC70ºC75ºC80ºC
DE-RATING FACTOR1.151.121.081.041.000.960.910.870.820.760.710.650.580.500.41
