Stranded Bare Copper Special Cables PVC Insulation Remote Control CERT Cables

Minimum Order Quantity : 1000meters Packaging Details : roll or drum
Delivery Time : 20days after payment Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN cable
Certification: CE Model Number: control cable

Detail Information

Conductor:: Stranded Bare Copper Insulation: (PVC)
Assembling:: An Inner Sheath Acting As A Filler With Pratically Zero Thickness Or Assembling Tape Inner Sheath: PVC
Screen: Corrugated Copper Tape Outer Sheath: PVC
High Light:

copper welding cable

,

special power cable

Product Description

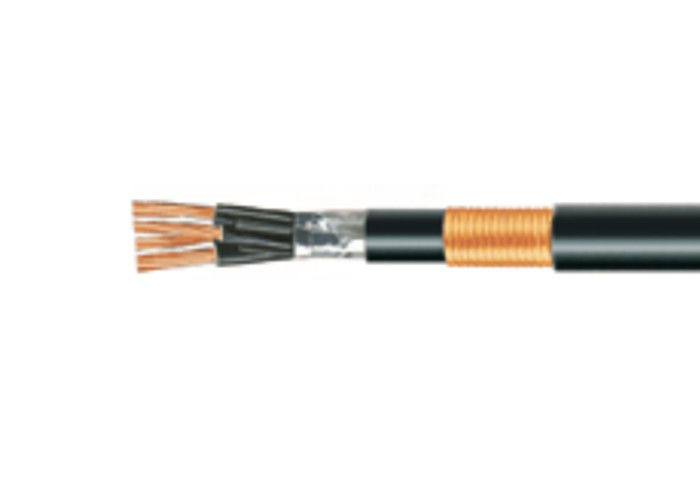

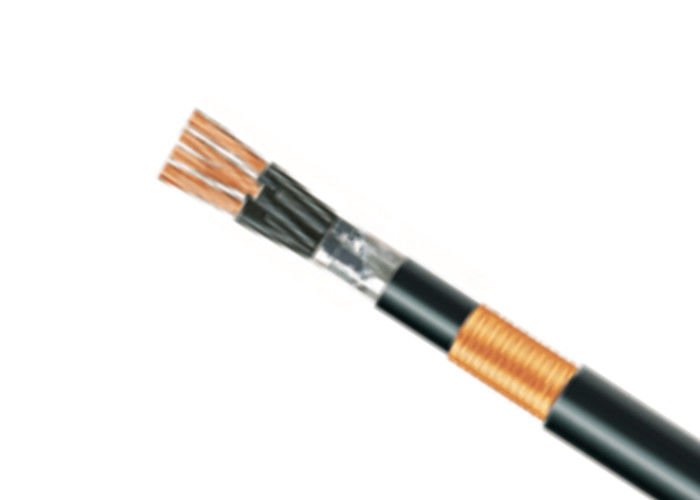

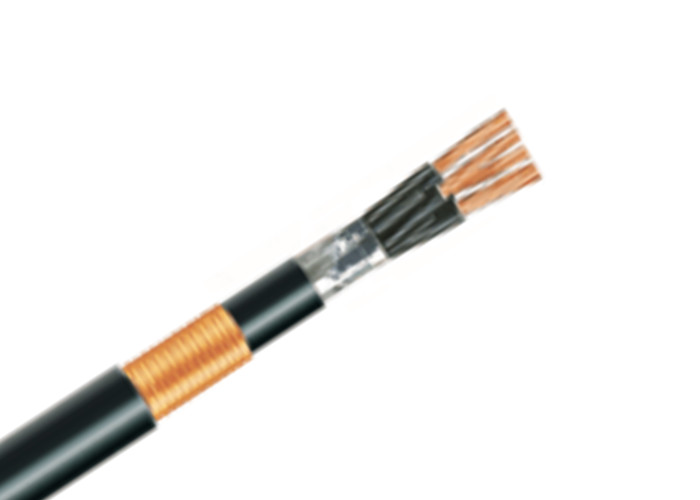

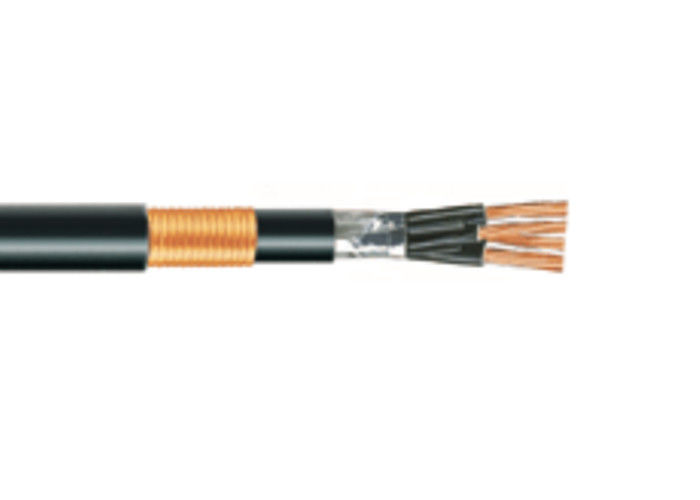

Remote control CERT cables HN 33-S-34

Application
These cables are used in transformer stations. They are protected against electromagnetic interferences.
Conductor:
Stranded bare copper (class 2) For 3x95+35 (3x95 : sector shape class 2 ; 35 : round shape class 2)
Insulation:
Polyvinyl chloride (PVC)
Assembling:
An inner sheath acting as a filler with pratically zero thickness or assembling tape
Inner sheath:
Polyvinyl chloride (PVC)
Screen:
Corrugated copper tape
Outer sheath:
Polyvinyl chloride (PVC)
Colour : black
Characteristics
Construction characteristics
Conductor material Copper
Insulation PVC
Inner sheath PVC
Screen Corrugated copper screen
Outer sheath PVC
Electrical characteristics
Rated Voltage Uo/U (Um) 0.6/1 kV
Mechanical characteristics
Mechanical resistance to impacts Medium
Usage characteristics
Fire retardant C1, NF C 32-070
Operating temperature, range -20 .. 60 °C
Max. conductor temperature in service 70 °C
Electro magnetic interference resistance Yes


2cores
Name

Cross-section

mm2

Min. outer diam.

mm

Max. outer diam.

mm

Approx. weight

Kg/km

2*4415.917.6435
2*6616.418.1482
2*101018.520.4610
2*161619.921.9782
2*252524.226.71131
4cores
4*1.51.514.215.7354
4*4418.220.1545
4*6618.820.8633
4*101021.323.5889
4*161623.626.01170
3*25+162526.829.51543
3*50+255032.936.32544
3*95+359539.043.13947
7cores
7*1.51.516.418.1440
7*4419.621.7688
7*6621.924.2889
8cores
8*161630.433.61950
10cores
10*1.51.518.920.9549
10*4424.727.3988
10*6627.230.01237
14cores
14*1.51.520.923.1690
14*4426.629.31201
14*6629.632.61582
19cores
19*1.51.522.725.1835
19*4429.933.01571
19*6632.736.111999
27cores
27*1.51.526.228.91083
37cores
37*1.51.528.831.81351
