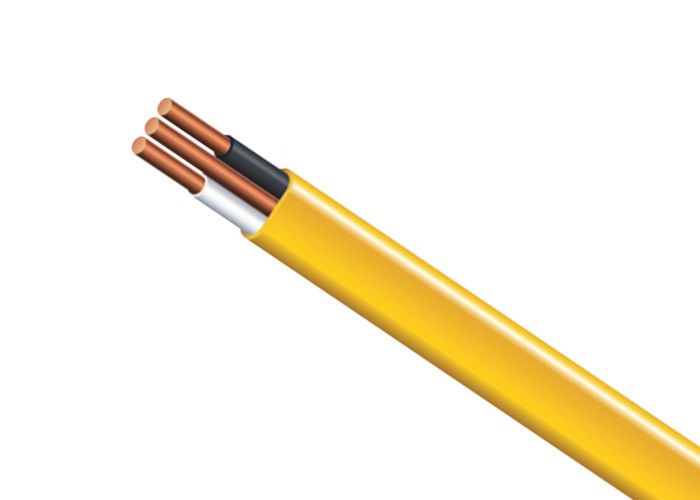

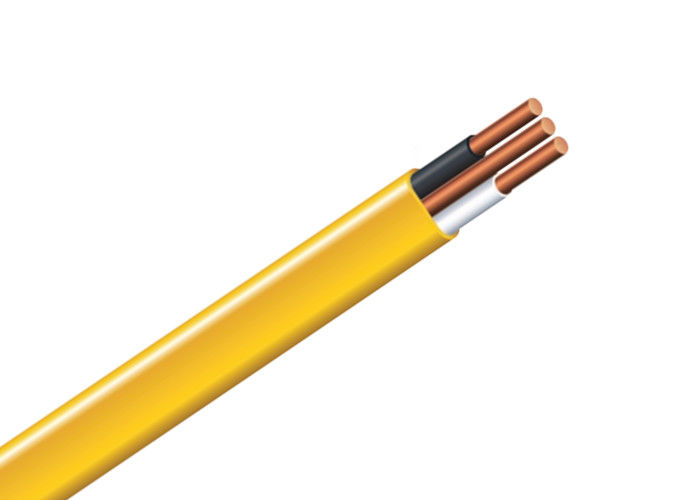

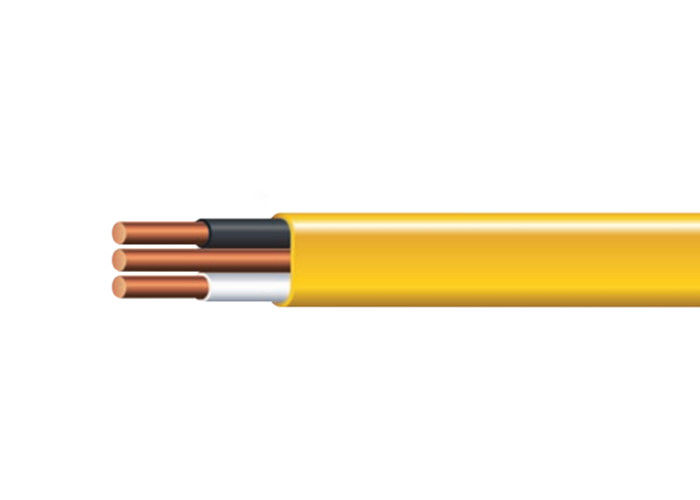

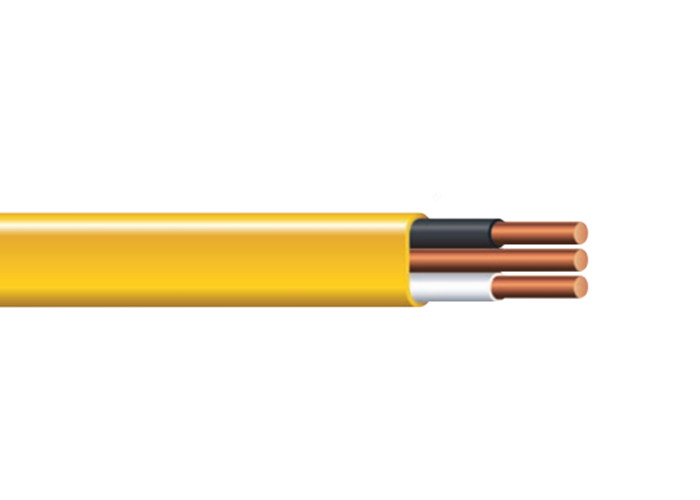

Unique SIM Jacket Construction Special Power Cable With Bare Grounding Conductor

Minimum Order Quantity : 1000meters Packaging Details : drum
Delivery Time : 20days after payment Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: POWER CABLE

Detail Information

Conductor: Copper Insulation: PVC
High Light:

copper welding cable

,

special power cable

Product Description

Used for both exposed work in dry locations or concealed work in dry or damp locations power cable



Applications:

Cables may be used for both exposed work in dry locations or concealed work in dry or damp locations
• The maximum allowable conductor temperature is 90°C
• The minimum recommended installation temperature is minus 25°C for two-conductor cables, and minus 10°C for three-conductor cables (with suitable handling procedures)
• Material should be properly stored above 0°C for 24 hours prior to installation
• The maximum voltage rating for all intended applications is 300 volts



Construction:

Cables are available as two- or three-conductor cables, with bare grounding conductor

• The construction is manufactured using annealed (soft) copper conductors—compressed stranding for the stranded conductors; a 90°C rated thermoplastic polyvinyl chloride (PVC) insulation and a nylon jacket for the individual conductors; and a PVC jacket surrounding the overall construction

• The cable jacket is color coded for quick size identification; White - 14 AWG, Yellow - 12 AWG, Orange - 10 AWG, and White - 8 AWG and 6 AWG

• For two-conductor cable, one conductor has white insulation and the second conductor has black insulation

• For the three-conductor cable, one conductor has white insulation, one conductor has black insulation, and the third conductor has red insulation

• A blue overall jacket is available with two-conductor cable size 14 AWG

• A red overall jacket is available with two-conductor cables—sizes 14 AWG, 12 AWG,

10 AWG, and 8 AWG: phase conductors will be red and black

• Unique SIM Jacket construction allows for 50% reduction in pulling force resulting in easier installation, easier stripping, reduced burn-thru, and tear resistance



Unique SIM Jacket Construction Special Power Cable With Bare Grounding Conductor 0



Conductor Ground Wire Approx. Jacket Thickness Approx. Cable Dimensions Approx. Weight

Allowable Ampacities

(Ams)

30℃

Ambient

Size

(AWG)

No. No. of Strands Insulation Thickness

Size

(AWG)

No. of Strands
mm Inches mm Inches mm Inches kg/km Ibs/1000ft
2 Conductor
14 2 1 0.86 0.034 14 1 0.76 0.030 9.86*4.88 0.388*0.192 101 58 15
12 2 1 0.86 0.034 14 1 0.76 0.030 10.71*5.30 0.422*0.209 129 86 20
10 2 1 0.86 0.034 12 1 0.76 0.030 12.21*5.84 0.481*0.230 182 122 30
8 2 7 1.02 0.040 10 1 1.14 0.045 16.15*7.92 0.636*0.312 310 208 45
6 2 7 1.30 0.051 8 7 1.14 0.045 20.12*9.40 0.792*0.370 468 315 65
3 Conductor
14 3 1 0.86 0.034 14 1 0.76 0.030 8.77 0.345 128 86 15
12 3 1 0.86 0.034 14 1 0.76 0.030 9.69 0.381 169 114 20
10 3 1 0.86 0.034 12 1 0.76 0.030 10.85 0.427 242 163 30
8 3 7 1.02 0.040 10 1 1.14 0.045 14.47 0.570 408 275 45
6 3 7 1.30 0.051 8 7 1.14 0.045 17.65 0.695 627 421 65
3 3 7 1.30 0.051 6 7 2.03 0.080 23.48 0.925 1189 799 105
