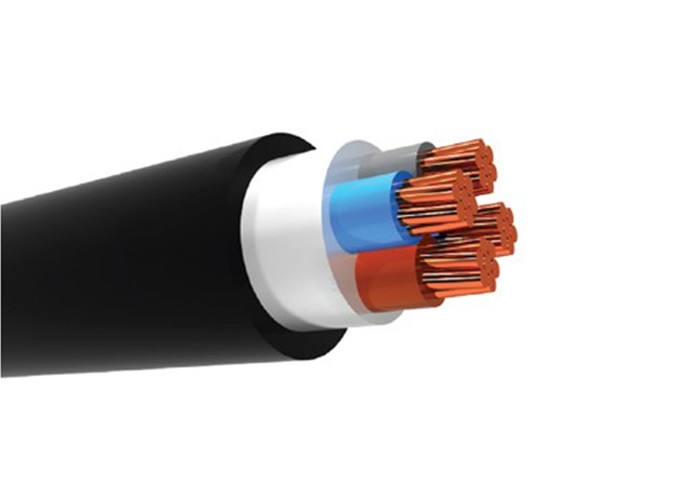

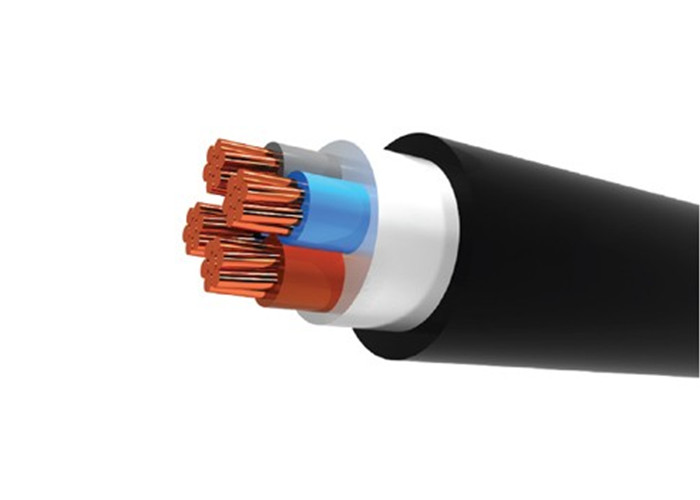

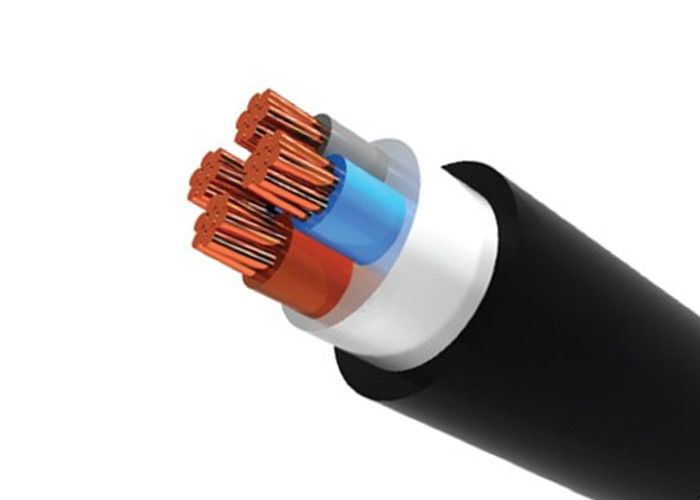

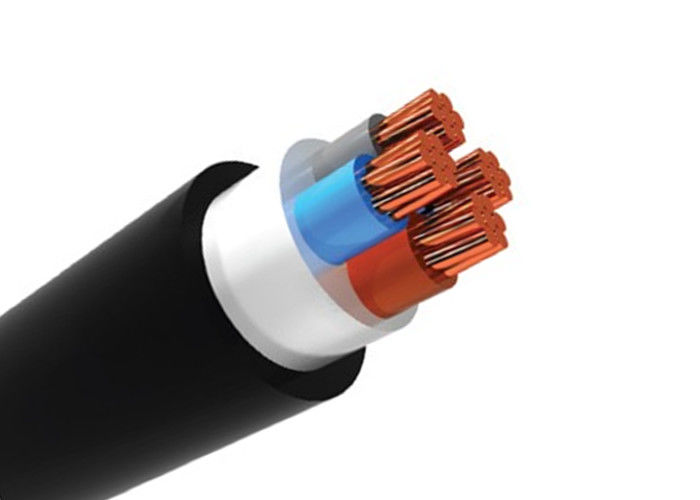

PVC Insulation LV Power Cable Low Voltage Electrical Cable VDE Certification
PVC Insulation LV Power Cable Low Voltage Electrical Cable VDE Certification PVC Insulation LV Power Cable Low Voltage Electrical Cable VDE Certification PVC Insulation LV Power Cable Low Voltage Electrical Cable VDE Certification PVC Insulation LV Power Cable Low Voltage Electrical Cable VDE Certification
Contact Now

PVC Insulation LV Power Cable Low Voltage Electrical Cable VDE Certification

Minimum Order Quantity : 1000m Packaging Details : drum
Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: VDE Model Number: NYBY

Detail Information
Conductor: Solid Or Stranded Copper Insulation: PVC
Filler: PVC Armoured: Galvanized Double Steel Tape
Outer Sheath: PVC Name: Low Voltage Electrical Cable
High Light:

lv armoured cable

,

low voltage electrical cable

Product Description

YVZ4V 0.6/1 kV TS IEC 60502-1 NYBY 0.6/1 kV VDE 0271





Structure

1. Solid or stranded copper conductor

2. PVC insulation

3. PVC Filler

4. Galvanized double steel tape

5. PVC outer sheath



Technical Data

Permissible operating temperature:70°

Max. short circuit temp.:160°C (+≥ 5 sec.)

Test voltage (AC): 3,5 kV

Installation temperature Min. : -5 °C
PVC Insulation LV Power Cable Low Voltage Electrical Cable VDE Certification 0

Rated Cross
Section		 Overall Diameter
Of Cable		 Current Carrying
Capacity		 Conductor DC
Resistance at (20°C)		 Net
Weight
mm2 mm Air (A) Ground (A) Ohm/Km Kg/Km
3 x 10 rm 19.00 60 68 1.830 780.83
3 x 16 rm 21.10 79 88 1.150 1,029.99
3 x 25 rm 24.40 105 114 0.727 1,442.83
3 x 35 rm 27.00 129 137 0.524 1,839.89
3 x 50 rm 30.60 162 168 0.387 2,404.06
3 x 70 rm 34.70 203 206 0.268 3,222.02
3 x 95 rm 41.00 250 247 0.193 4,790.05
3 x 120 rm 44.60 289 281 0.153 5,777.67
3 x 150 rm 48.90 330 315 0.124 6,964.74
3 x 185 rm 53.90 381 356 0.099 8,489.15
3 x 240 rm 60.70 451 412 0.075 10,823.50
3 x 300 rm 66.90 517 464 0.060 13,245.84
3 x 400 rm 74.70 594 524 0.047 16,675.35
3 x 16 + 10 rm 22.30 68 77 1.830 1,173.62
3 x 25 + 16 rm 25.60 90 99 1.150 1,636.66
3 x 35 + 16 rm 27.80 121 128 0.727 2,008.05
3 x 50 + 25 rm 32.20 149 154 0.524 2,717.84
3 x 70 + 35 rm 37.40 173 173 0.387 4,047.75
3 x 95 + 50 rm 42.80 215 212 0.268 5,335.24
3 x 120 + 70 rm 46.90 266 255 0.193 6,553.74
3 x 150 + 70 rm 50.30 552 479 0.060 7,630.57
3 x 185 + 95 rm 56.50 643 545 0.047 9,549.33
3 x 240 + 120 rm 62.60 357 327 0.124 11,968.84
3 x 300 + 150 rm 69.00 405 366 0.099 14,652.76
3 x 400 + 185 rm 77.10 482 425 0.075 18,427.88
4 x 10 rm 49.30 68 77 1.830 7,251.23
4 x 16 rm 53.80 90 99 1.150 8,722.55
4 x 25 rm 59.90 121 128 0.727 10,752.19
4 x 35 rm 67.10 149 154 0.524 13,662.05
4 x 50 rm 74.40 173 173 0.387 16,850.27
4 x 70 rm 83.90 215 212 0.268 22,173.06
4 x 95 rm 24.30 266 255 0.193 1,385.12
4 x 120 rm 28.20 308 289 0.153 2,009.48
4 x 150 rm 30.80 357 327 0.124 2,499.05
4 x 185 rm 37.10 405 366 0.099 3,841.19
4 x 240 rm 41.30 482 425 0.075 4,988.84
4 x 300 rm 47.80 552 479 0.060 6,673.75
4 x 400 rm 52.00 643 545 0.047 8,124.30
4 x 10 + 6 rm 56.50 68 77 1.830 9,630.55
4 x 16 + 10 rm 62.90 90 99 1.150 11,935.91
4 x 25 + 16 rm 70.10 121 128 0.727 15,071.75
4 x 35 + 16 rm 77.70 149 154 0.524 18,579.33
4 x 50 + 25 rm 87.60 173 173 0.387 24,370.77
4 x 70 + 35 rm 22.10 215 212 0.268 1,105.47
4 x 95 + 50 rm 24.80 266 255 0.193 1,496.85
4 x 120 + 70 rm 29.10 308 289 0.153 2,148.28
4 x 150 + 70 rm 32.80 357 327 0.124 2,813.58
4 x 185 + 95 rm 38.50 405 366 0.099 4,162.81
4 x 240 + 120 rm 43.30 482 425 0.075 5,477.39
4 x 300 + 150 rm 50.00 552 479 0.060 7,318.25
4 x 400 + 185 rm 54.20 643 545 0.047 8,822.18
5 x 10 rm 59.60 71 78 1.830 10,709.37
5 x 16 rm 66.00 94 101 1.150 13,139.13
5 x 25 rm 74.30 126 131 0.727 16,801.92
5 x 35 rm 83.40 155 157 0.524 21,707.54
5 x 50 rm 92.60 189 185 0.387 27,126.59
5 x 70 rm 43.30 215 212 0.268 5,496.65
5 x 95 rm 50.00 266 255 0.193 7,326.10
5 x 120 rm 54.40 308 289 0.153 8,907.48
5 x 150 rm 59.80 357 327 0.124 10,811.86
5 x 185 rm 66.20 405 366 0.099 13,272.17
5 x 240 rm 74.50 482 425 0.075 16,935.33
5 x 300 rm 82.40 552 479 0.060 20,850.46
5 x 400 rm 92.00 643 545 0.047 26,398.20
