Precision Flexible Armored Cable Xlpe Armoured Cable With High Performance
Precision Flexible Armored Cable Xlpe Armoured Cable With High Performance Precision Flexible Armored Cable Xlpe Armoured Cable With High Performance Precision Flexible Armored Cable Xlpe Armoured Cable With High Performance Precision Flexible Armored Cable Xlpe Armoured Cable With High Performance Precision Flexible Armored Cable Xlpe Armoured Cable With High Performance
Contact Now

Precision Flexible Armored Cable Xlpe Armoured Cable With High Performance

Minimum Order Quantity : 1000meter Price : us$0.1-us$5per meter
Packaging Details : drum Delivery Time : 30days after payment
Payment Terms : L/C, T/T Supply Ability : 1000000meters per month
Place of Origin: Henan Brand Name: CN CABLE
Model Number: NA2XS(F)2Y

Detail Information
Conductor: Stranded Aluminum Screen: Outer Semi Conductive Layer
Insulation: XPLE Tape: Swellable Tape
Matel Screen: Copper Wire Screen Outer Sheath: PE
High Light:

armoured electrical cable

,

electrical power cable

Product Description

NA2XS(F)2Y 20.3/ 35 kV TSEK

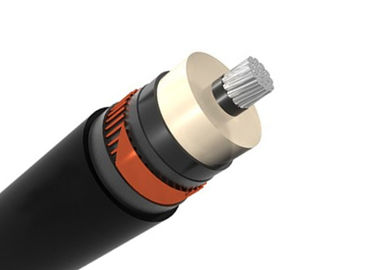

Structure

1. Stranded Aluminum conductor

2. Inner semi conductive layer

3. XPLE insulation

4. Outer semi conductive layer

5. Semi conductive tape

6. Copper wire screen

7. Swellable tape

8. PE outer sheath



Rated Cross
Section		 Overall Diameter
Of Cable		 Current Carrying
Capacity		 Operating
Inductance		 Operating
Capacity		 Conductor DC
Resistance at (20°C)		 Net
Weight
mm2 mm Air (A) Ground (A) MH/Km µF/km Ohm/Km Kg/Km
1x35/16 35.50 157 134 0.69 0.11 0.868 1040
1x50/16 36.50 189 195 0.66 0.12 0.641 1110
1x70/16 38.00 270 237 0.63 0.13 0.443 1240
1x95/16 40.00 328 282 0.61 0.14 0.320 1375
1x120/16 41.00 378 320 0.59 0.15 0.253 1495
1x150/25 43.00 425 353 0.58 0.16 0.206 1715
1x185/25 44.50 485 396 0.57 0.18 0.1640 1875
1x240/25 47.00 573 457 0.55 0.19 0.1250 2125
1x300/25 49.00 652 511 0.54 0.21 0.1000 2330
1x400/35 52.00 740 566 0.53 0.23 0.0778 2725
1x500/35 54.50 838 630 0.51 0.25 0.0605 3160
1x630/35 59.00 953 719 0.50 0.29 0.0469 3675
