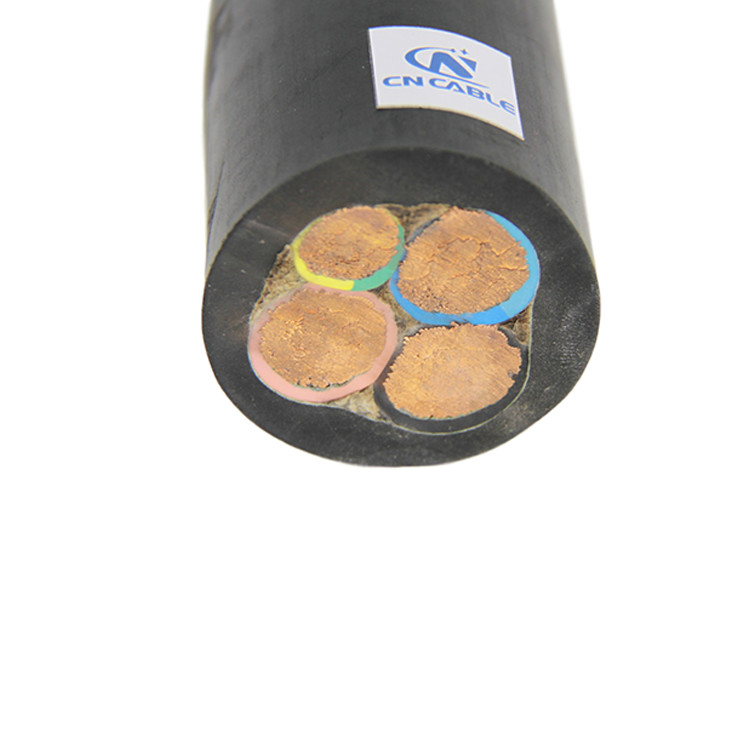

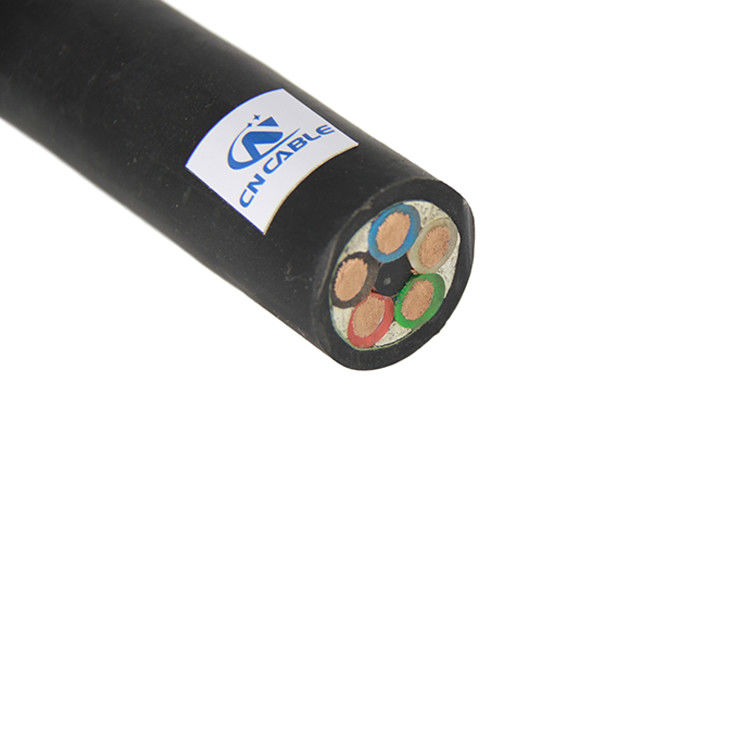

Oil Resistance Copper Conductor Flexible Rubber Cable
Oil Resistance Copper Conductor Flexible Rubber Cable Oil Resistance Copper Conductor Flexible Rubber Cable
Contact Now

Oil Resistance Copper Conductor Flexible Rubber Cable

Minimum Order Quantity : 200meters Packaging Details : Iron-wooden drum
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE, ISO9001 Model Number: H07BN4-F

Detail Information
Conductors:: Bare Copper Conductor Insulation: EPR Rubber
Outer Jacket: Polychloroprene Rubber Voltage: 450/750 Volts
Conductor Type: Class5 Feature: Oil Resistance, Temperature Resistance, Flame Retardant
High Light:

Copper Conductor Flexible Rubber Cable

,

Flexible Polychloroprene Rubber Cable

,

EPR Insulation Flexible Rubber Cable

Product Description

450/750V H07BN4-F WIND90 Copper Conductor Rubber Cable Flexible Cable

Product Description



Application

These flexible cables are made with synthetic rubbers having an excellent temperature resistance and can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under medium mechanical stress, for example power supply to equipment in industrial plants, large size boilers, heating plates, portable lamps, electrical tools such as drilling machines, disk saws, portable engines and machines, building and farming equipments etc.
These flexible cables are also suitable for stationary equipments, for example designed for wind-tower application, the particular conductor Cable Construction and the used materials have improved the cable torsion resistance (max 150°/m), key requirement for drop cables in windgenerators, on plaster in temporary buildings and builders huts, and wiring in machinery elevators or similar. Suitable for caravans and camping equipment.
Especially recommended for service temperature up to 90oC together with good resistance to hot grease and oil. Therefore these flexible cables are ideal for use in plants and industries dealing with grease, oil or oil emulsion treatments, transformation or handling.



Standard

<HAR> VDE-0282 Part-12
CENELEC HD 22.12 S1
CEI 20-19 p.12
CEI 20-35 (EN 60332-1)
IEMMEQU HAR IEC 60245-4
IEC 60754-1/2



Cable Construction

Polychloroprene rubber outer jacket
Green/Yellow wire
Bare copper conductor
EPR insulation



Fine bare copper strands
Strands to VDE-0295 Class-5, IEC 60228 Class-5
EPR(Ethylene Propylene Rubber) rubber EI7 insulation
Color code VDE-0293-308
CSP(Chlorosulphonated Polyethylene) outer jacket EM7



Technical Characteristics

Working voltage: 450/750 volts

Test voltage: 2500 volts

Flexing bending radius: 6.0 x O

Fixed bending radius: 4.0 x O

Temperature Range: -40 oC to +90 oC

Maximum Short Circuit Temperature: +250 oC

Flame retardant:IEC 60332.1C2/NF C 32-070

Insulation resistance: 20 MΩ x km




Technical parameter

AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Thickness of Sheath Nominal Overall Diameter Nominal Weight
# x mm^2 mm mm mm kg/km
17(32/32) 2 x 1 0.8 1.3 8.2 93
17(32/32) 3 x 1 0.8 1.4 8.9 114
17(32/32) 4 x 1 0.8 1.5 9.8 139
16(30/30) 1 x 1.5 0.8 1.4 5.9 50
16(30/30) 2 x 1.5 0.8 1.5 9.3 118
16(30/30) 3 x 1.5 0.8 1.6 10.0 144
16(30/30) 4 x 1.5 0.8 1.7 11.0 177
16(30/30) 5 x 1.5 0.8 1.8 12.1 226
16(30/30) 7 x 1.5 0.8 2.6 14.7 385
16(30/30) 12 x 1.5 0.8 2.9 18.8 516
16(30/30) 19 x 1.5 0.8 3.2 22.0 800
16(30/30) 24 x 1.5 0.8 3.5 25.7 882
14(50/30) 1 x 2.5 0.9 1.4 6.5 65
14(50/30) 2 x 2.5 0.9 1.7 10.9 172
14(50/30) 3 x 2.5 0.9 1.8 11.7 210
14(50/30) 4 x 2.5 0.9 1.9 12.8 257
14(50/30) 5 x 2.5 0.9 2 14.1 329
14(50/30) 7 x 2.5 0.9 2.8 17.1 445
14(50/30) 12 x 2.5 0.9 3.1 22.1 702
14(50/30) 19 x 2.5 0.9 3.5 26.0 1030
14(50/30) 24 x 2.5 0.9 3.9 30.4 1312
12(56/28) 1 x 4 1 1.5 7.4 89
12(56/28) 2 x 4 1 1.8 12.6 238
12(56/28) 3 x 4 1 1.9 13.5 292
12(56/28) 4 x 4 1 2 14.8 359
12(56/28) 5 x 4 1 2.2 16.3 422
12(56/28) 7 x 4 1 3.1 19.6 618
10(84/28) 1 x 6 1 1.6 8.1 115
10(84/28) 2 x 6 1 1.8 13.8 282
10(84/28) 3 x 6 1 2.1 14.8 355
10(84/28) 4 x 6 1 2.3 16.4 449
10(84/28) 5 x 6 1.2 3.6 18.1 567
8(80/26) 1 x 10 1.2 1.8 10.4 190
8(80/26) 2 x 10 1.2 2.3 19.4 539
8(80/26) 3 x 10 1.2 3.3 20.7 674
8(80/26) 4 x 10 1.2 3.4 22.6 833
8(80/26) 5 x 10 1.2 3.6 24.8 1010
6(128/26) 1 x 16 1.2 1.9 11.6 259
6(128/26) 2 x 16 1.2 2.8 21.8 722
6(128/26) 3 x 16 1.2 3.5 23.3 913
6(128/26) 4 x 16 1.2 3.6 25.4 1138
6(128/26) 5 x 16 1.2 3.9 28.1 1400
4(200/26) 1 x25 1.4 2 13.7 375
4(200/26) 2 x 25 1.4 3.3 25.9 1043
4(200/26) 4 x 25 1.4 4.1 30.8 1714
4(200/26) 5 x 25 1.4 4.4 33.9 2096
2(280/26) 1 x 35 1.4 2.2 15.4 492
2(280/26) 3 x 35 1.4 4.1 31.0 1745
2(280/26) 4 x 35 1.4 4.4 34.3 2204
2(280/26) 5 x 35 1.4 4.7 39.6 2810
1(400/26) 1 x 50 1.6 2.4 17.7 675
1(400/26) 3 x 50 1.6 3.6 35.8 2409
1(400/26) 4 x 50 1.6 4.8 39.6 3029
1(400/26) 5 x 50 1.6 5.1 44.1 4050
2/0(356/24) 1 x 70 1.6 2.6 20.0 908
2/0(356/24) 3 x 70 1.6 4.2 40.5 3211
2/0(356/24) 4 x 70 1.6 5.2 44.9 4121
3/0(485/24) 1 x 95 1.8 2.8 22.1 1171
3/0(485/24) 3 x 95 1.8 4.8 45.1 4210
3/0(485/24) 4 x 95 1.8 5.9 50.4 5361
4/0(614/24) 1x 120 1.8 3 24.5 1445
4/0(614/24) 3 x 120 1.8 4.8 49.9 5205
4/0(614/24) 4 x 120 1.8 6 55.3 6546
300 MCM (765/24) 1 x 150 2 3.2 26.9 1783
300 MCM (765/24) 3 x 150 2 5.2 54.8 6389
300 MCM (765/24) 4 x 150 2 6.4 60.9 8095
350 MCM (944/24) 1 x 185 2.2 3.4 28.9 2125
350 MCM (944/24) 4 x 185 2.2 6.8 65.7 9652
500 MCM (1221/24) 1x 240 2.4 3.5 32.6 2733
500 MCM (1221/24) 4x 240 2.4 7.2 75.5 12614
- 1 x 300 2.6 3.6 36.5 3348



miming cable 09.jpg




Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.

Q2: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.

Q3: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .
