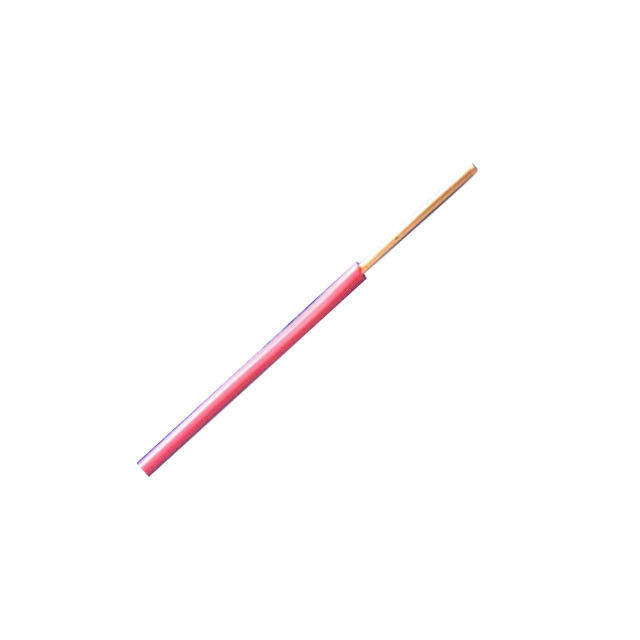

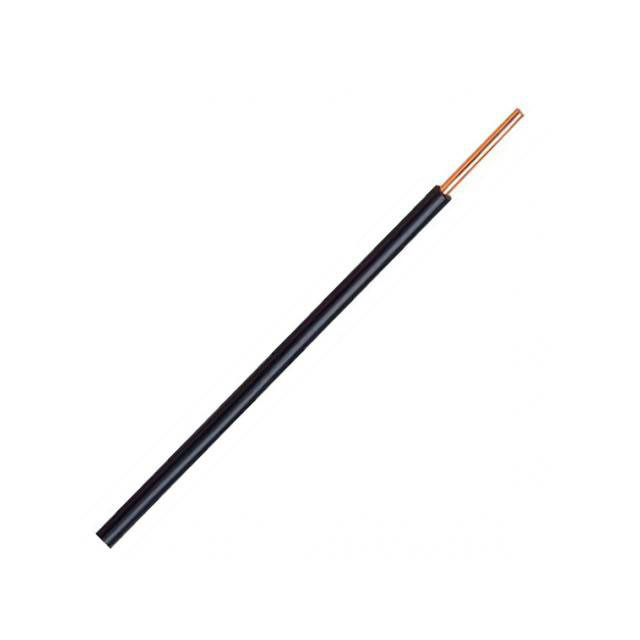

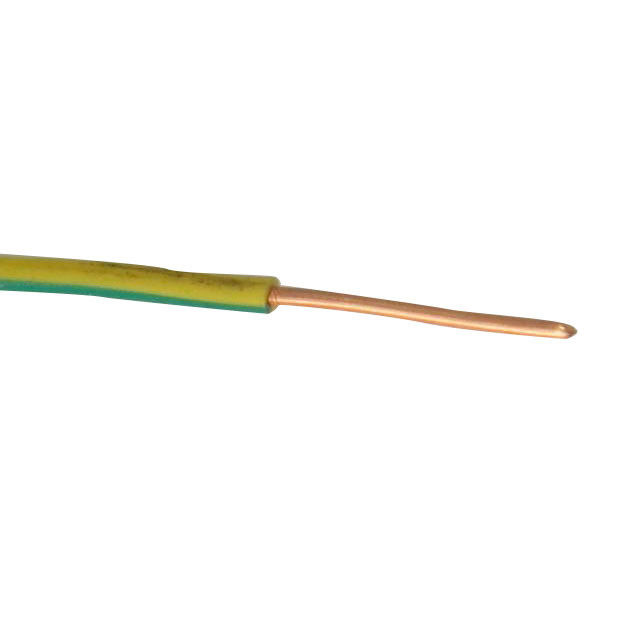

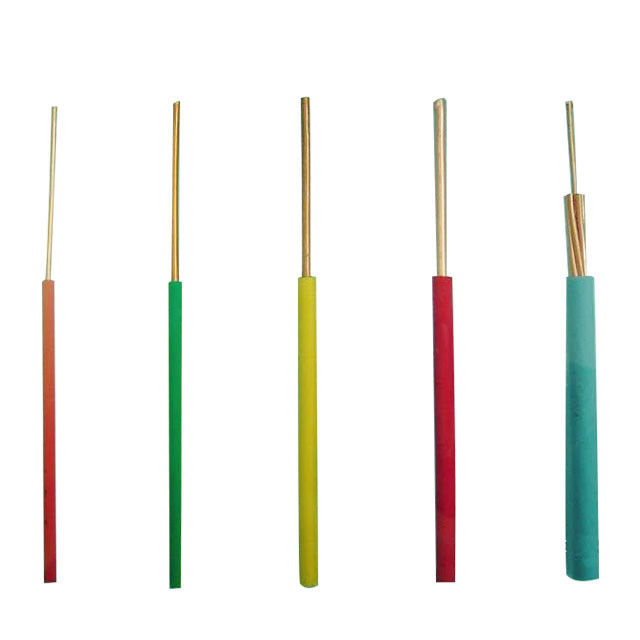

Copper Conductor 300V Silicone Rubber Insulated Cable

Minimum Order Quantity : 200meters Packaging Details : Iron-wooden drum
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE, ISO9001 Model Number: H05S-U

Detail Information

Conductor: Solid Copper Core: 1
Insulation: Silicone Rubber Insulation Rated Temperature: 180℃
Rated Voltage: 300/500V Sample: Free
High Light:

300V Silicone Rubber Insulated Cable

,

Copper Conductor Rubber Insulated Cable

,

VDE 0250 Rubber Insulated Cable

Product Description

300 / 500 V Silicone Rubber Insulation High Temperature Operation Cable H05S-U


Product Description







Application

These cables are used at high ambient temperatures and for ambient air temperature between -60° C and +180° C in dry locations.
They are suitable for lighting fittings and equipment, as internal wiring in switchgear and distribution boards.



Standard

VDE 0250
DIN VDE 0282-3
HD 22.3 S4.



Cable Construction
Conductor: Solid Copper
Insulation: Silicone Rubber Insulation



Technical Characteristics:

Rated voltage Uo/U 300 / 500 V; 450/750 V ≥ 1,5 mm²
Test voltage (AC 50 Hz) 2000 V; 2500 V ≥ 1,5 mm²
Insulation resistance min. 20 MΩ/km
Temperature at conductor + 180° C
Short circuit temperature + 200° C
Temperature range - 60° C ~ + 180° C (fixed)
Min. bending radius 15 x D (fixed)



Packing and Shipping



Packing Material: Coil (For small size & short length) , Wooden Drum , Iron-Wooden Drum , Steel Drum.

Shipping: Loading port from Qingdao or Shanghai , 12-24 hours from facotry to sea port.

Copper Conductor 300V Silicone Rubber Insulated Cable 0



FAQ



Q1 Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.

Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !

Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.



Q4:What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
