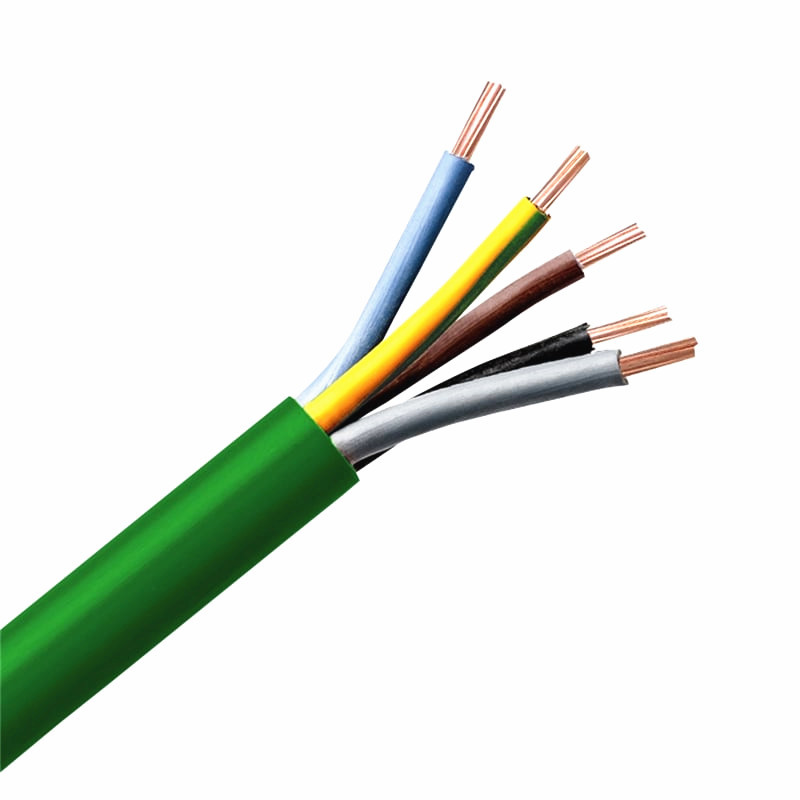

0.6/1kv XLPE LS0H Rz1 K LV Power Cable Flexible Halogen Free Cable
0.6/1kv XLPE LS0H Rz1 K LV Power Cable Flexible Halogen Free Cable
Contact Now

0.6/1kv XLPE LS0H Rz1 K LV Power Cable Flexible Halogen Free Cable

Minimum Order Quantity : 500meters Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Packaging Details : coil, pallet,drum Delivery Time : 7-30 days
Payment Terms : T/T, L/C, Western Union, MoneyGram Supply Ability : 3000km per months
Place of Origin: Henan ,China Brand Name: CN CABLE
Certification: ISO , CE Model Number: RZ1-K CABLE

Detail Information
Rated Voltage: 0.6/1KV Conductor: Flexible Copper Conductor
Insulation: XLPE Colour: Black,Green, Others
Jacket: Low Smoke Halogen Free Core Number: Single Core , Multi-core
High Light:

Rz1 K LV Power Cable

,

0.6/1kv XLPE LV Power Cable

,

Rz1 Halogen Free Cable

Product Description

I. Application
RZ1-K cable includes 600/1000V single core and multicore flexible cables.

They are designed for fixed applications, produced with flexible conductors in order to facilitate installations with sinuous courses.

These cables are normally used for installation to increase the level of security . Places where ere fire, smoke emission and toxic fumes create a potential threat to life and equipment.



II. Standard
IEC60228, IEC60502-1


III. Characters
Rated voltage: 0.6/1KV
Temperature Rating: -15°C to +90°C
Minimum Bending Radius: 5 x overall diameter


IV. Cable Construction
Conductor: Flexible copper wire , class 5 according to IEC60228
Insulation: XLPE
Outer sheath: Fire-retardant, halogen-free thermoplastic polyolefin


V. Packing Material
Coil , Pallet, Wooden Reel, Iron-wooden Reel, Steel Reel





Conductors
Size Max. dia. of wires in conductor Maximum resistance of conductor at 20 °C Size Max. dia. of wires in conductor Maximum resistance of conductor at 20 °C
mm2 mm Ω/KM mm2 mm Ω/KM
1.5 0.26 13.3 95 0.51 0.206
2.5 0.26 7.98 120 0.51 0.161
4 0.31 4.95 150 0.51 0.129
6 0.31 3.3 185 0.51 0.106
10 0.41 1.91 240 0.51 0.0801
16 0.41 1.21 300 0.51 0.0641
25 0.41 0.78 400 0.51 0.0486
35 0.41 0.554 500 0.61 0.0384
50 0.41 0.386 630 0.61 0.0287
70 0.51 0.272 / /

/









RZ1-K CABLE SINGLE CORE
No. of core Size Insulation Nominal thickness Sheath Nominal thickness Approx. cable over all dia. Approx. Weight
/ mm2 mm mm mm kg/km
1 1.5 0.7 1.4 5.8 46
1 2.5 0.7 1.4 6.3 58
1 4 0.7 1.4 6.8 76
1 6 0.7 1.4 7.9 101
1 10 0.7 1.4 9.1 145
1 16 0.7 1.4 10.4 206
1 25 0.9 1.4 12.3 305
1 35 0.9 1.4 13.6 400
1 50 1.0 1.4 15.5 547
1 70 1.1 1.4 17.6 740
1 95 1.1 1.5 19.8 980
1 120 1.2 1.5 22.7 1226
1 150 1.4 1.6 24.5 1517
1 185 1.6 1.6 27.2 1858
1 240 1.7 1.7 30.5 2381
1 300 1.8 1.8 33.9 2952
1 400 2.0 1.9 38.5 3893
1 500 2.2 2.0 43.2 4845
1 630 2.4 2.2 47.5 6070



0.6/1kv XLPE LS0H Rz1 K LV Power Cable Flexible Halogen Free Cable 00.6/1kv XLPE LS0H Rz1 K LV Power Cable Flexible Halogen Free Cable 1
