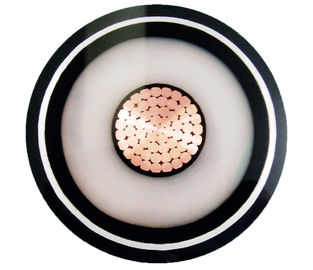

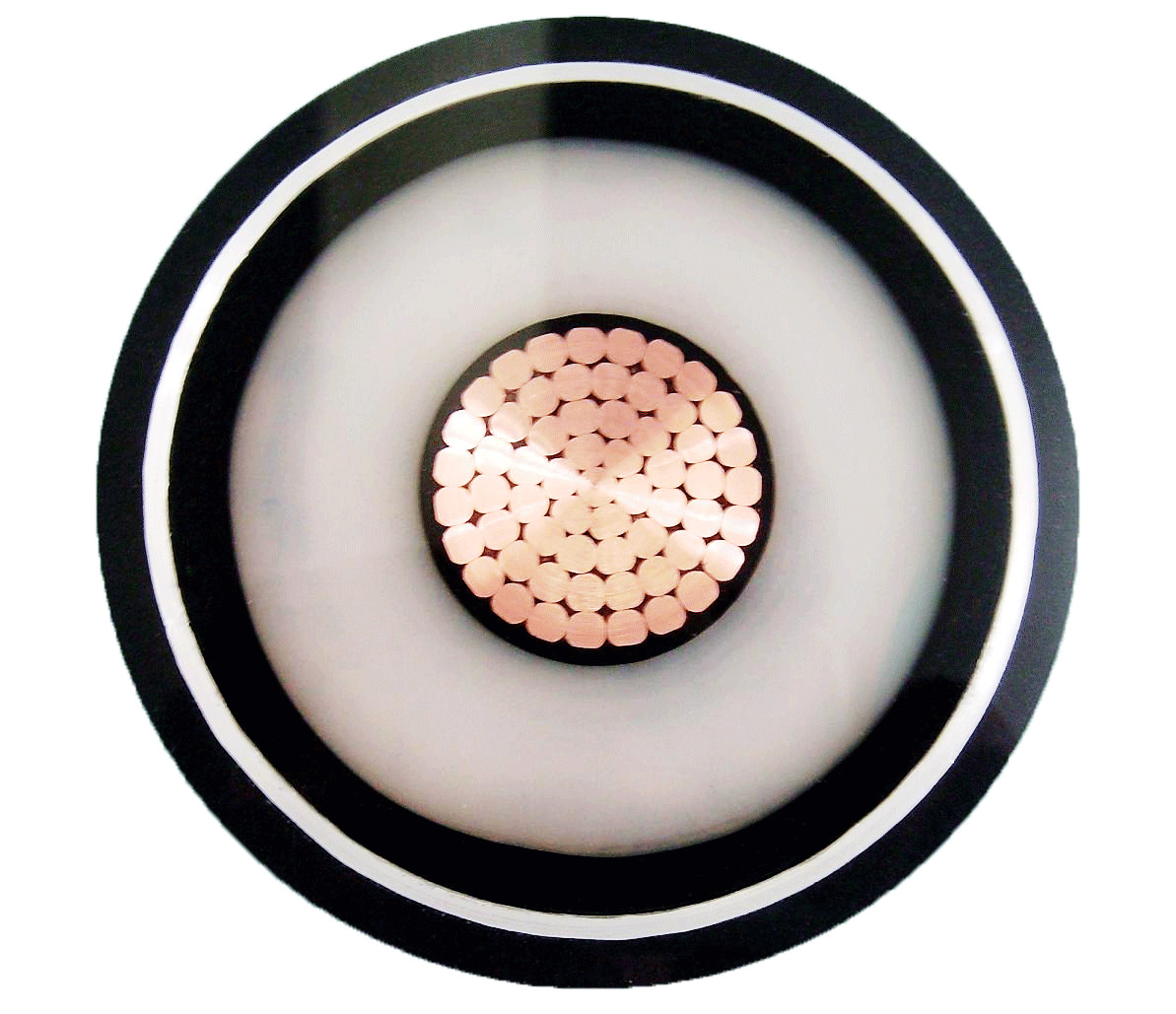

All Size 110KV High Voltage Shielded Cable For Electric Transmission By GB 11017, IEC60840

Place of Origin: China Brand Name: CN
Model Number: 110KV power cable

Detail Information

Conductor: Copper Insulation: XLPE
Color: Blank Type: HV 110KV POWER CABLE
Core: 1 Standard: GB 11017, IEC60840
Package: Wooden Reel ,iron-wooden Reel ,steel Reel
High Light:

single core power cable

,

high voltage power cables

Product Description

All Size 110KV High Voltage Shielded Cable For Electric Transmission By GB 11017, IEC60840



Product Description

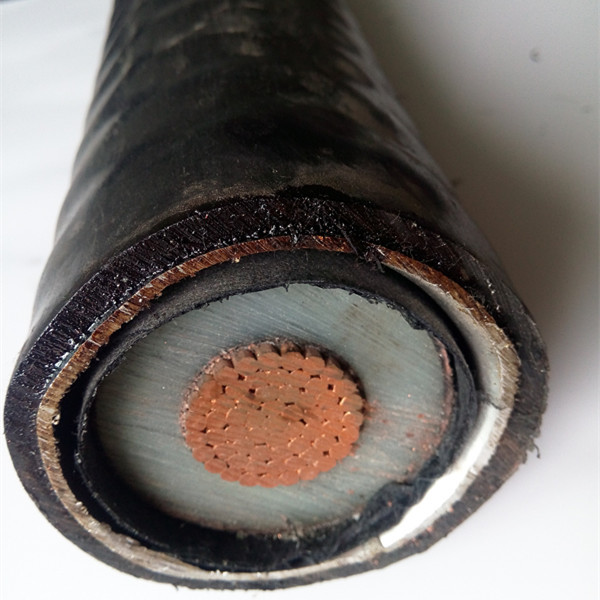

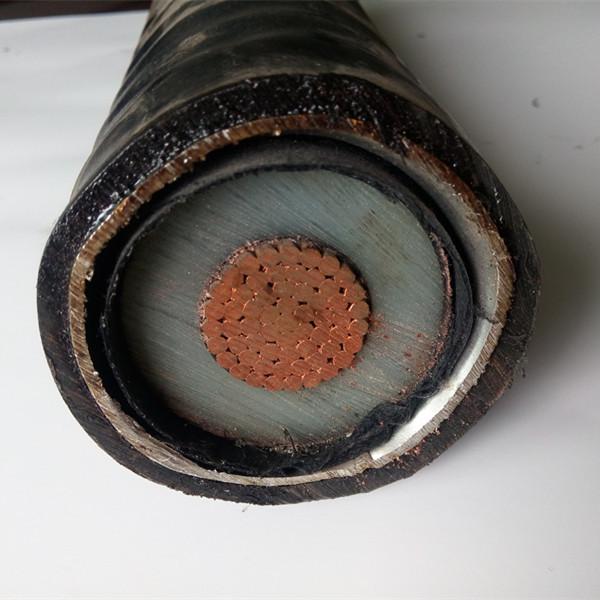

220kv 110kv copper / aluminum underground HV cable with metal sheath.jpg



Application
Extra-high-tension cable is a kind of power cable with the continuous development of cable technology. The cable is generally used as a central link in the large transmission system. It belongs to a high voltage cable with high technical content, which is mainly used for long distance power transmission.

Standard
GB 11017, IEC60840

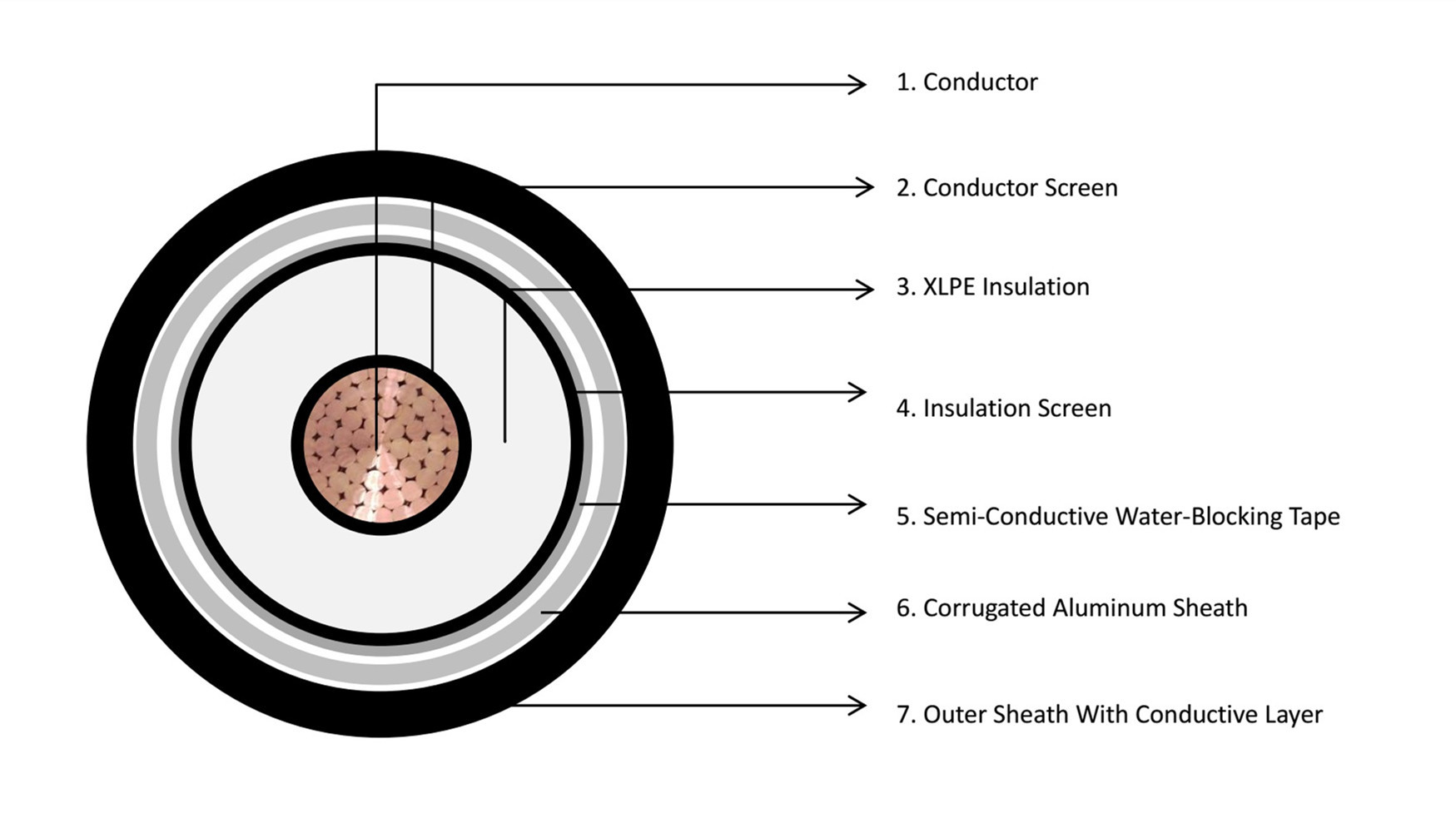

Construction
Al/Cu Conductor, XLPE Insulation, Metal shield layer, Water-blocking layer, Metal sheath, Outer Sheath, Conductive layer





Product date sheet



110KV Power Cable
Rated voltage Conductor size Approx. Conductor dia. XLPE Insulation thickness Electric Capacity Inductance Loss of insulation Max. D.C. Resistance
Parallel laying Trefoil laying Cu Al
KV mm2 mm mm pf/m mh/km mh/km w/m Ω/km
110 240 18.4 19 136 0.757 0.508 0.175 0.0754 0.125
300 20.6 18.5 147 0.734 0.489 0.19 0.0601 0.1
400 23.5 17.5 165 0.708 0.465 0.212 0.047 0.0778
500 26.6 17 182 0.683 0.445 0.234 0.0336 0.0605
630 30.25 16.5 201 0.657 0.424 0.259 0.0283 0.0469
800 34.23 16 224 0.633 0.406 0.288 0.0221 0.0367
1000 41.4 16 265 0.594 0.386 0.341 0.0176 0.0291
1200 45.28 16 282 0.577 0.375 0.363 0.0151 0.0247









Click for more information









Packaging & Shipping

110kv underground cable.jpg

Company Information




Our Certificate

All Size 110KV High Voltage Shielded Cable For Electric Transmission By GB 11017, IEC60840 3


Our Services




FAQ






Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.

Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !

Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.

Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!

Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .

Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
