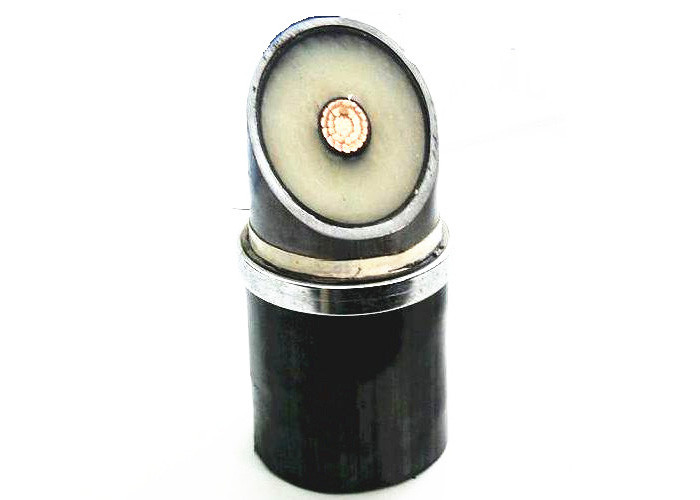

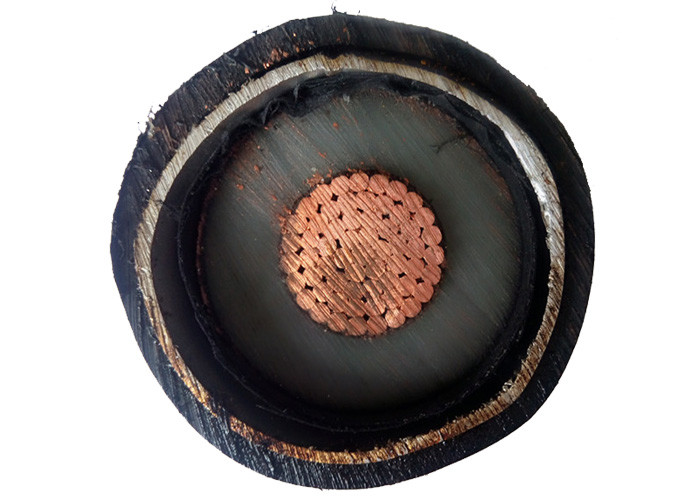

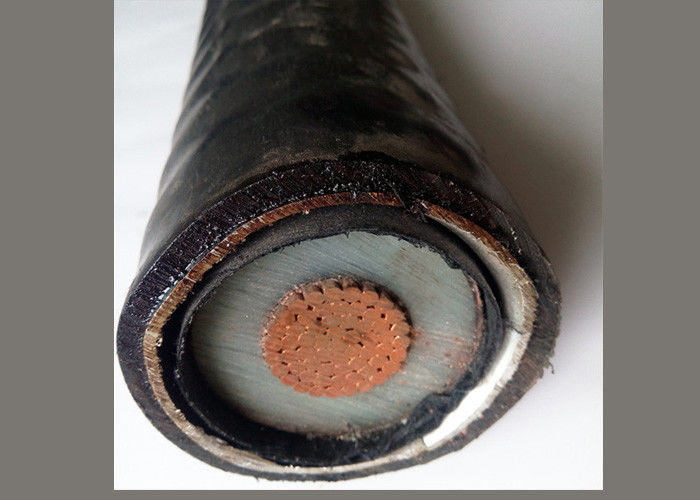

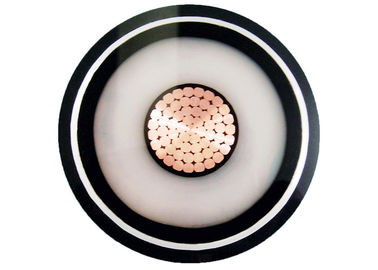

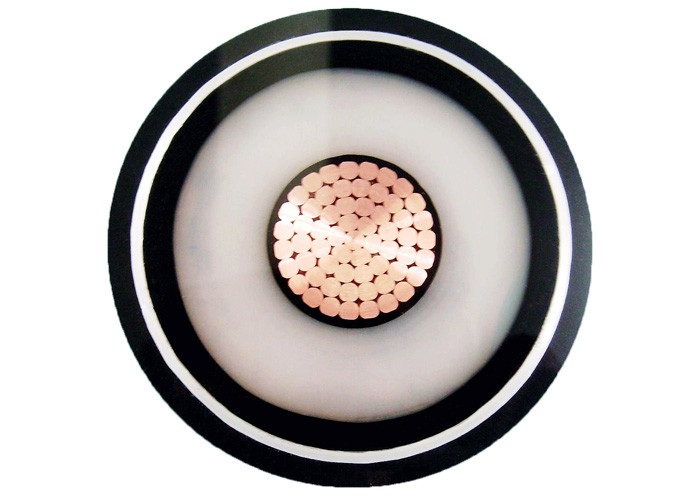

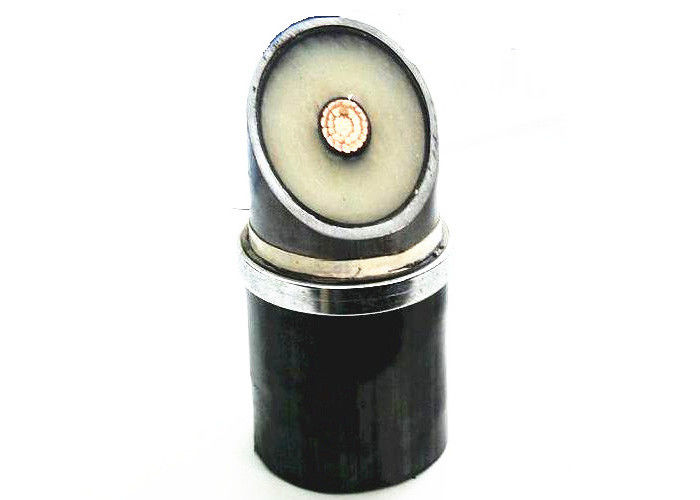

110kV Compact High Voltage Power Cables XLPE Insulation HDPE Sheath
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
|Insulation Material:||XLPE||Type:||Medium Voltage|
|Jacket:||PVC||Product Name:||110kv High Voltage Compact Segmental Conductor Xlpe Power Cable 1000mm|
|Certificate:||ISO9001/ISO14001||Standard:||IEC60502-2, BS 6622, NFC 33226, Etc.|
|Package:||Wooden Reel, Iron-wooden Reel, Steel Reel|
high voltage power cables,
high voltage underground cable
Extra-high-tension cable is a kind of power cable with the continuous development ofcable technology. The cable is generally used as a central link in the large
transmission system. It belongs to a high voltage cable with high technical content,which is mainly used for long distance power transmission.
GB 11017. IEC61840
1. Long-term operating temperature for cable conductor is 90C
2. The highest temperature of the conductor in short circuit (no longer than 5
seconds) is not more than 250C. If a joint is in the cable, the temperature of thetinning welding joint is not more than 120C, compressing joint not more than150C and electro-welding or gas-welding joint not more than 250C.
3. No drop is limited provided there is full mechanical tension when cable is laid. It is forbidden to lay cable in iron-pipe or to fix cable by circling around the cablewith iron materials.
4. Min. temperature during installation shall not be less than 0C. In the case oflower temperature, heating measures shall be taken.
Core Number: 1 Core
Conductor: Cu / AL
Metallic screen: Corrugated Aluminum sheathed
Outer sheath: PVC / PE
Product date sheet
|Type||Description||Rated Voltage||Nominal Cross-section|
|Cu core||Al core||KV||mm²|
|YJLW02||YJLLW02||XLPE Insulated Corrugated Aluminum sheathed PVC outer sheath power cable||64/110(126)||240 300 400 500 630 800 1000 1200|
|YJLW03||YJLLW03||XLPE Insulated Corrugated Aluminum sheathed PE outer sheath power cable||127/220(252)||400 500 630 800 1000 1200 1600 2000 2500|
|Note:The conductor shall be conpact circular stranded type if size is smaller than 800mm².If conductor size is 1000mm² and above,the structure should be compact segmental conductor.|
|Rated Voltage||Conductor size||Approx conductor dia.||conductor screen thickness||XLPE insulation thickness||insulation screen thickness||corrugated Al sheath thickness||outer sheath thickness||Approx. cable dia.||Approx cable weigh||Electric capacity||Inductance||loss of insulation||Max.D.C. Resistance|
|Cu||Al||parallel laying||trafoil laying||Cu||Al|
Click for more information
