PVC Insulation Armoured Power Cable MV 6/10KV 8.7/15KV 12/20KV 18/30KV
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Material: | Aluminum Conductor Steel Reinforced | Application: | Construction,Industrial |
---|---|---|---|
Color: | Customized | Standard: | DIN, CE ,BS |
Size: | 95/15mm²,185/30mm²,240/40² | ||
High Light: | armoured electrical cable,electrical power cable |
Product Description

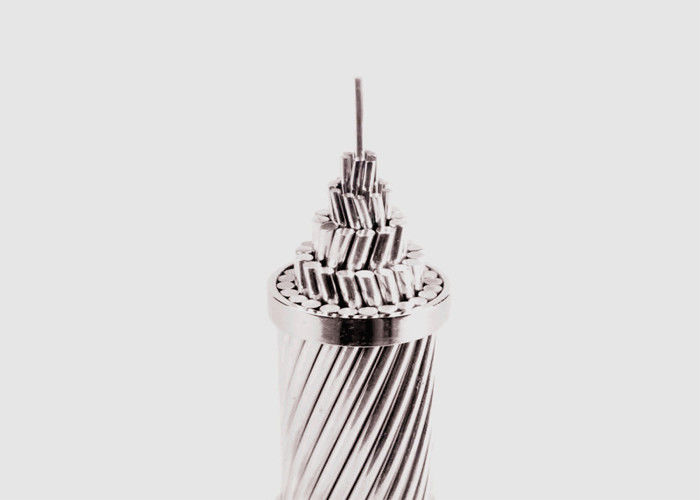

95/15mm²,185/30mm²,240/40²,Aluminum Conductor Steel Reinforced) for DIN Standard
Applications:
Used as bare overhead transmission cable and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.
Construction:
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C
Galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corrosion or infusion of the complete cable with grease.
Specifications:
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-clad Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AW)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Code Number | Calculated Cross Section | No./Dia. Of Stranding Wires | Overall Diameter |
Linear Mass | Nominal Breaking Load | Max.D.C. Resistance at 20ºC |
|||||
Al./St | Al. | Steel | Total | Alum. | Steel | Alum. | Steel | Total | |||
mm² | mm² | mm² | mm² | mm | mm | mm | kg/km | kg/km | kg/km | daN | Ω/km |
16/2.5 | 15.3 | 2.5 | 17.8 | 6/1.80 | 1/1.80 | 5.4 | 42 | 20 | 62 | 595 | 1.878 |
25/4 | 23.8 | 4 | 27.8 | 6/2.25 | 1/2.25 | 6.8 | 65 | 32 | 97 | 920 | 1.2002 |
35/6 | 34.3 | 5.7 | 40 | 6/2.70 | 1/2.70 | 8.1 | 94 | 46 | 140 | 1265 | 0.8352 |
44/32 | 44 | 31.7 | 75.7 | 14/2.00 | 7/2.40 | 11.2 | 122 | 250 | 372 | 4500 | 0.6573 |
50/8 | 48.3 | 8 | 56.3 | 6/3.20 | 1/3.20 | 9.6 | 132 | 64 | 196 | 1710 | 0.5946 |
50/30 | 51.2 | 29.8 | 81 | 12/2.33 | 7/2.33 | 11.7 | 141 | 237 | 378 | 4380 | 0.5643 |
70/12 | 69.9 | 11.4 | 81.3 | 26/1.85 | 7/1.44 | 11.7 | 193 | 91 | 284 | 2680 | 0.413 |
95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 260 | 123 | 383 | 3575 | 0.3058 |
95/55 | 96.5 | 56.3 | 152.8 | 12/3.20 | 7/3.20 | 16 | 266 | 446 | 712 | 7935 | 0.2992 |
105/75 | 106 | 75.5 | 181.5 | 14/3.10 | 9/2.25 | 17.5 | 292 | 599 | 891 | 10845 | 0.2735 |
120/20 | 121 | 19.8 | 141.4 | 26/2.44 | 7/1.90 | 15.5 | 336 | 158 | 494 | 4565 | 0.2374 |
120/70 | 122 | 71.3 | 193.3 | 12/3.6 | 7/3.60 | 18 | 337 | 564 | 901 | 10000 | 0.2364 |
125/30 | 128 | 29.8 | 157.7 | 30/2.33 | 7/2.33 | 16.3 | 353 | 238 | 591 | 5760 | 0.2259 |
150/25 | 149 | 24.2 | 173.1 | 26/2.70 | 7/2.10 | 17.1 | 411 | 194 | 605 | 5525 | 0.1939 |
170/40 | 172 | 40.1 | 211.9 | 30/2.70 | 7/2.70 | 18.9 | 475 | 319 | 794 | 7675 | 0.1682 |
185/30 | 184 | 29.8 | 213.6 | 26/3.00 | 7/2.33 | 19 | 507 | 239 | 746 | 6620 | 0.1571 |
210/35 | 209 | 34.1 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 577 | 273 | 850 | 7490 | 0.138 |
210/50 | 212 | 49.5 | 261.6 | 30/3.00 | 7/3.00 | 21 | 587 | 394 | 981 | 9390 | 0.1362 |
230/30 | 231 | 29.8 | 260.7 | 24/3.50 | 7/2.33 | 21 | 638 | 239 | 877 | 7310 | 0.1249 |
240/40 | 243 | 39.5 | 282.5 | 26/3.45 | 7/2.68 | 21.9 | 671 | 316 | 987 | 8640 | 0.1188 |
265/35 | 264 | 34.1 | 297.8 | 24/3.74 | 7/2.49 | 22.4 | 728 | 274 | 1002 | 8305 | 0.1094 |
300/50 | 304 | 49.5 | 353.7 | 26/3.86 | 7/3.00 | 24.5 | 840 | 396 | 1236 | 10700 | 0.09487 |
305/40 | 305 | 39.5 | 344.1 | 54/2.68 | 7/2.68 | 24.1 | 843 | 317 | 1160 | 9940 | 0.0949 |
340/30 | 339 | 29.8 | 369.1 | 48/3.00 | 7/2.33 | 25 | 938 | 242 | 1180 | 9290 | 0.08509 |
380/50 | 382 | 49.5 | 431.5 | 54/3.00 | 7/3.00 | 27 | 1056 | 397 | 1453 | 12310 | 0.08509 |
385/35 | 386 | 34.1 | 420.1 | 48/3.20 | 7/2.49 | 26.7 | 1067 | 277 | 1344 | 10480 | 0.07573 |
435/55 | 434 | 59.3 | 490.6 | 54/3.20 | 7/3.20 | 28.8 | 1203 | 450 | 1653 | 13645 | 0.07478 |
450/40 | 449 | 39.5 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1241 | 320 | 1561 | 12075 | 0.06656 |
490/65 | 490 | 63.6 | 553.9 | 54/3.40 | 7/3.40 | 30.6 | 1356 | 510 | 1866 | 15310 | 0.06434 |
495/35 | 494 | 34.1 | 528.2 | 45/3.74 | 7/2.49 | 29.9 | 1363 | 283 | 1646 | 12180 | 0.05846 |
510/45 | 510 | 45.3 | 555.5 | 48/3.68 | 7/2.87 | 30.7 | 1413 | 365 | 1778 | 13665 | 0.05655 |
550/70 | 550 | 71.3 | 621.3 | 54/3.60 | 7/3.60 | 32.4 | 1520 | 572 | 2092 | 17060 | 0.05259 |
560/50 | 562 | 49.5 | 611.2 | 48/3.86 | 7/3.00 | 32.2 | 1553 | 401 | 1954 | 14895 | 0.0514 |
570/40 | 566 | 39.5 | 610.3 | 45/4.02 | 7/2.68 | 32.2 | 1563 | 325 | 1888 | 13900 | 0.05108 |
650/45 | 699 | 45.3 | 653.5 | 45/4.30 | 7/2.87 | 34.4 | 1791 | 372 | 2163 | 15552 | 0.0442 |
680/85 | 679 | 86 | 764.8 | 54/4.00 | 19/2.40 | 36 | 1868 | 702 | 2570 | 21040 | 0.0426 |
1045/45 | 1046 | 45.3 | 1091 | 72/4.30 | 7/2.87 | 43 | 2879 | 370 | 3249 | 21787 | 0.0277 |
Click for more information
