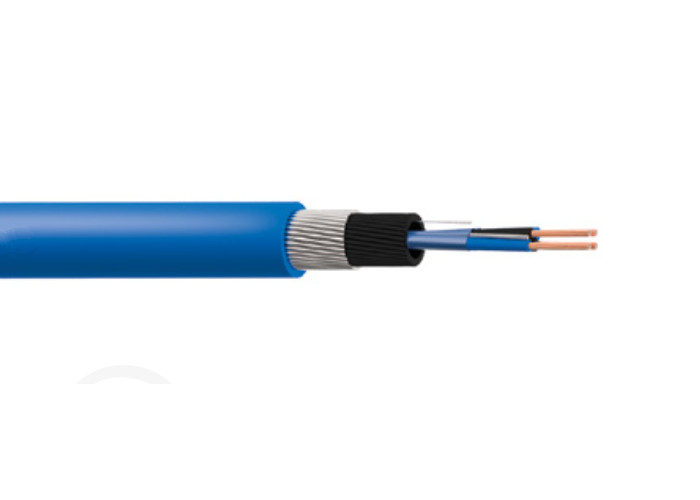

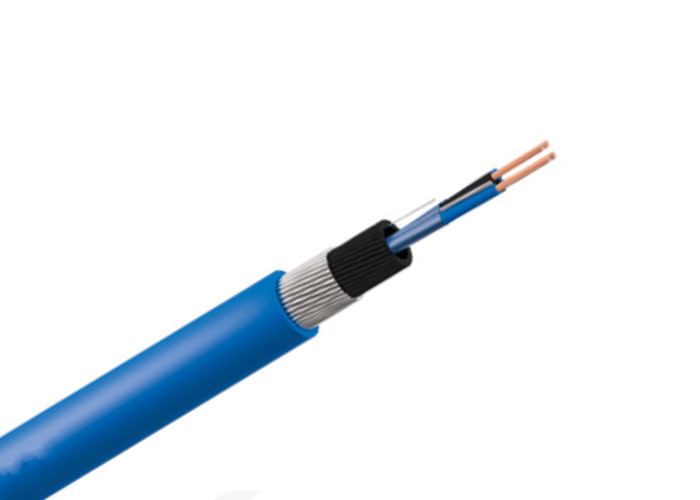

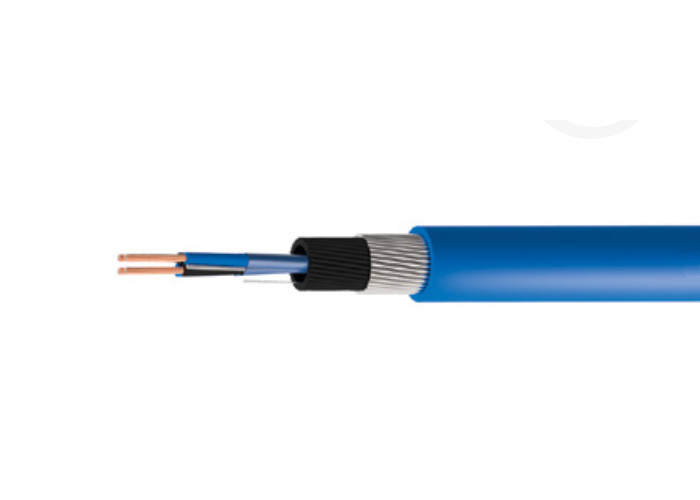

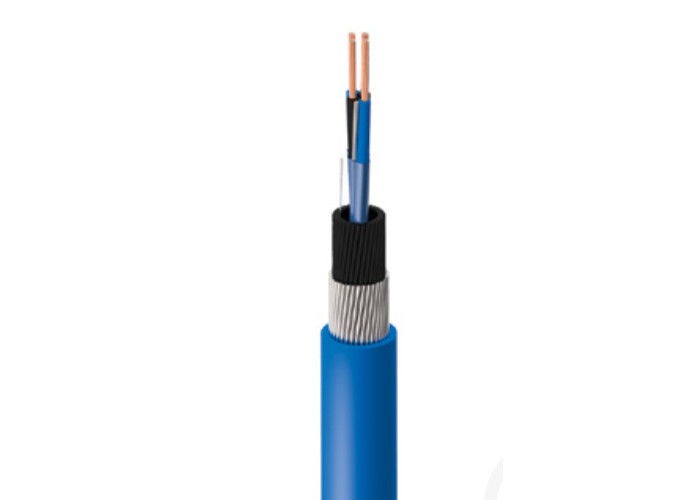

PE Insulation SWA Armoured Power Cable PVC Sheath Rated Voltage 300 / 500v
PE Insulation SWA Armoured Power Cable PVC Sheath Rated Voltage 300 / 500v PE Insulation SWA Armoured Power Cable PVC Sheath Rated Voltage 300 / 500v PE Insulation SWA Armoured Power Cable PVC Sheath Rated Voltage 300 / 500v PE Insulation SWA Armoured Power Cable PVC Sheath Rated Voltage 300 / 500v PE Insulation SWA Armoured Power Cable PVC Sheath Rated Voltage 300 / 500v
Contact Now

PE Insulation SWA Armoured Power Cable PVC Sheath Rated Voltage 300 / 500v

Minimum Order Quantity : 1000meters
Place of Origin: Henan, China Brand Name: CN CABLE
Certification: BS,IEC

Detail Information
Conductor: Class 1 Solid, Class 2 Stranded Or Class 5 Copper Conductor Insulation: PE
Binding Tape: PE Tape Screen: Aluminum/Polyester Tape
Drain Wire: Tinned Copper Bedding: PE Type
Armour: SWA Sheath: PVC
Rated Voltage: 300/500V
High Light:

armoured electrical cable

,

electrical power cable

Product Description

PE insulation SWA armour PVC sheath rated voltage 300/500v power cable

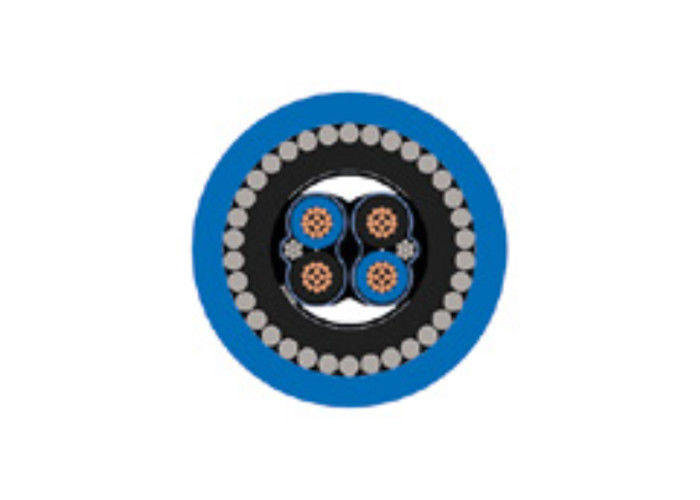

CONSTRUCTION:


Conductor
Class 1 solid, Class 2 stranded or Class 5 copper conductor according to BS EN 60228 (previously to 6360)
Insulation
PE (Polyethylene) Type 03 according to BS 6234
Binding Tape
PET (Polyester Tape)
Screen
AL/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper
Bedding
PE (Polyethylene) Type 03 according to BS 6234
Armour
Galvanized SWA (Steel Wire Armour)
Sheath
PVC (Polyvinyl Chloride) Type TM1according to BS EN 50363



Date sheet

NO. OF
PAIRS/TRIPLE		 NOMINAL CROSS
SECTIONAL AREA
mm²		 NOMINAL OVERALL
DIAMETER
mm
1P
1P
1P
1P
1P
1T
1T
1T
1T
1T
2P(Q)
2P(Q)
2P(Q)
2P(Q)
2P(Q)
5P
5P
5P
5P
5P
10P
10P
10P
10P
10P
15P
15P
15P
15P
15P
20P
20P
20P
20P
20P		 0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5
0.5
0.75
1
1.5
2.5		 11.4
11.8
11.8
12.9
13.7
11.7
12.1
12.3
13.5
14.3
12.3
13
13
14.3
15.3
17.9
19.3
19.7
22.1
24.1
22.9
25.5
24.3
28.4
32.1
26.4
28.7
28.1
32.2
36.4
29.1
31.6
31.2
35.7
41

P=paris, T=triple ,Q=quad



CONDUCTORS

NOMINAL CROSS
SECTIONAL AREA
mm²		 MAXIMUM DC RESISTANCE OF CONDUCTOR AT 20°C
ohms/km
0.5
0.75
1
1.5
2.5		 36
24.5
18.1
12.1
7.41
