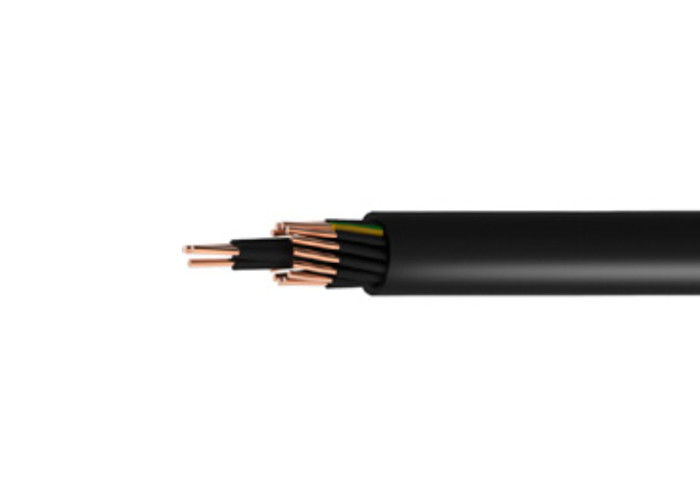

300 / 500V PVC Insulation Cable Socapex Control Highly flExible Multicore Copper Conductor

Minimum Order Quantity : 1000meters Packaging Details : Iron-wooden drum , wooden drum
Place of Origin: Henan, China Brand Name: CN CABLE
Certification: DIN VDE 0472 Part 804, IEC 60332-1, BS EN 60228 DIN EN 50290-2-22, VDE 0819-102, TM54, VDE 0207 Model Number: FLEXIBLE CABLE

Detail Information

Conductor: Class 5 Flexible Copper Conductor Insulation: PVC
Sheath: PVC Voltage Rating: 300/500
High Light:

armoured electrical cable

,

electrical power cable

Product Description

APPLICATION

The Socapex control cable is a highly flexible multicore cable for use in the connection of lighting technology and dimmer racks. The cable may be used in dry, damp and wet interiors under medium mechanical stress and for external use with UV protection. It is suitable for flexible and fixed applications.



CONSTRUCTION
Conductor
Class 5 flexible copper conductor
Insulation
PVC (Polyvinyl Chloride) Type TI1
Sheath
PVC (Polyvinyl Chloride) Type TM2

CHARACTERISTICS
Voltage Rating (Uo/U)
300/500V
Test Voltage
3kV
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +70°C
Minimum Bending Radius
Fixed: 4 x overall diameter
Flexed: 15 x overall diameter
Core Identifcation
Black numbered cores
Sheath Colour
Black



DIMENSIONS

NO. OF
CORES
NOMINAL CROSS
SECTIONAL AREA
mm²
NOMINAL OVERALL DIAMETER
mm
NOMINAL WEIGHT
kg/km
18
18
1.5
2.5
14.5
17.9
432
692














CONDUCTORS
Class 5 Flexible Conductor

NOMINAL CROSS
SECTIONAL AREA
mm²
MAXIMUM DIAMETER OF WIRES
IN CONDUCTOR
mm
MAXIMUM DC RESISTANCE
OF CONDUCTOR AT 20°C
ohms/km
1.5
2.5
0.26
0.26
13.3
7.98






Company Information:

10+ years experience of export business.

Flexible business model, rich customer groups.

Wide range of cable products, rich resources in local market.



Some Export Area:

Australia , Bangladesh, Canada, Chile, Cote D’ivoire, Congo, Dominican, Ecuador, Gambia, Ghana, Guinea, Guyana, Indonesia, Haiti, Iran, Kenya, Lraq, India, Malawi, Malaysia, Myanmar, Nigeria, Nepal. Peru, Philippines, Paraguay, Panama, Pakistan, Rwanda, Saudi Arab, South Africa, Sudan, Trinidad Tobago, Togo, Turkey, Uganda, US, UAE, UK, Uruguay, Yemen, Zimbabwe, Zambia.



Our Services

  1. Product consultation, analysis, design, production
  2. Provide industry information, Product Training, Assist Product Marketing
  3. Provide project support such as tender assistant, cooperate visit customers, FAT support.
  4. Complete quality system and docs available, faster lead time, good quality, Strong technical support, free samples.
  5. OEM service
  6. Other service customized by clients

FAQ



Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.

Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .

Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
