Class 2 Tinned Copper Conductor Armoured Electrical Cable BS 6883 6571TQ Type SW4 Cable

Minimum Order Quantity : 1000meters Packaging Details : wooden drum
Place of Origin: Henan Brand Name: CN CABLE
Certification: BS Model Number: TINNED COPPER CABLE

Detail Information

Conductor: Class 2 Tinned Copper Conductor Insulation: Halogen-free Elastomer Compound EPR
Sheath: HOFR (Heat And Oil Resistant And Flame Retardant), Halogenfree Elastomer Compound Type SW4 According To BS 7655
High Light:

armoured electrical cable

,

electrical power cable

Product Description

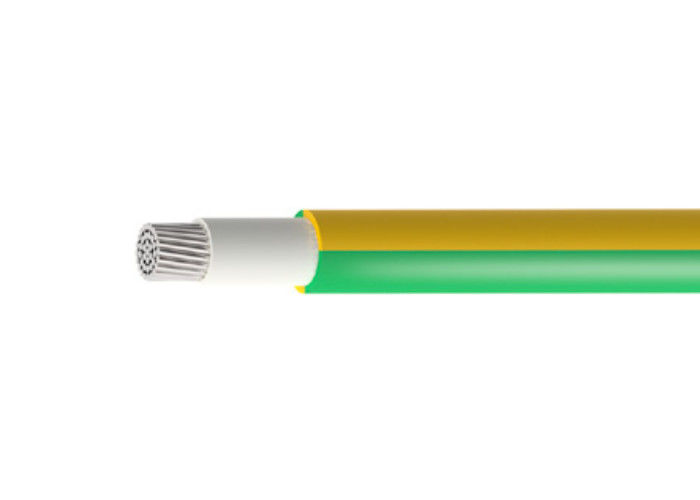

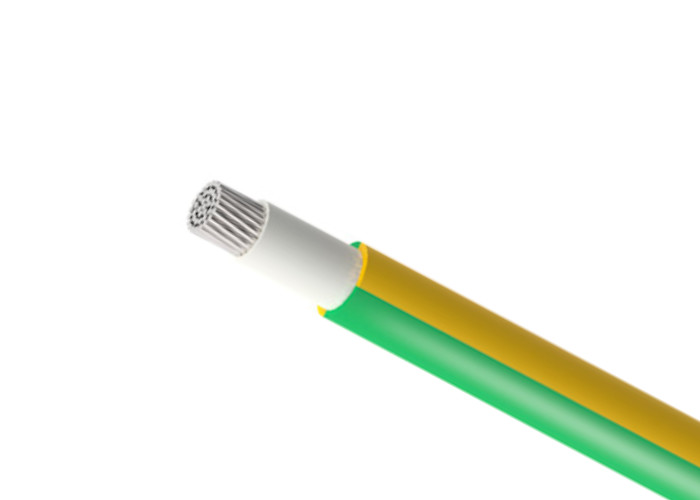

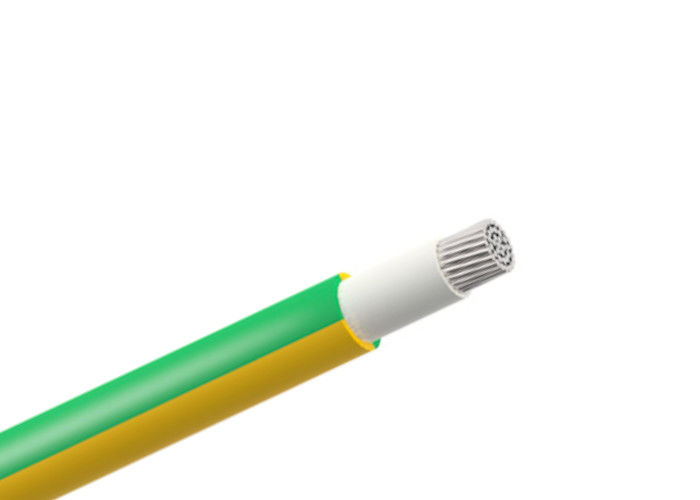

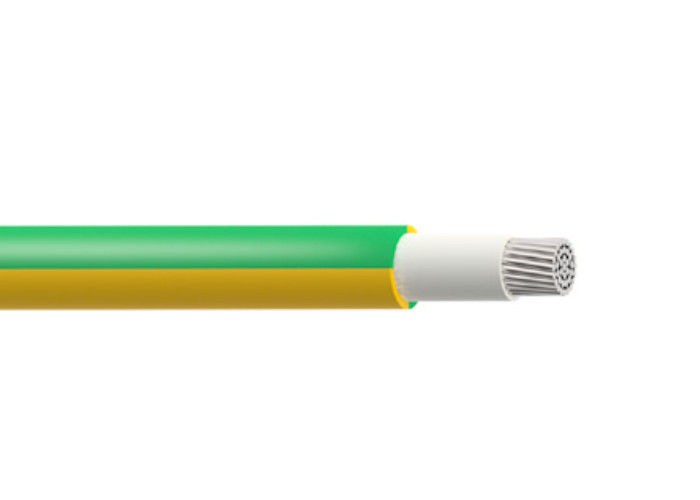

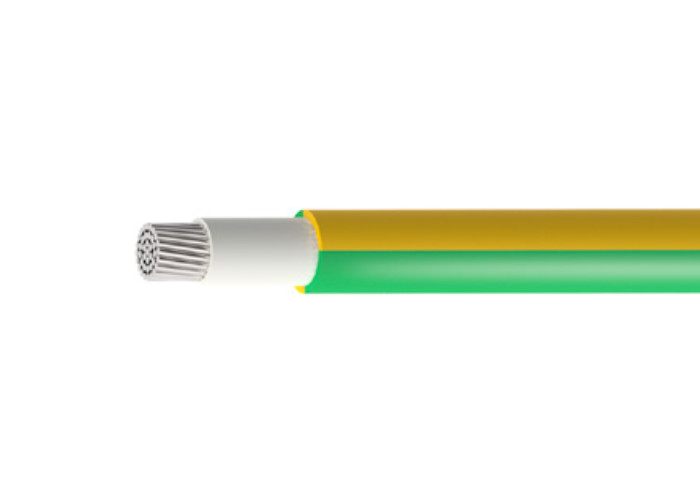

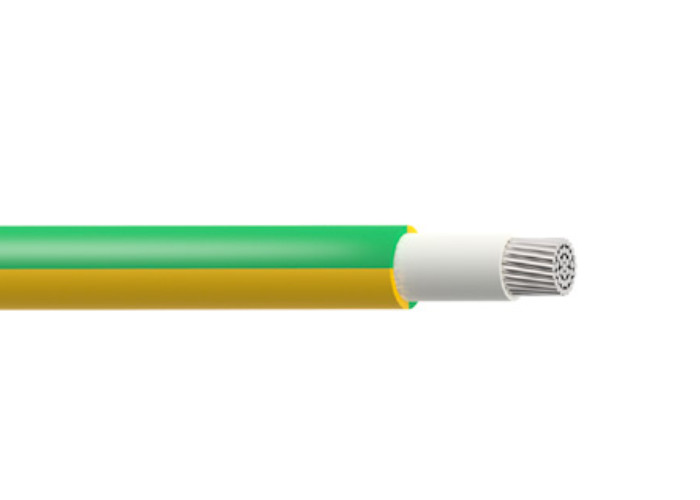

Class 2 Tinned Copper Conductor Armoured Electrical Cable BS 6883 6571TQ Type SW4 Cable



APPLICATION:

Unarmoured earth cable for fixed installations in all areas including accommodation and open deck in ships and offshore units.



CONSTRUCTION:

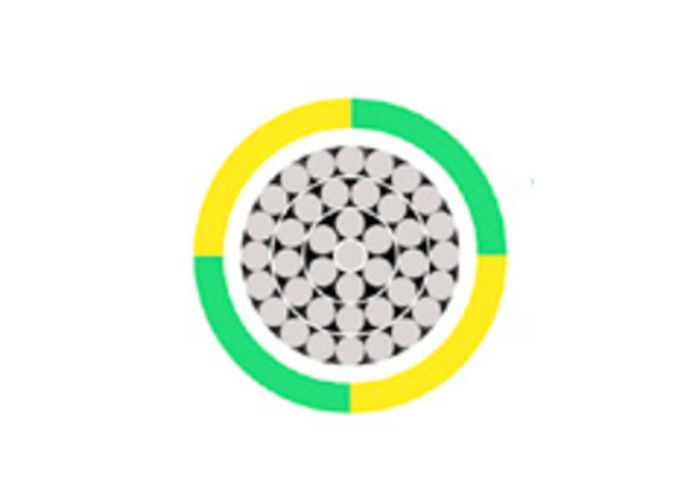

Conductor
Class 2 tinned copper conductor according to
BS EN 60228 (previously BS 6360)
Insulation
Halogen-free elastomer compound EPR Type GP4 according to
BS 7655
Sheath
HOFR (Heat and Oil Resistant and Flame Retardant), halogenfree elastomer compound Type SW4 according to BS 7655



CHARACTERISTICS:
Voltage Rating (Uo/U)
600/1000V
Temperature Rating
Fixed: -40°C to +90°C
Flexed: -15°C to +90°C
Minimum Bending Radius
Up to 10mm2 - Fixed: 3 x overall diameter
16mm2 to 25mm2 - Fixed: 4 x overall diameter
Above 25mm2 - Fixed: 6 x overall diameter
Sheath Colour
Green/Yellow



DIMENSIONS

CORE
NO.
NOMINAL CROSS
SECTIONAL AREA
mm²
NOMINAL THICKNESS
OF INSULATION
mm
NOMINAL THICKNESS OF
SHEATH
mm
NOMINAL
OVERALL
DIAMETER
mm
NOMINAL
WEIGHT
kg/km
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500
0.8
0.8
0.8
1
1
1
1
1.2
1.2
1.4
1.4
1.6
1.6
1.8
2
2.2
2.4
2.6
2.8
1
1
1
1
1
1
1.1
1.2
1.2
1.3
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2
2.2
4.8
5.1
5.6
6.5
7.1
8.1
9.5
11.4
12.6
14.3
16
18.6
20.3
22.4
24.9
28
30.9
35.3
39.3
34
40
54
78
101
144
216
328
429
551
753
1049
1274
1568
1949
2530
3134
4258
5337















































CONDUCTORS
Class 2 Stranded Conductors for Single Core and Multi-Core Cables

NOMINAL CROSS SECTIONAL AREA
mm²
MINIMUM NO. OF WIRES IN CONDUCTOR MAXIMUM RESISTANCE OF CONDUCTOR AT 20ºC
Circular Annealed Copper Conductor
Cu Metal-Coated Wires
ohms/km
1
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500
7
7
7
7
7
7
7
7
7
19
19
19
37
37
37
37
61
61
61
18.2
12.2
7.56
4.7
3.11
1.84
1.16
0.734
0.529
0.391
0.27
0.195
0.154
0.126
0.1
0.0762
0.0607
0.0475
0.0369























































ELECTRICAL CHARACTERISTICS
Current Carrying Capacity

NOMINAL CROSS SECTIONAL AREA
mm²
SINGLE CORE
Amps
1
1.5
2.5
4
6
10
16
25
35
50
70
95
120
150
185
240
300
400
500
18
23
30
40
52
72
96
127
157
196
242
293
339
389
444
522
601
719
827


DE-RATING FACTORS

AMBIENT TEMPERATURE 35ºC 40ºC 45ºC 50ºC 55ºC 60ºC 65ºC 70ºC 75ºC 80ºC
DE-RATING FACTOR 1.10 1.05 1.0 0.94 0.88 0.82 0.74 0.67 0.58 0.47
