Product Description

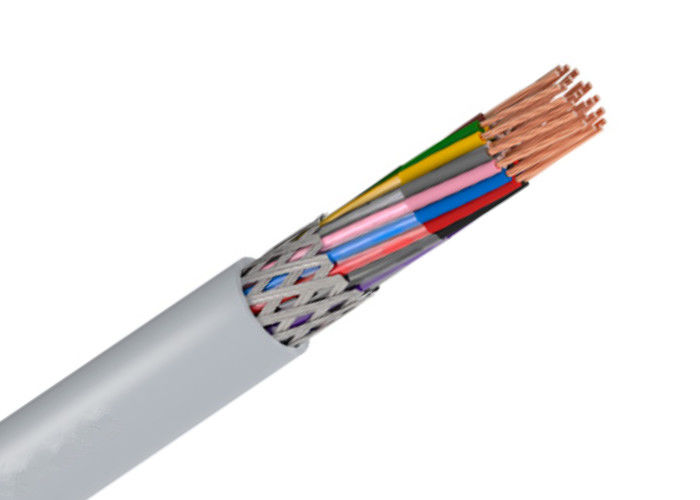

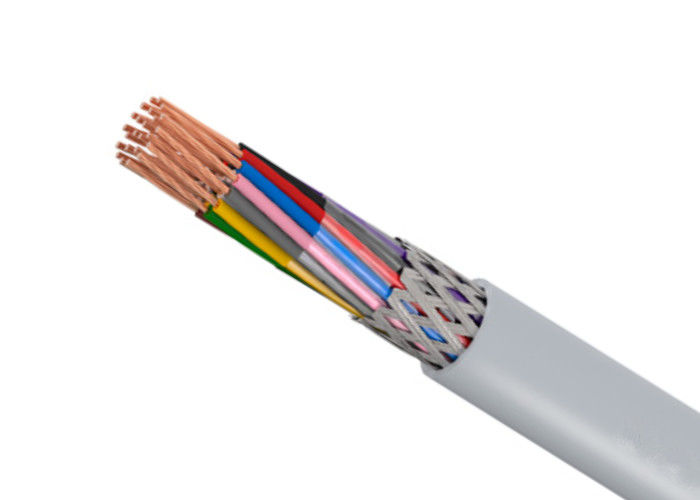

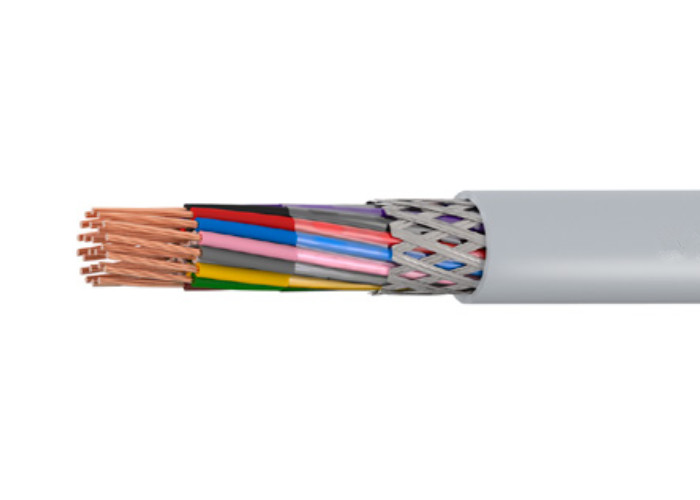

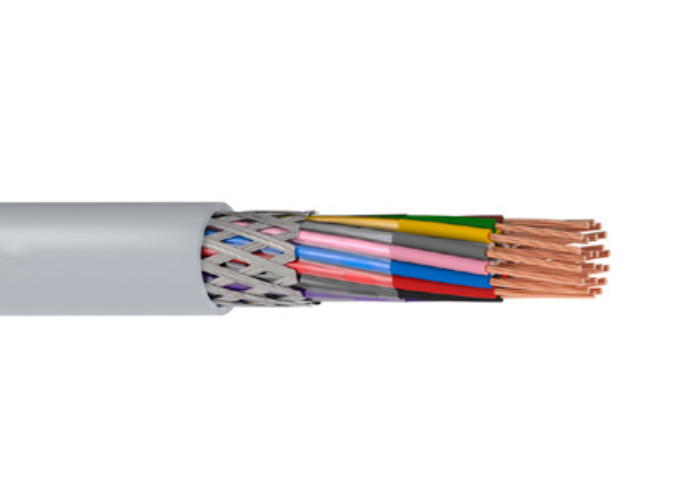

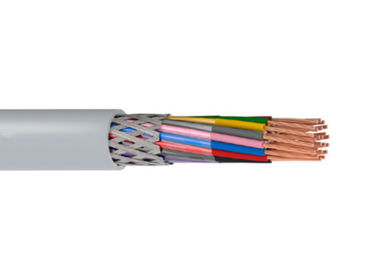

LIYCY TCWB Screened PVC IEC 60754 Control Cable Generally to DIN VDE 0812, BS EN/IEC 60332-1-2

APPLICATION:
To be installed in dry and humid rooms and used as a termination and connection cable in the control, measuring and signal technology.

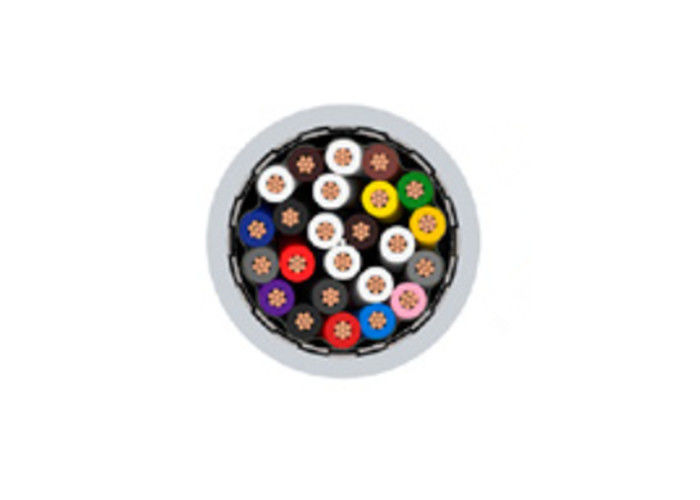

CONSTRUCTION:
Conductor
Fine-stranded copper conductor
Insulation
PVC (Polyvinyl Chloride)
Separator
Plastic foil tape
Screen
TCWB (Tinned Copper Wire Braid)
Sheath
PVC (Polyvinyl Chloride)
CHARACTERISTICS
Voltage Rating
0.14mm²: 350V
Above 0.14mm²: 500V
Test Voltage
0.14mm²: 800V
Above 0.14mm²: 1200V
Temperature Rating
Fixed: -40°C to +80°C
Flexed: -5°C to +50°C
Minimum Bending Radius
Flexed: 10 x overall diameter
Sheath Colour
Grey

Core Identifcation
Core 1: White
Core 2: Brown
Core 3: Green
Core 4: Yellow
Core 5: Grey
Core 6: Pink
Core 7: Blue
Core 8: Red
Core 9: Black
Core 10: Violet
Core 11: Grey/Pink
Core 12: Red/Blue
Core 13: White/Green
Core 14: Brown/Green
Core 15: White/Yellow
Core 16: Yellow/Brown
Core 17: White/Grey
Core 18: Grey/Brown
Core 19: White/Pink
Core 20: Pink/Brown
Core 21: White/Blue
Core 22: Brown/Blue
Core 23: White/Red
Core 24: Brown/Red
Core 25: White/Black
Core 26: Brown/Black
Core 27: Grey/Green
Core 28: Yellow/Grey
Core 29: Pink/Green
Core 30: Yellow/Pink
Core 31: Green/Blue
Core 32: Yellow/Blue
Core 33: Green/Red
Core 34: Yellow/Red
Core 35: Green/Black
Core 36: Yellow/Black
Core 37: Grey/Blue
Core 38: Pink/Blue
Core 39: Grey/Red
Core 40: Pink/Red
Core 41: Grey/Black
Core 42: Pink/Black
Core 43: Blue/Black
Core 44: Red/Black
Core 45: White/Brown/Black
Core 46: Yellow/Green/Black
Core 47: Grey/Pink/Black
Core 48: Red/Blue/Black
Core 49: White/Green/Black
Core 50: Brown/Green/Black

DIMENSIONS

NO. OF
CORES		NOMINAL CROSS
SECTIONAL AREA
mm²		CONDUCTOR CONSTRUCTIONCONDUCTOR LOOP
RESISTANCE
ohms/km		OVERALL
DIAMETER
mm		NOMINAL
WEIGHT
kg/km
No. of StrandsStrand Diameter
mm
1
1
1
1
2
2
2
2
2
2
2
3
3
3
3
3
3
3
4
4
4
4
4
4
4
5
5
5
5
5
5
5
6
6
6
7
7
7
7
7
7
7
8
8
8
8

0.25

0.5
0.75
1
0.14
0.25

0.34
0.5
0.75
1
1.5
0.14
0.25
0.34
0.5
0.75
1
1.5
0.14
0.25
0.34
0.5
0.75
1
1.5
0.14
0.25
0.34
0.5
0.75
1
1.5
0.14
0.25
0.5
0.14
0.25
0.34
0.5
0.75
1
1.5
0.14
0.25
0.34
0.5

14

16
24

32
18
14

19
16
24
32

29
18
14
19
16
24
32
29
18
14
19
16
24

32
29
18
14
19
16
24
32
29
18
14
16
18
14
19
16
24
32
29
18
14
19
16

0.16
0.21
0.21
0.21

0.1
0.16
0.16
0.21

0.21

0.21
0.25
0.1
0.16
0.16
0.21
0.21
0.21
0.25
0.1
0.16
0.16
0.21
0.21
0.21
0.25
0.1
0.16
0.16
0.21
0.21
0.21
0.25
0.1
0.16
0.21
0.1
0.16
0.16
0.21
0.21
0.21
0.25
0.1
0.16

0.16

0.21

75.5
37.8
25.3
19.5
138
75.5
57.7
37.8
25.3
19.5
13.3
138
75.5
57.7
37.8
25.3
19.5
13.3
138
75.5
57.7
37.8
25.3
19.5
13.3
138
75.5
57.7
37.8
25.3
19.5
13.3
138
75.5
37.8
138
75.5
57.7
37.8
25.3
19.5
13.3
138
75.5
57.7
37.8		4
3.3
3.5
3.9
3.7
4.3
4.7
5.2
5.8
6.3
7.1
3.9
4.5
4.9
5.7
6.3
6.8
7.5
4.1
4.8
5.5
6.3
7
7.4
8.1
4.6
5.2
6.2
7
7.6
8
8.8
4.9
5.8
7.3
5
5.8
6.7
7.6
8.2
8.6
9.5
5
6.4
7.3
8.1		14
20
24
29
21
20
33
42
50
74
86
25
35
41
55
71
89
107
29
44
48
68
78
107
129
35
50
58
82
100
132
150
38
58
104
41
60
70
109
131
158
192
45
67
93
123



NO. OF
CORES		NOMINAL CROSS
SECTIONAL AREA
mm²		CONDUCTOR CONSTRUCTIONCONDUCTOR LOOP
RESISTANCE
ohms/km		OVERALL
DIAMETER
mm		NOMINAL
WEIGHT
kg/km
No. of StrandsStrand Diameter
mm
8
8
10
10
10
10
12
12
12
12
12
12
14
14
16
16
16
16
18
18
18
18
18
20
20
24
24
24
24
25
25
27
27
30
32
32
36
36
40
50
52
52		0.75
1.5
0.14
0.25
0.34
0.5
0.14
0.25
0.34
0.5
0.75
1
0.14
0.25
0.14
0.25
0.34
0.5
0.14
0.25
0.34
0.5
0.75
0.14
0.5
0.14
0.25
0.34
0.5
0.14
0.25
0.14
0.25
0.25
0.25
0.5
0.14
0.25
0.25
0.14
0.14
0.25		24
29
18
14
19
16
18
14
19
16
24
32
18
14
18
14
19
16
18
14
19
16
24
18
16
18
14
19
16
18
14
18
14
14
14
16
18
14
14
18
18
14		0.21
0.25
0.1
0.16
0.16
0.21
0.1
0.16
0.16
0.21
0.21
0.21
0.1
0.16
0.1
0.16
0.16
0.21
0.1
0.16
0.16
0.21
0.21
0.1
0.21
0.1
0.16
0.16
0.21
0.1
0.16
0.1
0.16
0.16
0.16
0.21
0.1
0.16
0.16
0.1
0.1
0.16		25.3
13.3
138
75.5
57.7
37.8
138
75.5
57.7
37.8
25.3
19.5
138
75.5
138
75.5
57.7
37.8
138
75.5
57.7
37.8
25.3
138
37.8
138
75.5
57.7
37.8
138
75.5
138
75.5
75.5
75.5
37.8
138
75.5
75.5
138
138
75.5		8.7
10.6
5.5
7.5
8.3
9.3
6.3
7.7
8.5
9.6
10.8
11.4
6.7
8
7
8.4
9.4
10.9
7.3
8.8
10.2
11
12.5
7.6
12
8.3
10.5
11.7
13.2
8.5
10.7
8.5
10.9
11
11.4
14.5
9.3
11.8
12.2
12
11.1
13.6		151
219
49
81
110
135
61
91
120
160
218
254
67
116
81
133
147
210
92
137
172
210
300
104
270
118
185
229
320
120
190
123
200
214
227
360
157
250
289
320
212
340
