Armored LV Power Cable

Product Details:
Place of Origin: Henan, China (Mainland)
Brand Name: CN Cable Group
Model Number: LV Power Cable 2 cores
Payment & Shipping Terms:
Minimum Order Quantity: 200 Meter/Me

Detail Information

Insulation Material: XLPE Type: Low Voltage Armored
Application: LV Electric Power Cables Conductor Material: Copper Conductor
Jacket: PVC Conductor: Copper
Core Number: 2 Insulation: XLPE
Dia: 35mm2 Outer Sheath: PVC
Rated Voltage: 600V Certificate: ISO9001/ISO14001
Armored: Steel Wire
High Light:

Armored LV Power Cable


XLPE LV Power Cable

Product Description

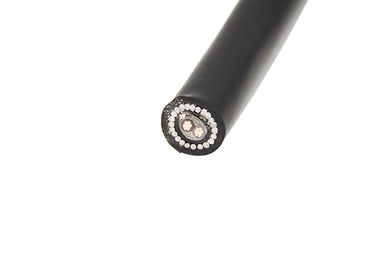

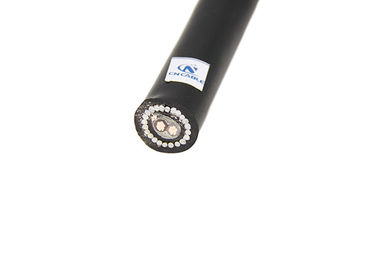

2 Core Steel Wire Armored XLPE Insulated 35mm2 Low Voltage Cable

Product Description

 A five-core low-voltage cable has five core wires insulated from each other, and a plastic sheath or steel armor plus a plastic sheath that wraps The 2-core steel wire armored cable is composed of 2 copper conductors, insulation, steel wire armor, PVC sheath and filler.



LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.


Applicable Standard:

We can produce according to the required standard.


1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales



Cu Conductor+Xlpe Insulation + PVC Inner sheath + PVC Outer Sheath + Steel Wire Armored


1.Rated voltage: 0.6/1KV
2.Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
3.Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation
In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulatio


Two(2) core, XLPE Insulated Power Cable
Size Cable dia. Cable weight
None- Steel tape armored Steel wire armored None-armored Steel tape armored Steel wire armored
armored CU AL CU AL CU AL
mm2 mm kg/km
25 19.8 22.6 25.8 681 376 918 613 1423 1118
35 21.8 24.6 27.8 885 463 1147 725 1688 1266
