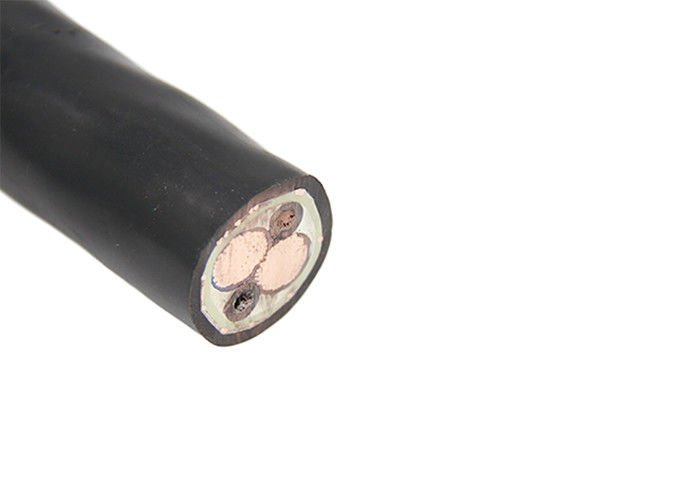

16mm2 LV Power Cable

Product Details:
Place of Origin: Henan, China (Mainland)
Brand Name: CN Cable Group
Model Number: LV Cable mm2
Payment & Shipping Terms:
Minimum Order Quantity: 200 Meter/Me

Detail Information

Insulation Material: XLPE Type: With Amoured
Application: LV Electric Cables Lines Conductor Material: Copper Conductor
Jacket: PVC/PE Filler: PVC
Core Number: 2 Insulation: XLPE
Dia: 16mm2 Outer Sheath: PVC
Rated Voltage: 600V Certificate: ISO9001/ISO14001
High Light:

16mm2 LV Power Cable


XLPE LV Power Cable

Product Description


PVC Outer Sheath 2 Core XLPE Insulated 16mm2 Low Voltage Cable With ground Wire

Product Description

 A five-core low-voltage cable has five core wires insulated from each other, and a plastic sheath or steel armor plus a plastic sheath that wraps The 2-core steel wire armored cable is composed of 2 copper conductors, insulation, steel wire armor, PVC sheath and filler.

The ground wire is a wire connected to the earth, to the housing, or to the reference potential in the electrical system or electronic equipment. In general electrical appliances, the ground wire is connected to the shell to prevent electrical shock caused by the internal insulation destroying the live shell. The ground wire is short for grounding device. The ground wire is divided into working ground and safety ground. The protective grounding adopted to prevent people from getting an electric shock when using home appliances and office and other electronic equipment is a kind of safety grounding.



16mm2 Low Voltage Cable With ground Wire are used for laying indoor, tunnel, underground, canal, water and seabed, etc.


Applicable Standard:

We can produce according to the required standard.


Why is CN CABLE?
1. Factory price
2. Customized cable
3. Quality assurance
4. Project experience



Cu Conductor+Xlpe Insulation + PVC Inner sheath + PVC Outer Sheath + Ground Wire


1.Rated voltage: 0.6/1KV
2.Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
3.Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation
In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulatio


Two(2) core, XLPE Insulated Power Cable
Size Cable dia. Cable weight
None- Steel tape armored Steel wire armored None-armored Steel tape armored Steel wire armored
armored CU AL CU AL CU AL
mm2 mm kg/km
10 14.9 17.7 20.2 333 210 512 389 780 657
16 17 19.8 22.3 471 275 675 479 980 784






Packaging & Shipping

 16mm2 LV Power Cable 0
