25mm2 LV Power Cable

Product Details:
Place of Origin: Henan, China (Mainland)
Brand Name: CN Cable Group
Model Number: LV Cable 25 mm2
Payment & Shipping Terms:
Minimum Order Quantity: 200 Meter/Me

Detail Information

Insulation Material: XLPE Type: Without Amoured
Application: Underground, Canal, Water And Seabed Conductor Material: Copper Conductor
Jacket: PVC/PE Filler: PVC
Core Number: 3 Insulation: XLPE
Dia: 25mm2 Outer Sheath: PVC Sheath
Rated Voltage: 600V/1kv Standard: According To Customer Needs
High Light:

25mm2 LV Power Cable


PVC sheath LV Power Cable

Product Description

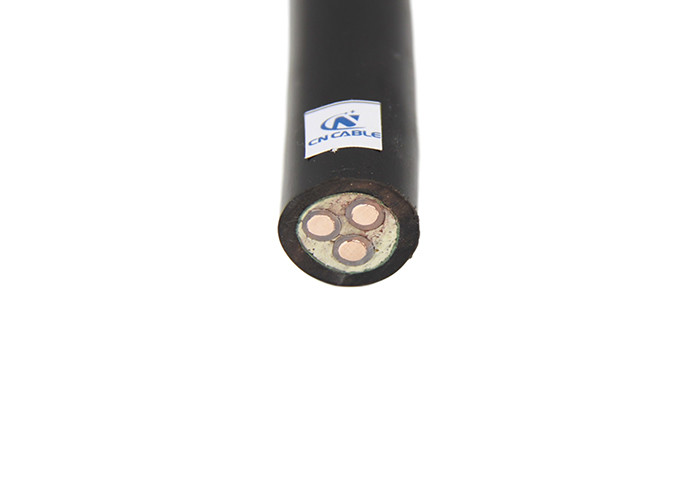

PVC Outer Sheath 3 Core XLPE Insulated 25mm2 Copper Conductor Low Voltage Cable

Product Description

The three-core cable is a wire on the outside and three wires on the inside. The three-core power cord generally comes with brown wire as the live wire, blue wire as the neutral wire, and yellow-green wire as the ground wire. The three-core cable can be used for three-phase power or Ground single-phase power supply line.



25mm2 Low Voltage Cable are used for laying indoor, tunnel, underground, canal, water and seabed, etc.



IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc


Why is CN CABLE?
1. Factory price
2. Customized cable
3. Quality assurance
4. Project experience



3 Core Cu Conductor+Xlpe Insulation + PVC Inner sheath + PVC Outer Sheathe


1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales




Three (3) core, XLPE Insulated Power Cable
Size Cable dia. Cable weight
None-armored Steel tape armored Steel wire armored None-armored Steel tape armored Steel wire armored
mm2 mm kg/km
16 18.1 20.9 23.4 629 335 846 552 1175 880
25 21.1 23.9 27.1 923 465 1175 718 1705 1248
