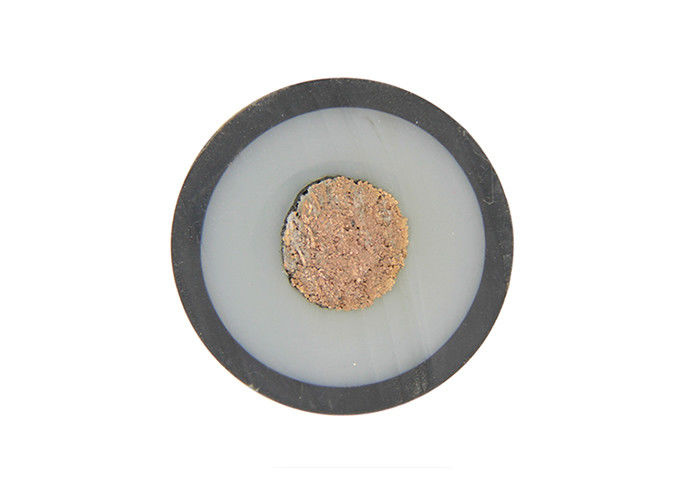

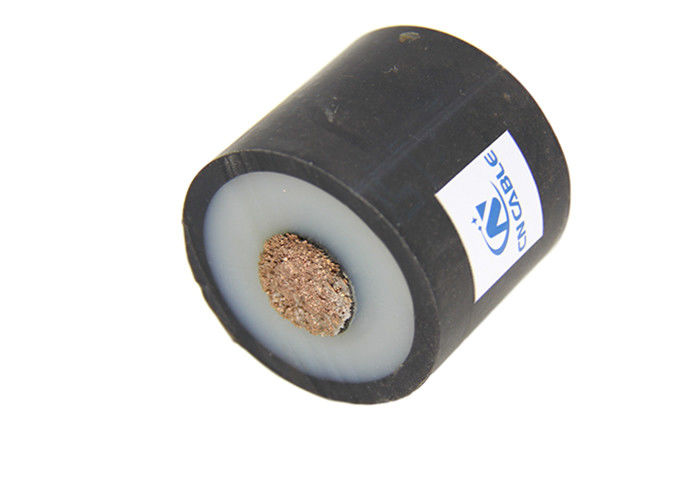

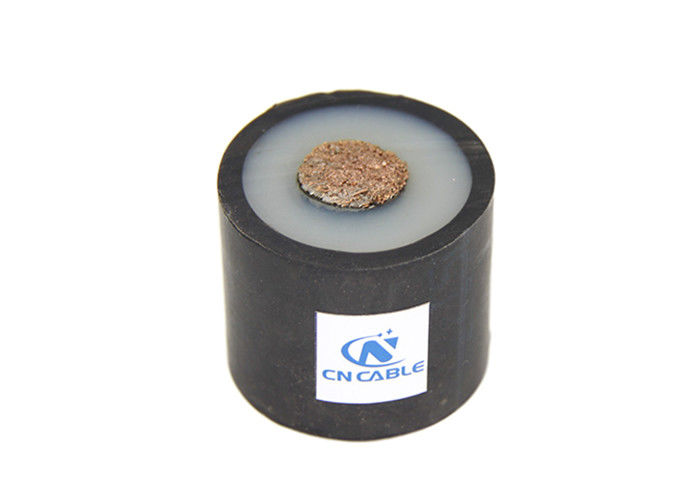

150mm MV Power Cable

Name: 150mm MV Power Cable
Brand: CN CABLE
SKU: MV CABLE
Rating: 4.9 (189 reviews)

Minimum Order Quantity :	1000meters	Packaging Details :	wooden drum. iron-wooden drum
Delivery Time :	20 days	Payment Terms :	L/C, T/T

Place of Origin:	Henan	Brand Name:	CN CABLE
Certification:	IEC	Model Number:	MV CABLE

Detail Information
Conductor:	Copper Conductor	Insulation:	XLPE
Size:	150mm	Application:	Flexible Cable
Core:	Single Core
Highlight:	Single Core MV Power Cable , 150mm MV Power Cable

Product Description

1-30KV Medium Voltage 150mm Single Core Flexible XLPE Insulated Copper Electric Power Cable

APPLICATION:The product is used in power transmission and distribution line at Voltage Up to 46KV. It does not only have excellent electric, mechanical properties, but also has powerful resistance against chemical corrosion, heat aging and environmental stress.

CONSTRUCTION

Conductor	Copper Conductor
Insulation	XLPE (Cross-Linked Polyethylene)
Sheath	MDPE (Medium Density Polyethylene)/PVC/XLPE
Conductor Size	150mm2

Advantage:
1. Rich production experience.
2. Strict quality control procedures
3. Product testing
4. Quality assurance and after-sales

We can produce according to the required standard.

Standard
IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C 68.3, ICEA S 93-639 , ICEA S 94-649

1-30KV XLPE Insulated Power Cable
Conductor Size	Stranding No.		Conductor Dia.	Max. D.C. resistance at 20℃
	(Compacted Round)		Conductor Dia.	Max. D.C. resistance at 20℃
	Cu	Al		Cu	Al
mm2	No.s	No.s	mm	Ω/KM	Ω/KM
25	≥6	≥6	5.6-6.5	0.727	1.2
35	≥6	≥6	6.6-7.5	0.524	0.868
50	≥6	≥6	7.7-8.6	0.387	0.641
70	≥12	≥12	9.3-10.2	0.268	0.443
95	≥15	≥15	11.0-12.0	0.193	0.32
120	≥18	≥15	12.3-13.5	0.153	0.253
150	≥18	≥15	13.7-15.0	0.124	0.206
185	≥30	≥30	15.3-16.8	0.0991	0.164
240	≥34	≥30	17.6-19.2	0.0754	0.125
300	≥34	≥30	19.7-21.6	0.0601	0.1
400	≥53	≥53	22.3-24.6	0.047	0.0778
500	≥53	≥53	25.3-27.6	0.0368	0.0605
630	≥53	≥53	28.7-32.5	0.0283	0.0469
800	≥53	≥53	--	0.0221	0.0367
1000	≥53	≥53	--	0.0176	0.0291

Package

150mm MV Power Cable 0
