3 core XLPE / TRXLPE insulation medium voltage armoued cable

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Certification: ISO9001, CE Model Number: MV

Detail Information

Insulation Material: XLPE Type: Medium Voltage
Application: Underground Conductor Material: Copper
Jacket: PE Product Name: 3 Core XLPE / TRXLPE Insulation Medium Voltage Armoued Cable
Rated Voltage: 1-35KV Conductor: Al/Cu
Core: 1 Core / 3 Core Sheath: PVC/PE
Color: Black/Red Certificate: ISO9001/ISO14001
Standard: IEC60502-2, BS 6622, NFC 33226, Etc. Package: Wooden Reel, Iron-wooden Reel, Steel Reel
High Light:

armoured electrical cable


electrical power cable

Product Description

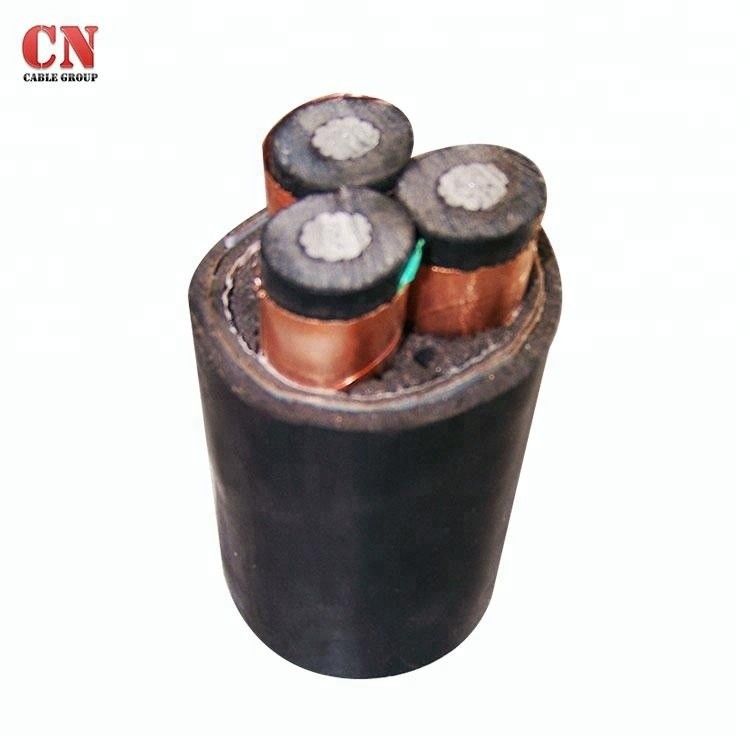

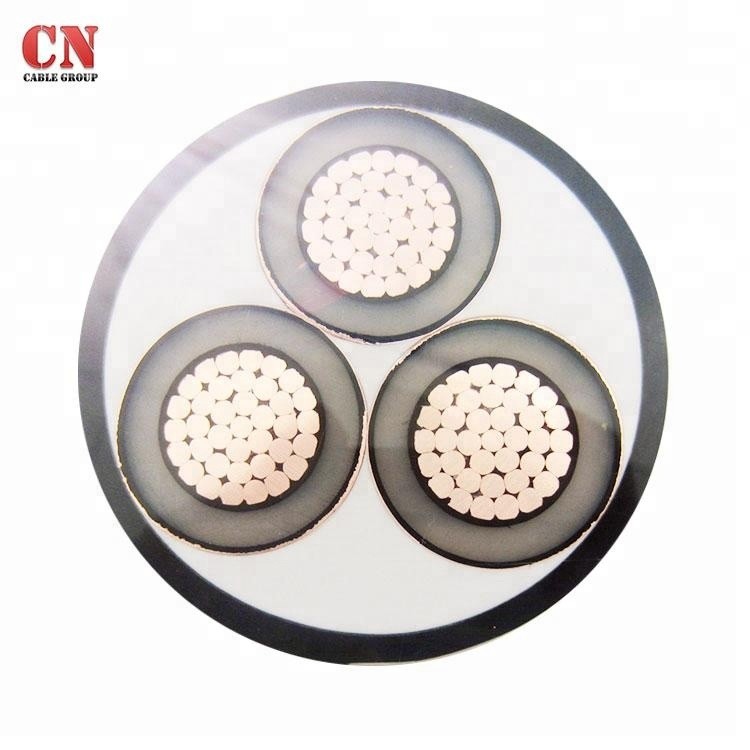

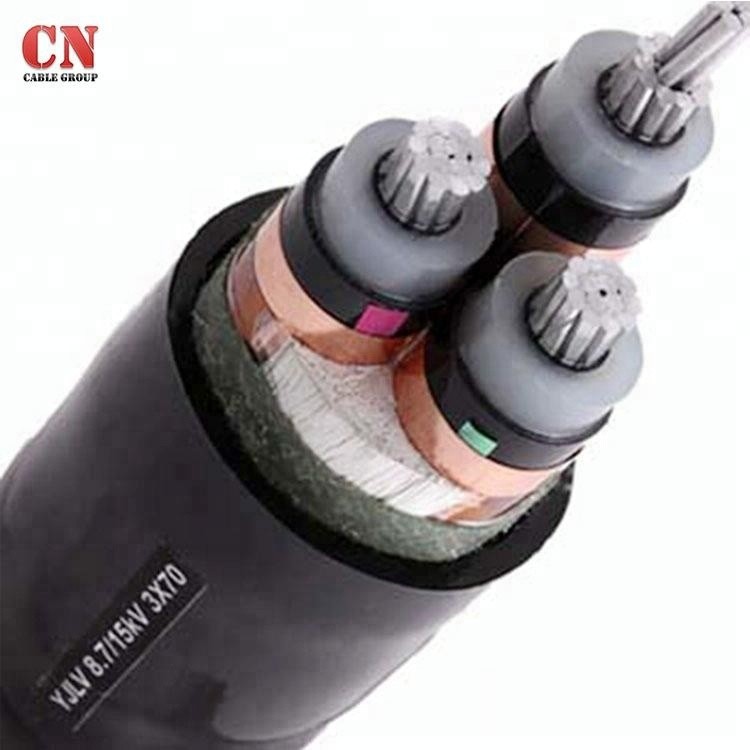

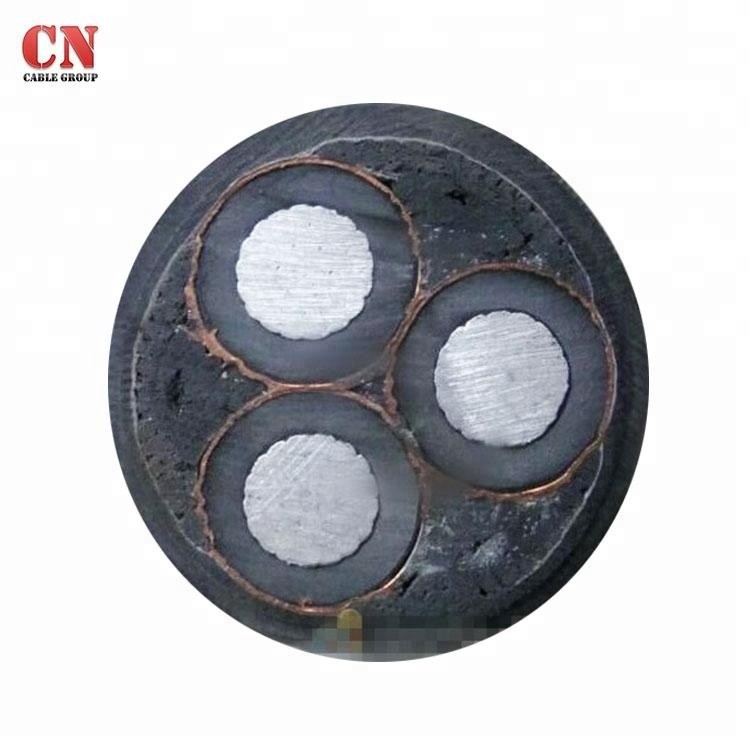

1/3 core XLPE / TRXLPE insulation medium voltage armoued cable

Product Description


The product is used in power transmission and  distribution line at voltage up to  46KV. It does not only have  excellent  electric, mechanical properties, but  also has powerful resistance against chemical corrosion, heat aging and environmental stress.


Applicable Standard:

We can produce according to standard IEC60502, SANS 1339, BS 6622, AS/NZS1429.1, NFC 33226, CSA C-68.3, ICEA S-93-639, ICEA S-94-649, CSA C68.5, IS 7098, etc.


Cable Characteristics:

Rated Voltage: 1KV to 35KV

Cross-section area: up to 1000 .

Conductor long-time operating temperature: 90℃

Short circuit conductor highest temperature: 250℃


Cable Structure:

Core Number: 1 core/ 3 Core

Conductor: Cu / AL

Insulation: XLPE/TRXLPE

Metallic screen: Cu tape/ Cu wire screen / Al-Plastic Tape screen

Armor type: AL Tape/AL Wire /STA / SWA

Outer sheath: PVC / PE/ LDPE / LLDPE/LSHF
