Low Voltage XLPE Insulated Power Cable R2V/XV/RV XLPE Insulation Power Cable
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Insulation Material: | PVC | Type: | Low Voltage |
---|---|---|---|
Application: | Underground | Conductor Material: | Copper |
Jacket: | PVC | Conductor: | Cu / Al |
Core Number: | 1,2,3,4,3+1,5,4+1 | Insulation: | XLPE/PE/PVC |
Armour: | STA/SWA/ATA/AWA | Outer Sheath: | PVC/PE/LSHF/LDPE&LLDPE/MDPE/HDPE |
Outer Characters: | Flame Retardant, Fire Resistant, LSHF | Rated Voltage: | 0.6/1KV |
Certificate: | ISO9001/ISO14001 | Standard: | IEC, BS, ICEA, CSA, NF, AS-NZS |
Product Name: | 4 Core 35mm2 Copper XLPE /PVC Insulated LDPE Sheath Power Cable | ||
High Light: | xlpe underground cable,xlpe copper cable |
Product Description
Application:
LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.
Applicable Standard:
We can produce according to standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc
Characters:
1. Rated voltage: 0.6/1KV
2. Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
3. Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation
In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulation.
Construction:

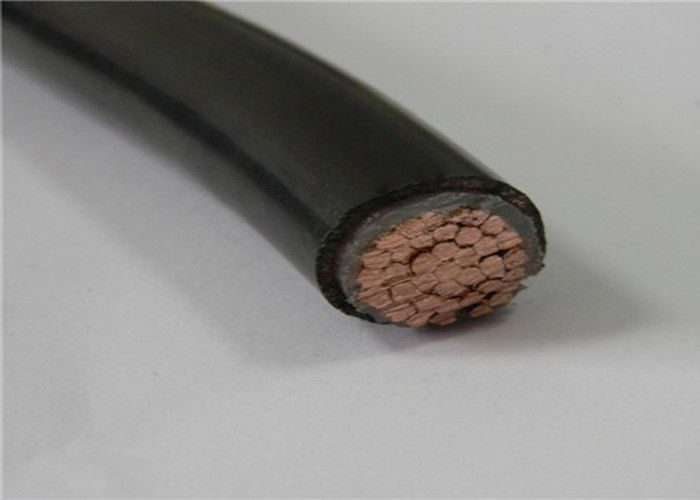

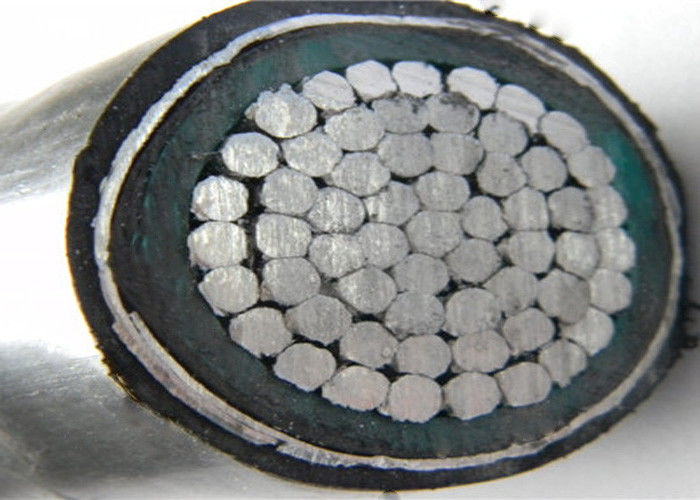

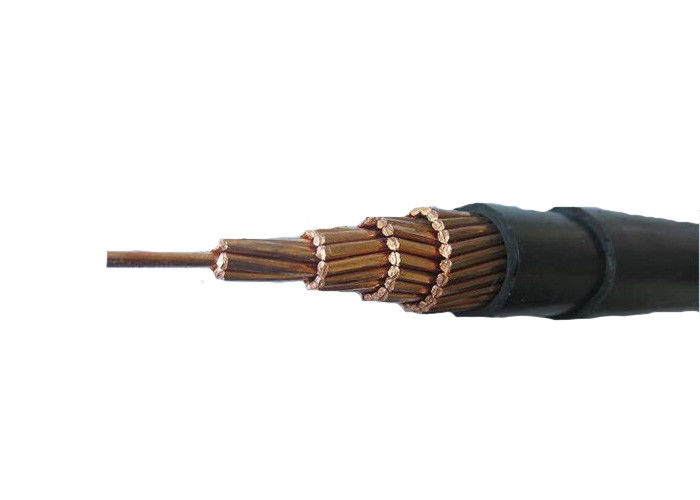

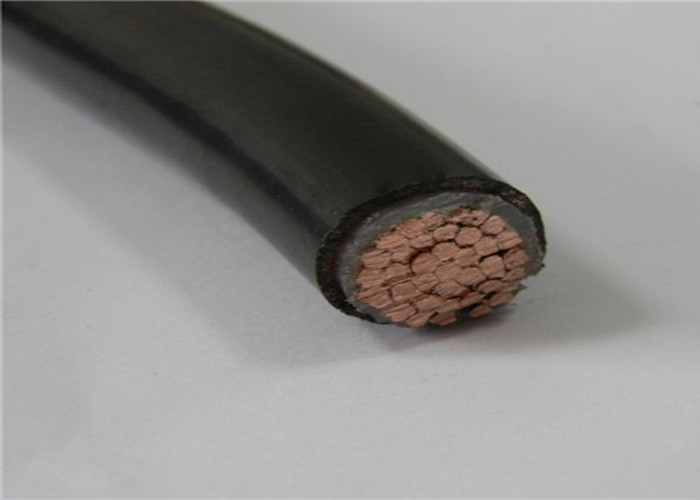

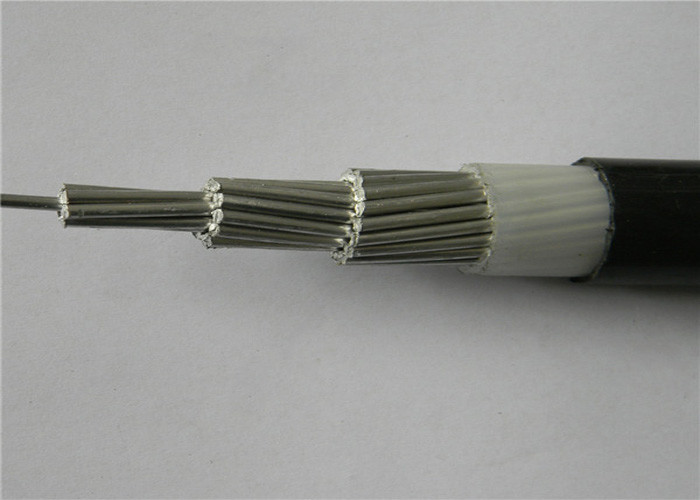

Conductor: Cu/Al (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC/PE/LSHF
Conductor Size | Stranding No. (Compacted Round) | Conductor Dia. | Max.D.C.resistance at 20℃ | ||
Cu | Al | Cu | Al | ||
mm² | No.s | No.s | mm | Ω/KM | Ω/KM |
25 | ≥6 | ≥6 | 5.6-6.5 | 0.727 | 1.2 |
35 | ≥6 | ≥6 | 6.6-7.5 | 0.524 | 0.868 |
50 | ≥6 | ≥6 | 7.7-8.6 | 0.387 | 0.641 |
70 | ≥12 | ≥12 | 9.3-10.2 | 0.268 | 0.443 |
95 | ≥15 | ≥15 | 11.0-12.0 | 0.193 | 0.32 |
120 | ≥18 | ≥15 | 12.3-13.5 | 0.153 | 0.253 |
150 | ≥18 | ≥15 | 13.7-15.0 | 0.124 | 0.206 |
185 | ≥30 | ≥30 | 15.3-16.8 | 0.0991 | 0.164 |
240 | ≥34 | ≥30 | 17.6-19.2 | 0.0754 | 0.125 |
300 | ≥34 | ≥30 | 19.7-21.6 | 0.0601 | 0.1 |
400 | ≥53 | ≥53 | 22.3-24.6 | 0.047 | 0.0778 |
500 | ≥53 | ≥53 | 25.3-27.6 | 0.0368 | 0.0605 |
630 | ≥53 | ≥53 | 28.7-32.5 | 0.0283 | 0.0469 |
800 | ≥53 | ≥53 | 0.0221 | 0.0367 | |
1000 | ≥53 | ≥53 | 0.0176 | 0.0291 |
