Triplex Service Drop Cable Acsr Stranded Conductor Messenger Abc Cable

Minimum Order Quantity : 1000 Meter/M Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information

Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: Triplex Service Drop Wire Acsr Stranded Conductor Messenger Abc Cable
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
High Light:

aluminum service cable

,

service drop wire

Product Description

Triplex service drop wire acsr stranded conductor messenger abc cable

Product Description

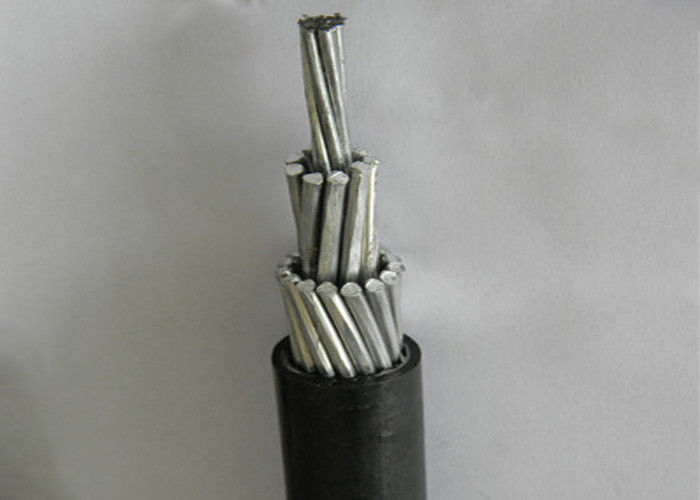

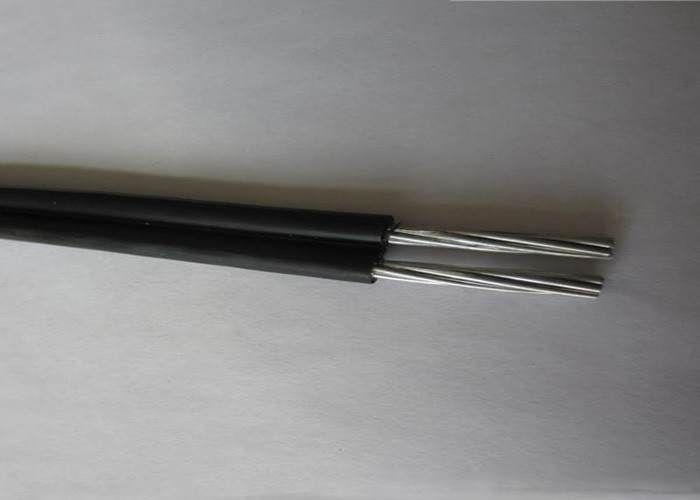

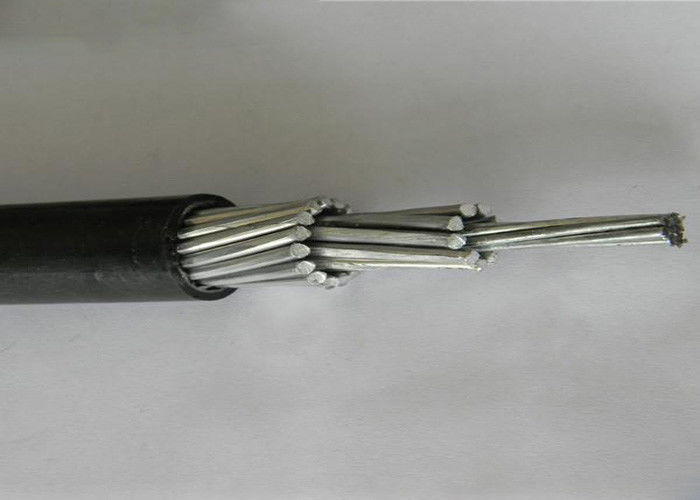

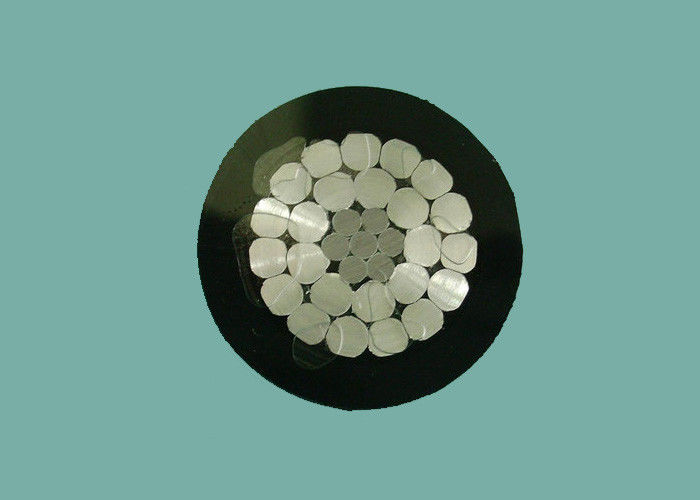

abc cable.jpg



Application:

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃



Applicable Standard:

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474





Cable Structure:

Conductor: Al/Al Alloy/Cu

Insulation: XLPE/PE/PVC









ACSR Conductor Supported Service Drop Cable- ICEA S-76-474







Code Name Size Al Phase Core ACSR Messenger Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area Str. No. Dia. Insulation Nominal Thickness Cross-section Area Al Wire St Wire Stranded Dia.

Str.

No.

Dia. Str. No. Dia.
AWG/MCM mm2 No.s mm mm mm2 No.s mm No.s mm mm KN mm kg/km
DUPLEX
Shepherd 1X6+6 13.3 7 4.68 1.14 13.3 6 1.68 1 1.68 5.04 5.3 12 109
Terrier 1X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.3 14.34 165
Chow 1X2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01 12.7 17.49 254
Bull 1X1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11 19.5 22.35 408
TRIPLEX
Voluta 2X6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04 5.3 13.58 166
Periwinkle 2X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.3 16.03 248
Conch 2X2+6 33.6 7 7.2 1.14 13.3 6 2.67 1 2.67 8.01 12.7 19.36 377
Neritina 2X1/0+1/0 53.5 7 9.2 1.52 53.51 6 3.37 1 3.34 10.02 19.5 24.77 607
Triton 2X2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34 23.6 27.3 751
Mursia 2X3/0+3/0 85.0 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75 29.4 30.18 931
Zuzara 2X4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31 37.1 33.31 1156
Limpet 2X336.4+336.4 170.4 19 16.56 2.03 170.46 18 3.47 1 3.47 17.35 38.6 42.07 1704
Strombus 2X4+6 21.1 7 5.7 1.14 13.3 6 1.68 1 1.68 5.04 5.3 15.08 216
Cockle 2X2+4 33.6 7 7.2 1.14 21.15 6 2.12 1 2.12 6.36 8.3 18.18 327
Janthina 2X1/0+2 53.5 7 9.2 1.52 33.62 6 2.67 1 2.67 8.01 12.7 23.33 527
Ranella 2X1/0+2 53.5 19 9.2 1.52 33.62 6 2.67 1 2.67 8.01 12.7 23.33 527
Clio 2X2/0+1 67.4 19 10.3 1.52 42.41 6 3.00 1 3.00 9 15.8 25.62 649
Aega 2X3/0+1/0 85.0 19 11.6 1.52 53.51 6 3.37 1 3.37 10.11 19.5 28.28 803
Cerapus 2X4/0+2/0 107.2 19 13 1.52 67.44 6 3.78 1 3.78 11.34 23.6 31.18 994
Cowry 2X336.4+4/0 170.4 19 16.59 2.03 107.22 6 4.77 1 4.77 14.31 37.1 39.93 1597
QUADRUPLEX
Chola 3X6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04 5.30 15.61 222
Hackney 3X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.30 18.29 329
Pallomino 3X2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01 12.70 22 497
Costena 3X1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11 19.50 28.26 802
Grullo 3X2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34 23.60 31 987
Suffolk 3X3/0+3/0 85.0 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75 29.40 34.2 1222
Appaloosa 3X4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31 37.10 37.68 1513
Gelding 3X336.4+4/0 170.4 19 16.56 2.03 107.22 6 4.77 1 4.77 14.31 37.10 45.97 2174
