Aerial Bunched Cable 2 Awg Xlpe Service Drop Cable For Net Services

Minimum Order Quantity : 1000 Meter/M Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information

Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: Aerial Bunched Cable 2 Awg Xlpe Abc Cable Cable For Net Services
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
Highlight:

aluminum service cable

,

service drop wire

Product Description

Aerial bunched cable 2 awg xlpe abc cable cable for net services

Product Description

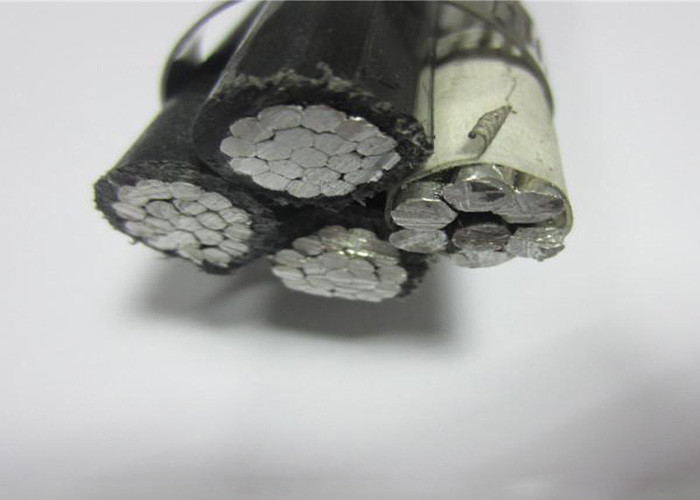

abc cable.jpg


Application:
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃

Applicable Standard:
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474


Cable Structure:
Conductor: Al/Al Alloy/Cu
Insulation: XLPE/PE/PVC








All Aluminum Conductor Covered Line Wire







Code Size

Nominal

Cross

Section

Conductor

Insulation

Nominal

Thickness

Approx. overall dia. Approx. weight 20℃DC resistance Rated tensile strength
Single wire

Strands

Dia.

No. Dia.
AWG/kcmil mm2 Nos mm mm mm mm kg/km Ω/km daN
Plum 6 13.29 7 1.55 4.65 0.76 6.17 49 2.1692 249
Apricot 4 21.16 7 1.96 5.38 0.76 6.9 72 1.3624 396
Peach 2 33.61 7 2.47 6.78 1.14 9.06 120 0.8577 597
Nectarine 1 42.39 7 2.78 7.63 1.52 10.67 159 0.6801 732
Quince 1/0 53.48 7 3.12 8.56 1.52 11.6 194 0.539 873
Haw 1/0 53.48 19 1.89 8.65 1.52 11.69 194 0.539 873








Aluminum Alloy 6201-T81 Conductor Covered Line Wire- ICEA S-70-547







Code Size

Nominal

Cross

Section

Conductor

Insulation

Nominal

Thickness

Approx. overall diameter Approx. weight 20℃ DC resistance Rated tensile strength

AWG/

kcmil

Single wire

Stranded

Dia.

No. Dia.
mm2 Nos mm mm mm mm kg/km Ω/km daN
Maple 6 15.51 7 1.68 5.04 0.76 6.56 57 2.1598 492
Hornbeam 4 24.67 7 2.12 6.36 0.76 7.88 85 1.3557 783
Linden 2 39.26 7 2.67 8.01 1.14 10.29 140 0.8547 1250
Oilnut 1/0 62.46 7 3.37 10.11 1.52 13.15 226 0.5365 1978
Waterash 2/0 78.75 7 3.78 11.34 1.52 14.38 276 0.4264 2398
Shellbark 3/0 99.20 7 4.25 12.75 1.52 15.79 339 0.3373 3017
Planetree 4/0 125.10 7 4.77 14.31 1.52 17.35 417 0.2678 3807









Aluminum Conductor Steel-reinforced Covered Line Wire- ICEA S-70-547







Code Size Nominal Cross Section Conductor
Single wire

Strands

Dia.

Al St
Al St No. Dia. No. Dia.
AWG/kcmil mm2 mm2 Nos mm Nos mm mm
Walnut 6 13.29 2.19 6 1.68 1 1.67 5.03
Butternut 4 21.16 3.55 6 2.12 1 2.13 6.37
Hickory 4 21.16 5.35 7 1.96 1 2.61 6.53
Pignut 2 33.61 5.61 6 2.67 1 2.67 8.01
Beech 2 33.61 8.52 7 2.47 1 3.29 8.23
Chestnut 1 42.39 7.10 6 3.00 1 3.01 9.01
Almond 1/0 53.48 8.90 6 3.37 1 3.37 10.11
