ABC aerial bundle assembled overhead cable 2x95mm 2x70mm 2x50mm

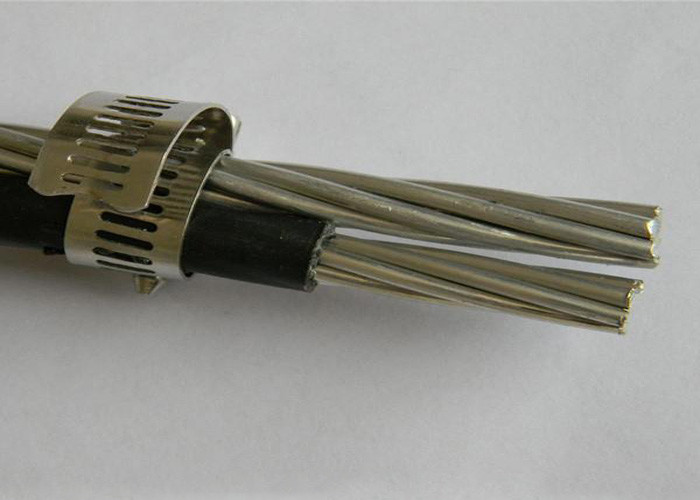

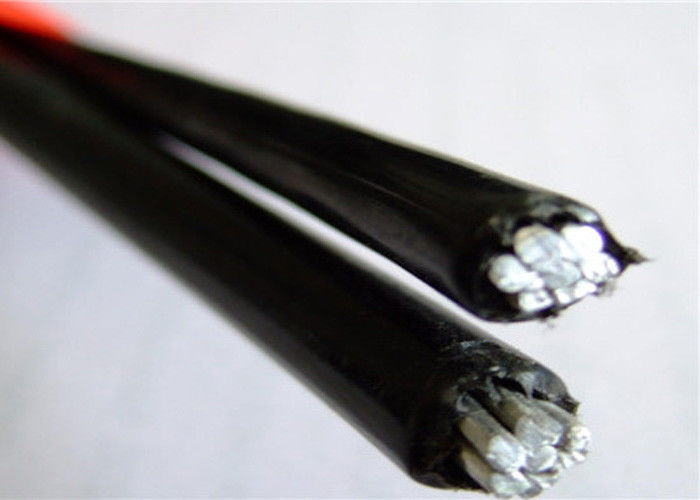

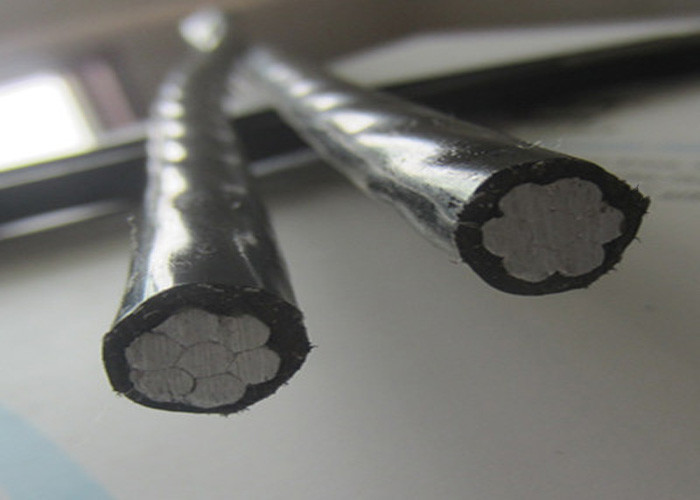

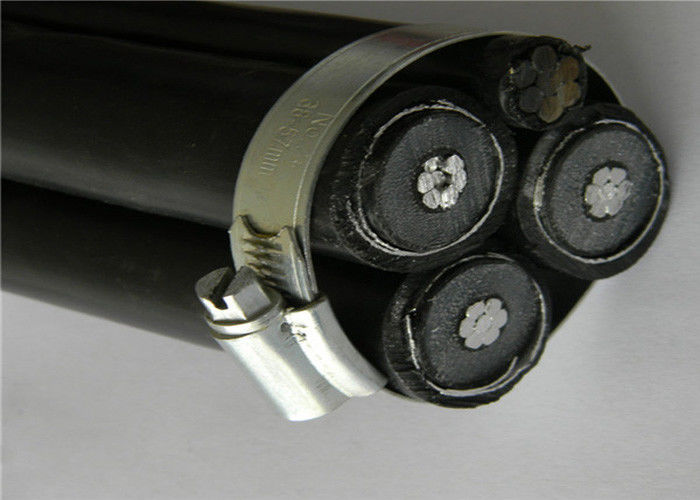

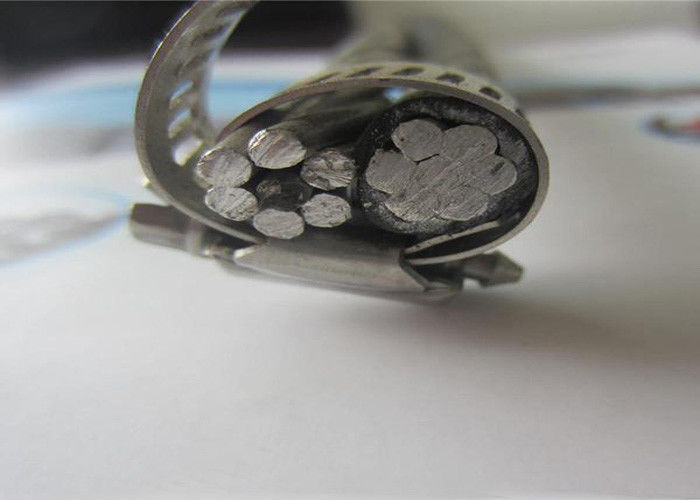

ABC aerial bundle assembled overhead cable 2x95mm 2x70mm 2x50mm ABC aerial bundle assembled overhead cable 2x95mm 2x70mm 2x50mm ABC aerial bundle assembled overhead cable 2x95mm 2x70mm 2x50mm ABC aerial bundle assembled overhead cable 2x95mm 2x70mm 2x50mm ABC aerial bundle assembled overhead cable 2x95mm 2x70mm 2x50mm
Contact Now

ABC aerial bundle assembled overhead cable 2x95mm 2x70mm 2x50mm

Minimum Order Quantity : 1000 Meter/M Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information
Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: ABC Aerial Bundle Assembled Overhead Cable 2x95mm 2x70mm 2x50mm
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
Highlight:

lv abc cable

,

aerial bundled cable

Product Description

ABC aerial bundle assembled overhead cable 2x95mm 2x70mm 2x50mm

Product Description

abc cable.jpg


Application:
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃

Applicable Standard:
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474


Cable Structure:
Conductor: Al/Al Alloy/Cu
Insulation: XLPE/PE/PVC








0.6/1KV- Bundle Assembled Insulated Cables-NF C 33-209





Type Size Conductor Insulation Approx. Insulated Dia.
Stranding No. Max. Conductor Resistance 20℃ Conductor Dia. Rated Strength Average Thickness
mm² Ω/km mm KN mm mm
Phase Core or Street Lighting Core 16 7 1.91 4.6-5.2 1.9 1.2 7.5
25 7 1.2 5.6-6.5 1.4 9
35 Min.6 0.868 6.6-7.5 1.6 10.2
50 Min.6 0.641 7.7-8.6 1.6 11.2
70 Min.12 0.443 9.3-10.2 1.8 13.2
95 Min.15 0.32 11.0-12.0 1.8 15
120 Min.15 0.253 12.3-13.5 1.8 16.2
150 Min.15 0.206 13.7-15.0 1.7 18.2
Neutral Core 54.6 7 0.63 9.2-9.6 16.6 1.6 12.6
70 7 0.5 10.0-10.2 20.5 1.5 14
95 19 0.343 12.2-12.9 27.5 1.6 16.1



Core No.x Conductor Size Approx. Cable Dia. Approx. Cable Weight Core No.x Conductor Size Approx. Cable Dia. Approx. Cable Weight
mm² mm kg/km mm² mm kg/km
2×16 15.00 135 4×16 18.00 270
2×25 18.00 200 4×25 21.00 400
3×25+54.6+16 25.46 566 3×25+54.6+2×16 27.33 632
3×35+54.6+16 27.73 677 3×35+54.6+2×16 29.43 744
3×50+54.6+16 29.51 814 3×50+54.6+2×16 31.08 880
3×50+54.6+25 30.32 848 3×50+54.6+2×25 32.58 948
3×50+50+16 29.27 799 3×50+50+2×16 30.85 865
3×50+50+25 30.08 833 3×50+50+2×25 32.35 933
3×70+54.6+16 32.91 1025 3×70+54.6+2×16 34.23 1090
3×70+54.6+25 33.72 1058 3×70+54.6+2×25 35.73 1158
3×70+70+16 33.70 1080 3×70+70+2×16 34.95 1145
3×70+70+25 34.51 1113 3×70+70+2×25 36.45 1213
3×95+54.6+16 35.51 1252 3×95+54.6+2×16 36.63 1319
3×95+54.6+25 36.32 1286 3×95+54.6+2×25 38.13 1387
3×95+95+16 37.37 1387 3×95+95+2×16 38.35 1453
3×95+95+25 38.18 1421 3×95+95+2×25 39.85 1522
3×120+54.6+16 37.77 1478 3×120+54.6+2×16 38.73 1544
3×120+54.6+25 38.58 1512 3×120+54.6+2×25 40.23 1611
3×120+95+16 39.64 1612 3×120+95+2×16 40.45 1679
3×120+95+25 40.45 1646 3×120+95+2×25 41.95 1746
3×150+54.6+16 41.01 1779 3×150+54.6+2×16 41.73 1845
3×150+54.6+25 41.82 1813 3×150+54.6+2×25 43.23 1913
3×150+95+16 42.88 1913 3×150+95+2×16 43.45 1980
3×150+95+25 43.69 1948 3×150+95+2×25 44.95 2048
