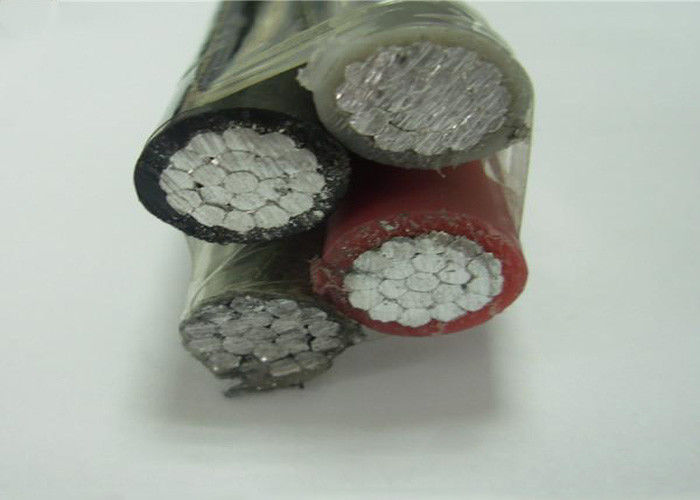

Four Core 33KV ABC Power Cable AAC Conductor Aerial Bundle Cable

Minimum Order Quantity : 1000m Packaging Details : Roll/Wooden Reel/Iron-wooden Reel/Steel Reel
Delivery Time : 1-4 weeks Payment Terms : L/C, T/T, Western Union
Supply Ability : 50000 Meter/Meters per Month SAC space aerial cable
Place of Origin: Henan, China Brand Name: CN Cable Group
Certification: ISO9001, CE Model Number: SAC SPACED AERIAL CABLE

Detail Information

Name: AAC Conductor Aerial Bundle Cable Conductor: AAC Conductor
Insulation: XLPE Jacket: PE
Sample: Freely Supplied Core: 1, 2, 3
Voltage: 33KV
High Light:

33KV ABC Power Cable

,

Four Core ABC Power Cable

,

AAC Conductor Aerial Bundle Cable

Product Description

Four Core 33KV ABC Power Cable AAC Conductor Aerial Bundle Cable




1. ABC Power Cable Application
The cable is used for overhead power transmission and distribution lines up to 33 KV It can be used in Areas with trees , Areas with right-of-way concerns, Alley construction,Areas with ice storms,Areas of high winds,Contaminated areas, etc.


2. ABC Power Cable Applicable Standard

ASTM B230,ICEA S 66-524 , IEC 60228, IEC60502-2




3. ABC Power Cable Structure:
AAC Conductor , XLPE/ Insulation , PE Outer Jacket



20KV SPACER CABLE

Cable Size Conductor Construction Conductor shield thickness Insulation thickness Outer Jacket thickness Cable dia. Conductor Resistance
Stranding No. Overall dia.
mm2 mm mm mm mm mm mm Ω/km
50 ≥6 7.7-8.6 0.4 3.2 3.2 21.8 0.641
70 ≥12 9.3-10.2 0.4 3.2 3.2 23.5 0.443
95 ≥15 11.0-12.0 0.4 3.2 3.2 25.2 0.32
120 ≥15 12.3-13.5 0.4 3.2 3.2 26.6 0.253
150 ≥18 13.7-15.0 0.4 3.2 3.2 28 0.206
185 ≥30 15.3-16.8 0.4 3.2 3.2 29.8 0.164








33KV SPACER CABLE

Cable Size Conductor Construction Conductor shield thickness Insulation thickness Outer Jacket thickness Cable dia. Conductor Resistance
Stranding No. Overall dia.
mm2 mm mm mm mm mm mm Ω/km
50 ≥6 7.7-8.6 0.4 4.5 3.2 24.4 0.641
70 ≥12 9.3-10.2 0.4 4.5 3.2 26.1 0.443
95 ≥15 11.0-12.0 0.4 4.5 3.2 27.8 0.32
120 ≥15 12.3-13.5 0.4 4.5 3.2 29.2 0.253
150 ≥18 13.7-15.0 0.4 4.5 3.2 30.6 0.206
185 ≥30 15.3-16.8 0.4 4.5 3.2 32.4 0.164





Packing&Shipping


Packing material:

Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.



Shipping:

Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.

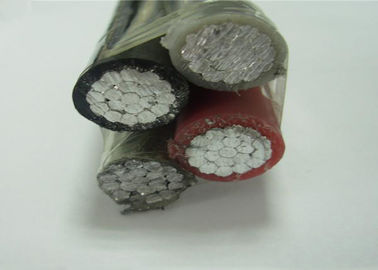

Four Core 33KV ABC Power Cable AAC Conductor Aerial Bundle Cable 0
