AAC AAAC ACSR Conductor Triplex Aerial Cable 16mm Aluminum Aerial Cable

Minimum Order Quantity : 1000 Meter/M Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information

Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: AAC AAAC ACSR Conductor Xlpe Cable 16mm Abc Cable Specification
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
High Light:

lv abc cable

,

aluminum aerial cable

Product Description

AAC AAAC ACSR conductor xlpe cable 16mm abc cable specification

Product Description

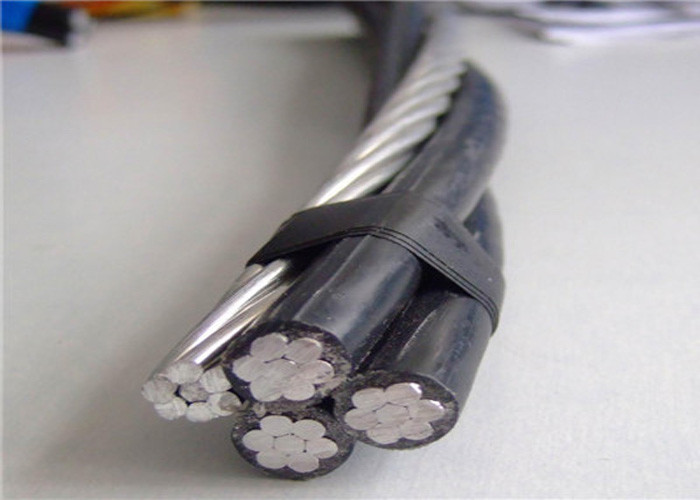

abc cable.jpg


Application:
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃

Applicable Standard:
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474


Cable Structure:
Conductor: Al/Al Alloy/Cu
Insulation: XLPE/PE/PVC








All Aluminum Conductor Covered Line Wire



Code Size

Nominal

Cross

Section

Conductor

Insulation

Nominal

Thickness

Approx. overall dia. Approx. weight 20℃DC resistance Rated tensile strength
Single wire

Strands

Dia.

No. Dia.
AWG/kcmil mm2 Nos mm mm mm mm kg/km Ω/km daN
Plum 6 13.29 7 1.55 4.65 0.76 6.17 49 2.1692 249
Apricot 4 21.16 7 1.96 5.38 0.76 6.9 72 1.3624 396
Peach 2 33.61 7 2.47 6.78 1.14 9.06 120 0.8577 597
Nectarine 1 42.39 7 2.78 7.63 1.52 10.67 159 0.6801 732
Quince 1/0 53.48 7 3.12 8.56 1.52 11.6 194 0.539 873
Haw 1/0 53.48 19 1.89 8.65 1.52 11.69 194 0.539 873








Aluminum Alloy 6201-T81 Conductor Covered Line Wire- ICEA S-70-547







Code Size

Nominal

Cross

Section

Conductor

Insulation

Nominal

Thickness

Approx. overall diameter Approx. weight 20℃ DC resistance Rated tensile strength

AWG/

kcmil

Single wire

Stranded

Dia.

No. Dia.
mm2 Nos mm mm mm mm kg/km Ω/km daN
Maple 6 15.51 7 1.68 5.04 0.76 6.56 57 2.1598 492
Hornbeam 4 24.67 7 2.12 6.36 0.76 7.88 85 1.3557 783
Linden 2 39.26 7 2.67 8.01 1.14 10.29 140 0.8547 1250
Oilnut 1/0 62.46 7 3.37 10.11 1.52 13.15 226 0.5365 1978
Waterash 2/0 78.75 7 3.78 11.34 1.52 14.38 276 0.4264 2398
Shellbark 3/0 99.20 7 4.25 12.75 1.52 15.79 339 0.3373 3017
Planetree 4/0 125.10 7 4.77 14.31 1.52 17.35 417 0.2678 3807







Aluminum Conductor Steel-reinforced Covered Line Wire- ICEA S-70-547









Code Size Nominal Cross Section Conductor
Single wire

Strands

Dia.

Al St
Al St No. Dia. No. Dia.
AWG/kcmil mm2 mm2 Nos mm Nos mm mm
Walnut 6 13.29 2.19 6 1.68 1 1.67 5.03
Butternut 4 21.16 3.55 6 2.12 1 2.13 6.37
Hickory 4 21.16 5.35 7 1.96 1 2.61 6.53
Pignut 2 33.61 5.61 6 2.67 1 2.67 8.01
Beech 2 33.61 8.52 7 2.47 1 3.29 8.23
Chestnut 1 42.39 7.10 6 3.00 1 3.01 9.01
Almond 1/0 53.48 8.90 6 3.37 1 3.37 10.11






































Click for more information





Related Products

.jpg




ABC CABLE 2 * 16mm2.png ABC CABLE WITH BARE NEUTRAL MESSENGER.jpg ABC CABLE WITH INSULATED NEUTRAL WIRE.png ABC CABLE NFC33209.png ABC CABLE FOR AMERICA MARKET.png

ABC CABLE 2×16mm2

ABC CABLE WITH BARE NEUTRAL MESSENGER

ABC CABLE WITH INSULATED NEUTRAL WIRE

ABC CABLE NFC33209

ABC CABLE FOR AMERICA MARKET

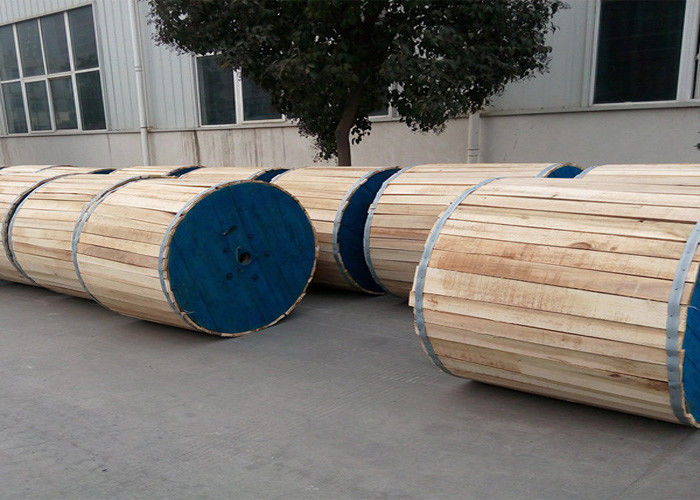

Packaging & Shipping


Company Information
Our Certificate
AAC AAAC ACSR Conductor Triplex Aerial Cable 16mm Aluminum Aerial Cable 9
Our Services

FAQ



Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.

Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .

Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
