Bare aluminum electrical ASTM 477 MCM conductor AAC cable with all size

Minimum Order Quantity : 200 Meter/Me Price : US $1-20 / Meters | 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN CABLE GROUP
Model Number: AAC

Detail Information

Insulation Material: N/A Type: Medium Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: N/A Product Name: Bare Aluminum Electric ASTM 477 MCM Conductor AAC Cable With All Size
Voltage: High/Medium/Low Voltage Conductor: All Aluminum Conductor
Construction: Concentrically Stranded Standard: IEC61089, ASTM B231, AAC BS215
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Certificate: ISO9001
OEM Or ODM: YES
High Light:

all aluminum alloy conductor

,

transmission line conductor

Product Description

Bare aluminum electrical ASTM 477 MCM conductor AAC cable with all size

Product Description

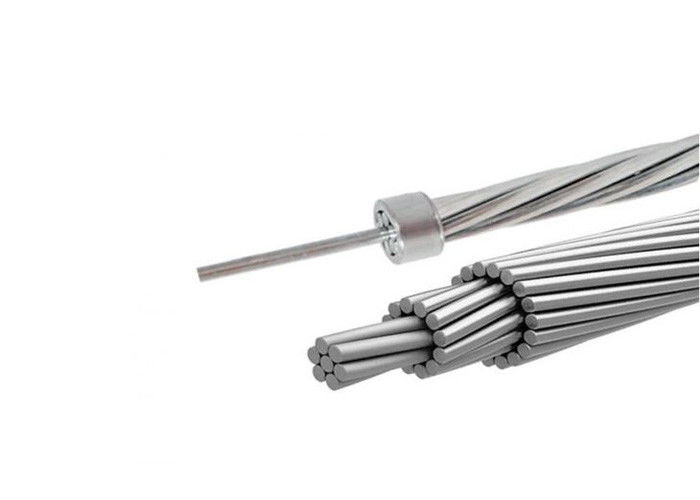

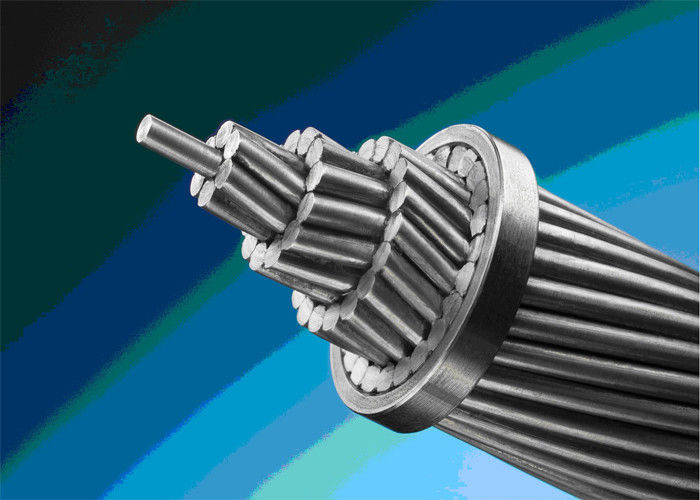

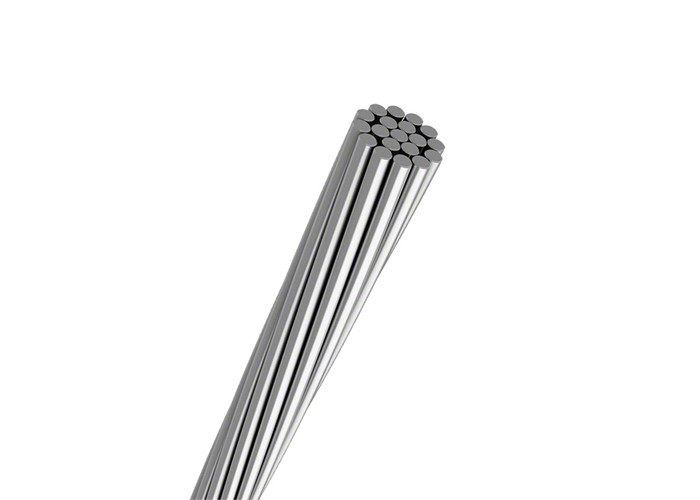

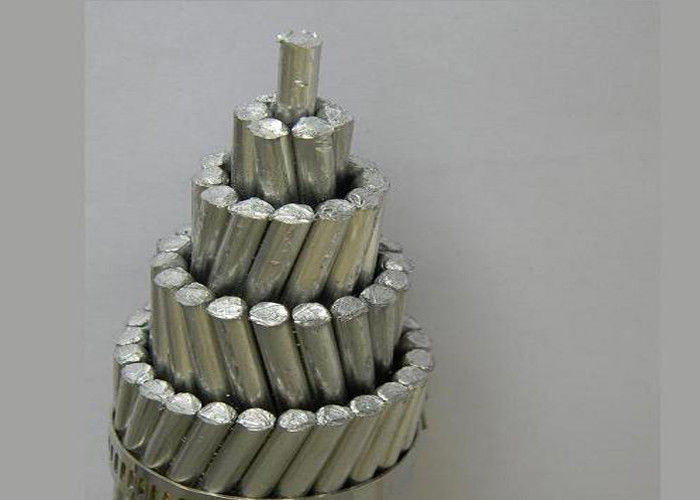

Bare conductor.jpg



Application:

Overhead transmission and primary and secondary distribution.



Applicable Standard:

IEC61089, ASTM B231, AAC BS215



Production Scope:

Max. size 2000mm2( 4000MCM)/ Max. str. no. 127 wires



Construction:

Aluminum 1350-H19 wires, concentrically stranded











AAC-ASTM B231









Total Area Stranding No. & Wire Dia. Approx. Overall Dia. Approx. Weight Nominal breaking Strength Maximum D.C. Resistance at 20℃
AWG/MCM mm2 No.s mm  mm Kg/km daN Ω/km
6 13.29 7 1.55 4.65 36 249 2.1692
4 21.16 7 1.96 5.88 58 396 1.3624
2 33.61 7 2.47 7.41 92 597 0.8577
1 42.39 7 2.78 8.34 117 732 0.6801
1/0 53.48 7 3.12 9.36 148 873 0.5390
2/0 67.42 7 3.5 10.50 186 1100 0.4276
3/0 85.03 7 3.93 11.79 234 1347 0.3390
4/0 107.23 7 4.42 13.26 296 1698 0.2688
250 126.68 19 2.91 14.55 348 2062 0.2275
250 126.68 7 4.8 14.40 349 2007 0.2275
266.8 135.19 19 3.01 15.05 373 2200 0.2133
266.8 135.19 7 4.96 14.88 373 2141 0.2133
300 152.01 19 3.19 15.95 419 2403 0.1896
336.4 170.45 19 3.38 16.90 470 2695 0.1691
350 177.35 19 3.45 17.25 490 2804 0.1625
397.5 201.41 19 3.67 18.35 554 3184 0.1431
450 228.02 19 3.91 19.55 629 3499 0.1264
477 241.70 37 3.88 27.16 1206 3849 0.1193
477 241.70 19 4.02 20.10 665 3708 0.1193
500 253.35 37 2.95 20.65 697 4035 0.1138
500 253.35 19 4.12 20.60 698 3888 0.1138
556.5 281.98 19 4.35 21.75 779 4327 0.1022
556.5 281.98 37 3.11 21.77 775 4362 0.1022
600 304.02 37 3.23 22.61 836 4703 0.0948
636 322.26 37 3.33 23.31 888 4985 0.0894
700 354.69 61 2.72 24.48 977 5146 0.0813
715.5 362.54 61 2.75 24.75 999 5874 0.0795
750 380.03 61 2.82 25.38 1050 5985 0.0759
750 380.03 37 3.62 25.34 1050 5875 0.0759
795 402.83 61 2.9 26.10 1122 6345 0.0715
795 402.83 37 3.72 26.04 1120 6232 0.0715
900 456.03 61 3.09 27.81 1274 6978 0.0632
900 456.03 37 3.96 27.72 1269 6848 0.0632
954 483.39 61 3.18 28.62 1349 7896 0.0596
954 483.39 37 4.08 28.56 1347 7258 0.0596
1000 506.70 61 3.25 29.25 1409 7753 0.0569
1000 506.70 37 4.18 29.26 1414 7608 0.0569
1033.5 523.67 61 3.31 29.79 1461 8012 0.0550
1033.5 523.67 37 4.24 29.68 1454 7863 0.0550
1113 563.96 61 3.43 30.87 1569 8628 0.0511
1192.5 604.24 61 3.55 31.95 1681 9245 0.0477
1272 644.52 61 3.67 33.03 1797 9861 0.0477
1351.5 684.81 61 3.78 34.02 1906 10478 0.0421
1431 725.09 61 3.89 35.01 2018 10768 0.0398
1590 805.65 61 4.01 36.09 2145 11964 0.0358
1750 886.73 61 4.3 38.70 2466 13168 0.0325
2000 1013.40 91 3.76 41.36 2813 15300 0.0285
2500 1266.75 91 4.21 46.31 3527 18700 0.0230
3000 1520.10 127 3.9 50.70 4224 22500 0.0192
3500 1773.45 127 4.21 54.73 4922 26200 0.0166
