600V Quadruplex Service Drop Cable 2AWG 4AWG 2/0AWG 4/0AWG 350MCM

Minimum Order Quantity : 1000 Meter/M Price : US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN
Model Number: ABC cable

Detail Information

Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: High Quality Duplex Overhead Power Cable 4 Core 95mm ABC Cable
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
High Light:

lv abc cable

,

aerial bundled cable

Product Description

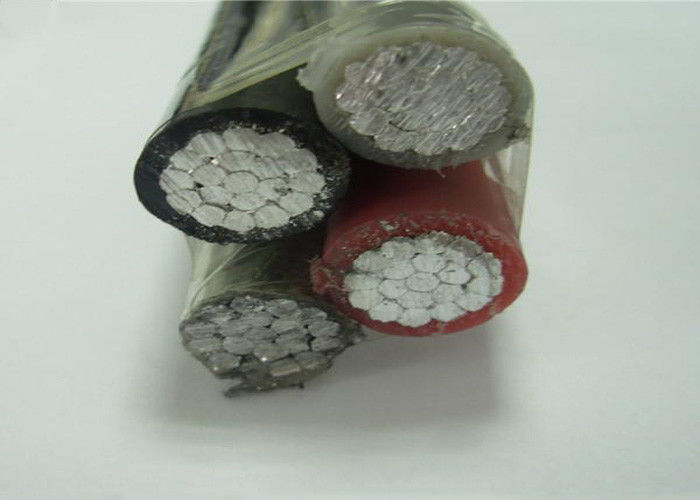

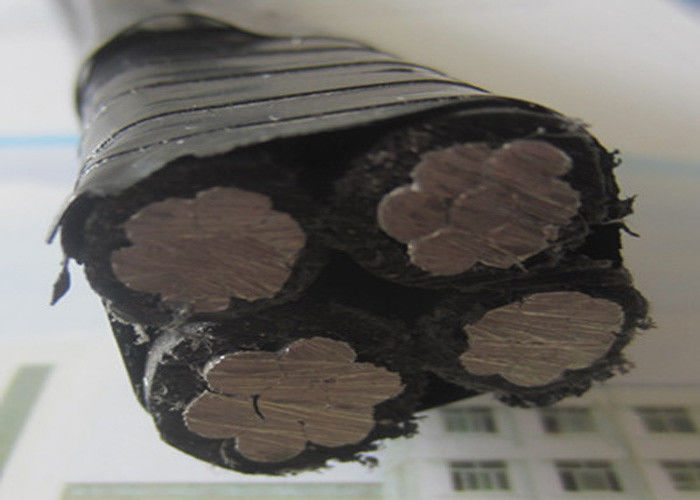

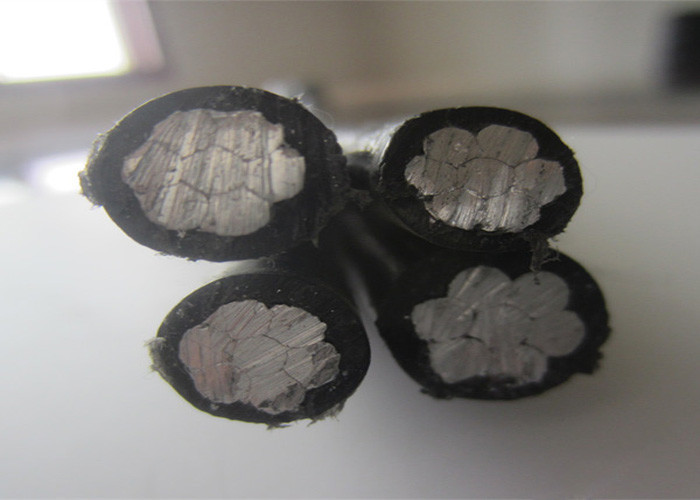

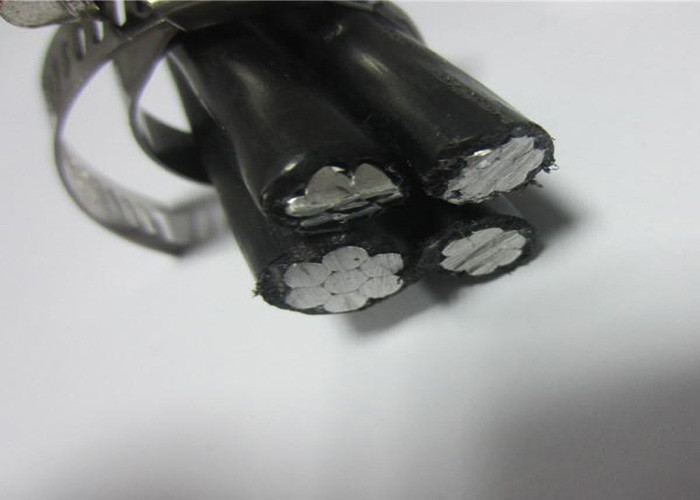

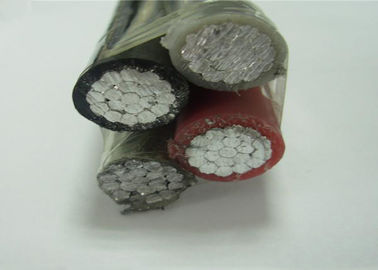

600V Quadruplex Service Drop Cable 2AWG 4AWG 2/0AWG 4/0AWG 350MCM

Product Description

abc cable.jpg



Application:

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃



Applicable Standard:

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474





Cable Structure:

Conductor: Al/Al Alloy/Cu

Insulation: XLPE/PE/PVC







Product date sheet





Type Size Conductor Insulation Approx. Insulated Dia.
Stranding No. Max. Conductor Resistance 20℃ Conductor Dia. Rated Strength Average Thickness
mm² Ω/km mm KN mm mm
Phase Core or Street Lighting Core 16 7 1.91 4.6-5.2 1.9 1.2 7.5
25 7 1.2 5.6-6.5 1.4 9
35 Min.6 0.868 6.6-7.5 1.6 10.2
50 Min.6 0.641 7.7-8.6 1.6 11.2
70 Min.12 0.443 9.3-10.2 1.8 13.2
95 Min.15 0.32 11.0-12.0 1.8 15
120 Min.15 0.253 12.3-13.5 1.8 16.2
150 Min.15 0.206 13.7-15.0 1.7 18.2
Neutral Core 54.6 7 0.63 9.2-9.6 16.6 1.6 12.6
70 7 0.5 10.0-10.2 20.5 1.5 14
95 19 0.343 12.2-12.9 27.5 1.6 16.1



Core No.x Conductor Size Approx. Cable Dia. Approx. Cable Weight Core No.x Conductor Size Approx. Cable Dia. Approx. Cable Weight
mm² mm kg/km mm² mm kg/km
2×16 15.00 135 4×16 18.00 270
2×25 18.00 200 4×25 21.00 400
3×25+54.6+16 25.46 566 3×25+54.6+2×16 27.33 632
3×35+54.6+16 27.73 677 3×35+54.6+2×16 29.43 744
3×50+54.6+16 29.51 814 3×50+54.6+2×16 31.08 880
3×50+54.6+25 30.32 848 3×50+54.6+2×25 32.58 948
3×50+50+16 29.27 799 3×50+50+2×16 30.85 865
3×50+50+25 30.08 833 3×50+50+2×25 32.35 933
3×70+54.6+16 32.91 1025 3×70+54.6+2×16 34.23 1090
3×70+54.6+25 33.72 1058 3×70+54.6+2×25 35.73 1158
3×70+70+16 33.70 1080 3×70+70+2×16 34.95 1145
3×70+70+25 34.51 1113 3×70+70+2×25 36.45 1213
3×95+54.6+16 35.51 1252 3×95+54.6+2×16 36.63 1319
3×95+54.6+25 36.32 1286 3×95+54.6+2×25 38.13 1387
3×95+95+16 37.37 1387 3×95+95+2×16 38.35 1453
3×95+95+25 38.18 1421 3×95+95+2×25 39.85 1522
3×120+54.6+16 37.77 1478 3×120+54.6+2×16 38.73 1544
3×120+54.6+25 38.58 1512 3×120+54.6+2×25 40.23 1611
3×120+95+16 39.64 1612 3×120+95+2×16 40.45 1679
3×120+95+25 40.45 1646 3×120+95+2×25 41.95 1746
3×150+54.6+16 41.01 1779 3×150+54.6+2×16 41.73 1845
3×150+54.6+25 41.82 1813 3×150+54.6+2×25 43.23 1913
3×150+95+16 42.88 1913 3×150+95+2×16 43.45 1980
3×150+95+25 43.69 1948 3×150+95+2×25 44.95 2048
