69kv Hv Armoured Power Cable 1 Core Crosslinked Polyethylene Power Cable

Minimum Order Quantity : 1000meter
Place of Origin: Henan ,China Brand Name: CN CABLE
Certification: CE Model Number: HV CABLE

Detail Information

Application: Construction,Industrial,power Station Or Construction Product Name: Copper Armoured Power Cable
Core: 1 Core Conductor Type: Stranded
Certification: CE Model: HV CABLE
High Light:

armoured electrical cable

,

electrical power cable

Product Description

69KV HV CABLE 1 CORE CROSSLINKED POLYETHYLENE POWER CABLE





Application:
Preferably laid in substations, factories and urban area. the cable shall be suitable
for use in ducts, trays and direct burial in ground. subjected to immerse in water all time

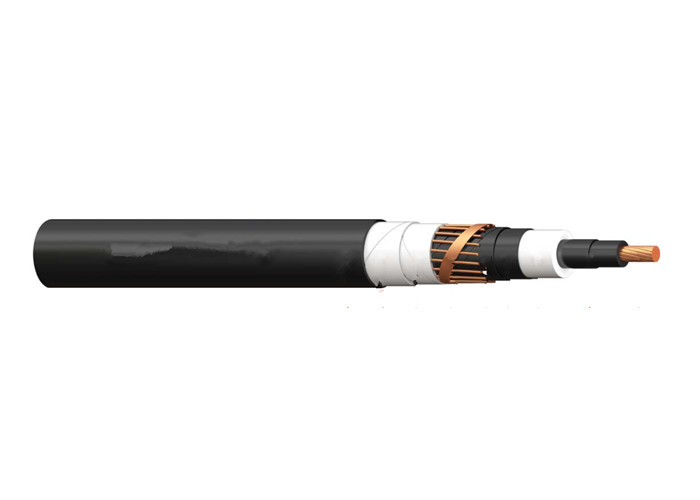

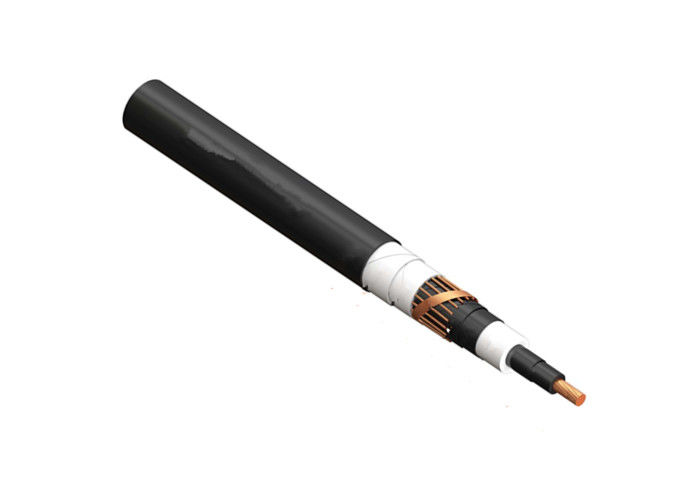

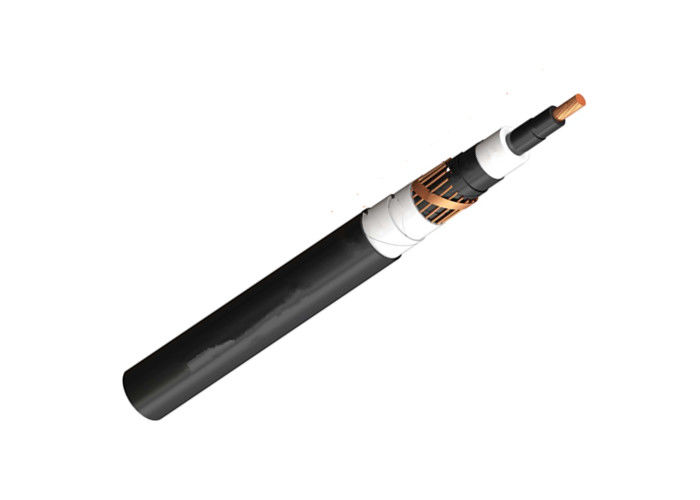

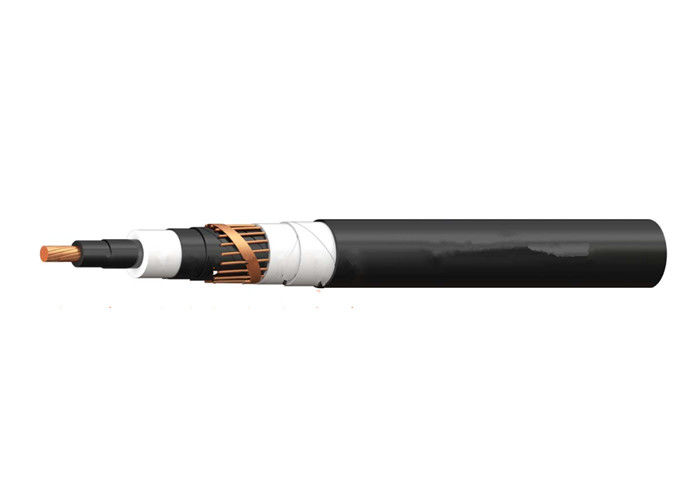

Construction:
1. Conductor : Circular compact stranded annealed copper
2. Conductor screen : Semi-conductive tape with extruded Semi-conductive cross-linked
polyethylene compound
3. Insulation : Cross-linked polyethylene (XLPE) compound
4. Insulation screen : Semi-conductive cross-linked polyethylene compound
5. Water blocking tape : Semi-conductive water blocking tape
6. Metallic screen : Copper wires with copper contact tape
7. Water blocking and Cushioning tape : Non-conductive water blocking tape
8. Radial water barrier : Copolymer aluminum tape
9. Sheath : Black Polyethylene (PE) , (Optional : with RIB)


conductor Nominal conductor screen thickness Nominal insulated thickness Nominal insulated screen thickness  Area of metalic screen Nominal sheath thickness Approx. overall dia. conductor resistance at 20℃(Max.) Capacitance current rating direct burial in ground at 30 ℃

Approx.

cable weight



cross-sectional area Min.No. of wire
mm² / mm mm mm mm² mm mm Ω/km µF/km A kg/km
400 53 1.5 11.0 1.5 120 3.5 68 0.0470 0.222 680 7280
500 53 1.5 11.0 1.5 120

3.5

71 0.0366 0.246 775 8520
630 53 1.5 11.0 1.5 120 3.5 75 0.0283 0.269 885 10050
800 53 1.5 11.0 1.5 120 3.5 79 0.0221 0.292 995 11900
Packing & Shipping

Packing Material: Coil (for small size & short length), wooden drum, iron-wooden drum, steel drum.
Shipping: Loading port from Qingdao or Shanghai ,12-24 hours from factory to sea port.

Company Information:

10+ years experience of export business.
Flexible business model, rich customer groups.
Wide range of cable products, rich resources in local market.

Some Export Area:

Australia , Bangladesh, Canada, Chile, Cote D’ivoire, Congo, Dominican, Ecuador, Gambia, Ghana, Guinea, Guyana, Indonesia, Haiti, Iran, Kenya, Lraq, India, Malawi, Malaysia, Myanmar, Nigeria, Nepal. Peru, Philippines, Paraguay, Panama, Pakistan, Rwanda, Saudi Arab, South Africa, Sudan, Trinidad Tobago, Togo, Turkey, Uganda, US, UAE, UK, Uruguay, Yemen, Zimbabwe, Zambia.

Our Services
  1. Product consultation, analysis, design, production
  2. Provide industry information, Product Training, Assist Product Marketing
  3. Provide project support such as tender assistant, cooperate visit customers, FAT support.
  4. Complete quality system and docs available, faster lead time, good quality, Strong technical support, free samples.
  5. OEM service
  6. Other service customized by clients
