PVC Insulation Armoured Power Cable MV 6/10KV 8.7/15KV 12/20KV 18/30KV
Contact Person : Andrea
Phone Number : 0086-371-60547601
WhatsApp : +8613598873045
Detail Information |
|||
Conductor: | Class 1 Solid Copper/ Class 2 Stranded Copper | Insulation: | XLPE |
---|---|---|---|
Filler: | HFFR (Halogen Free flame Retardant) | Inner Sheath: | HFFR (Halogen Free flame Retardant) |
Armour: | Galvanized flat Steel Wires And flat Bare Copper Wires Covered With An Open Counter Spiral Of Galvanized Steel Tape | Outer Sheath: | HFFR (Halogen Free flame Retardant) |
Outer Sheath Colour: | Grey | ||
High Light: | armoured electrical cable,electrical power cable |
Product Description

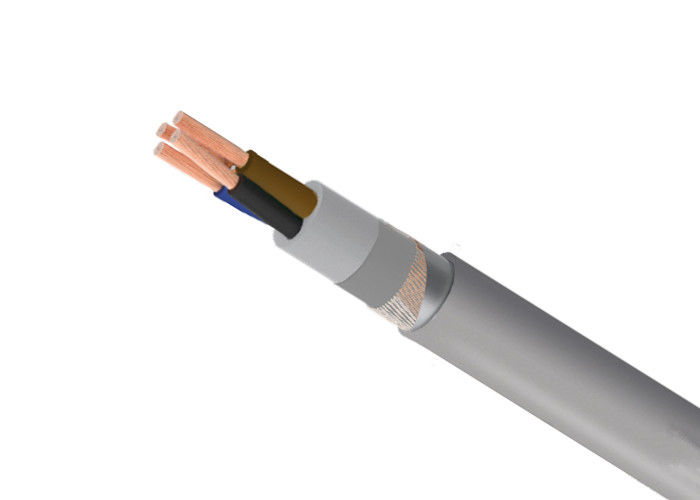

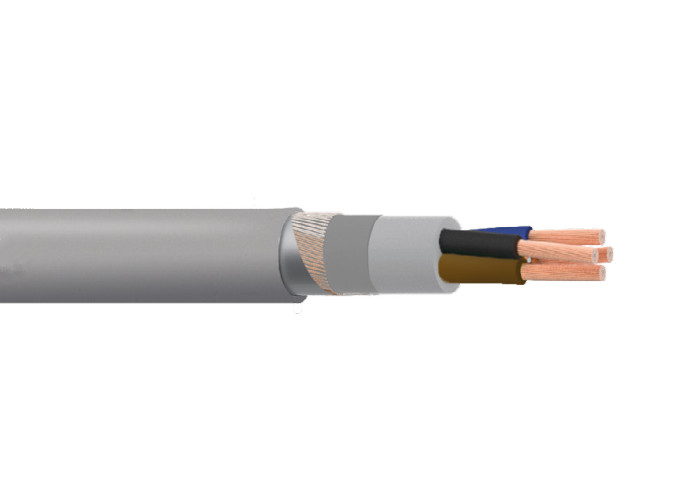

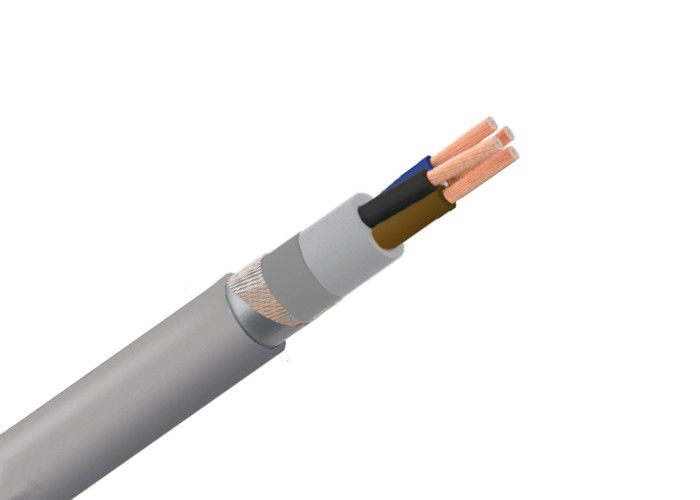

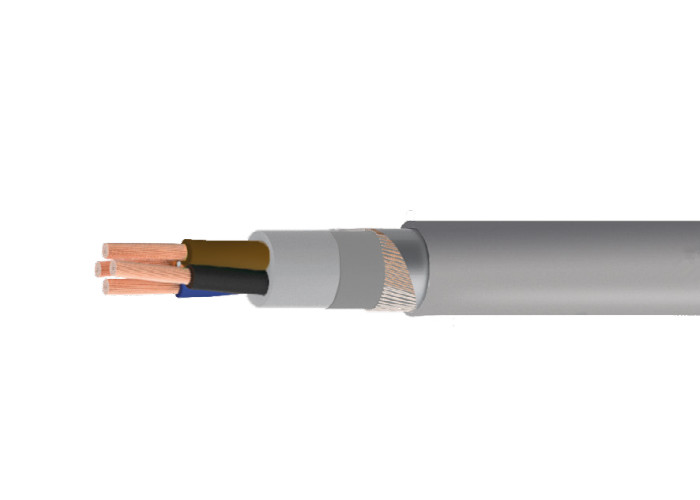

0.6 / 1kv XLPE Insulation Flexible Armored Cable Flame Retardant Grey Outer Sheath
APPLICATION:
The Low Smoke Zero Halogen (LSZH) cable is used for industrial applications. Suitable for underground laying and where there is mechanical compulsion.
CHARACTERISTICS:
Voltage Rating Uo/U
0.6/1kV
Test Voltage
3.5kV AC
Temperature Rating
Maximum Operating: 90ºC
Maximum Short-Circuit: 250°C
Minimum Bending Radius
15 x overall diameter

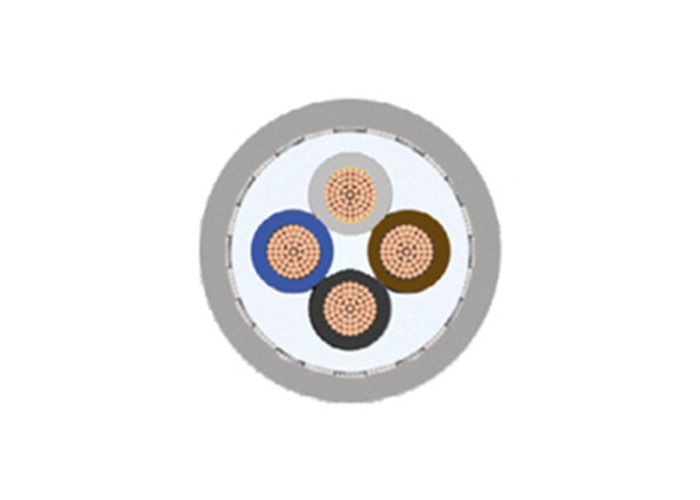

CONSTRUCTION:
Conductor
Class 1 Solid copper
Class 2 Stranded copper
Insulation
XLPE (Cross-Linked Polyethylene)
Filler
HFFR (Halogen free flame retardant)
Inner Sheath
HFFR (Halogen free flame retardant)
Armour
Galvanized flat steel wires and flat bare copper wires covered
with an open counter spiral of galvanized steel tape
Outer Sheath
HFFR (Halogen free flame retardant)
Outer Sheath Colour
Grey
DIMENSIONS
NO. OF CORES |
NOMINAL CROSS SECTIONAL AREA mm² |
NOMINAL DIAMETER OF CONDUCTOR mm |
NOMINAL THICKNESS OF INSULATION mm |
NOMINAL THICKNESS OF OUTER SHEATH mm |
NOMINAL OVERALL DIAMETER mm |
NOMINAL WEIGHT kg/km |
2 2 2 2 2 2 2 2 2 2 2 3 3 3 3 3 3 3 3 3 3 3 3 3 4 4 4 4 4 4 4 4 4 4 4 4 4 5 5 5 5 5 5 5 5 |
1.5/1.5 2.5/2.5 4/4 6/6 10/10 16/16 25/16 35/16 50/25 70/35 95/50 1.5/1.5 2.5/2.5 4/4 6/6 10/10 16/16 25/16 35/16 50/25 70/35 95/50 120/70 150/70 1.5/1.5 2.5/2.5 4/4 6/6 10/10 16/16 25/16 35/16 50/25 70/35 95/50 120/70 150/70 1.5/1.5 2.5/2.5 4/4 6/6 10/10 16/16 25/16 35/16 |
1.36 1.75 2.22 2.71 3.85 4.70 5.85 6.90 8.10 9.70 11.40 1.36 1.75 2.22 2.71 3.85 4.70 5.85 6.90 8.10 9.70 11.40 12.65 14.15 1.36 1.75 2.22 2.71 3.85 4.70 5.85 6.90 8.10 9.70 11.40 12.65 14.15 1.36 1.75 2.22 2.71 3.85 4.70 5.85 6.90 |
0.70 0.70 0.70 0.70 0.70 0.70 0.90 0.90 1.00 1.10 1.10 0.70 0.70 0.70 0.70 0.70 0.70 0.90 0.90 1.00 1.10 1.10 1.20 1.40 0.70 0.70 0.70 0.70 0.70 0.70 0.90 0.90 1.00 1.10 1.10 1.20 1.40 0.70 0.70 0.70 0.70 0.70 0.70 0.90 0.90 |
1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.90 2.00 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 2.00 2.10 2.20 2.40 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.90 2.10 2.20 2.40 2.50 1.80 1.80 1.80 1.80 1.80 1.80 1.80 1.90 |
13.6 14.3 15.3 16.3 18.5 20.2 22.5 24.6 27.6 31.4 35.2 14.0 14.8 15.9 16.9 19.4 21.2 24.6 26.0 29.4 33.9 38.0 42.5 47.2 14.7 15.7 16.8 18.0 20.7 22.8 26.8 28.5 32.4 38.4 42.9 47.0 52.0 15.5 16.5 17.8 19.1 22.2 24.5 28.9 31.1 |
389 451 534 633 857 1096 1292 1574 2043 2711 3669 429 505 608 731 975 1268 1697 1908 2537 3430 4626 5960 7136 467 554 673 815 1132 1487 2039 2334 3120 4589 6101 7354 8818 519 620 760 928 1300 1722 2389 2786 |
ELECTRICAL CHARACTERISTICS
NOMINAL CROSS SECTIONAL AREA mm² |
EQUIVALENT COPPER CROSS SECTION AREA OF ARMOUR CONDUCTOR mm² |
MAXIMUM CONDUCTOR DC RESISTANCE AT AT 20°C ohm/km |
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 |
1.5 2.5 4 6 10 16 16 16 25 35 50 60 75 95 100 100 100 |
12.1 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 0.0471 |
CURRENT CARRYING CAPACI
NOMINAL CROSS SECTIONAL AREA mm² |
RATED CURRENT A |
||||
1 | 2 | 3 & 4 | 3 | 111 | |
1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 |
33 43 57 72 99 131 177 217 265 336 415 485 557 647 775 894 1061 |
25 34 44 57 77 102 |
24 32 42 53 73 97 132 162 197 250 308 359 412 475 564 649 761 |
26 34 44 56 77 102 138 170 207 263 325 380 437 507 604 692 812 |
32 42 56 71 96 128 173 212 258 328 404 471 541 626 749 864 1018 |
