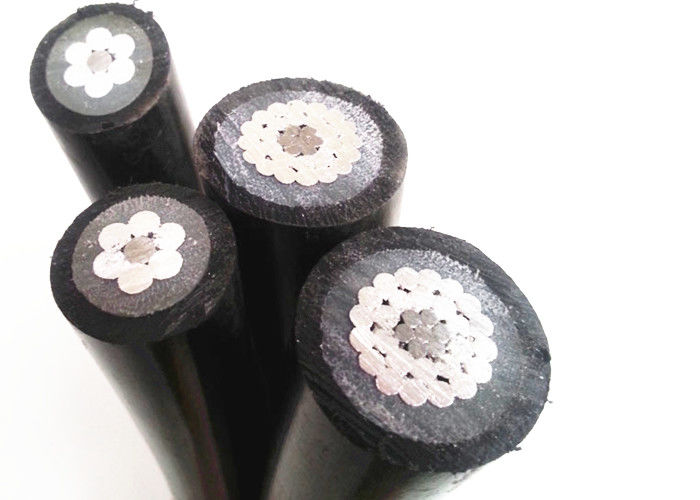

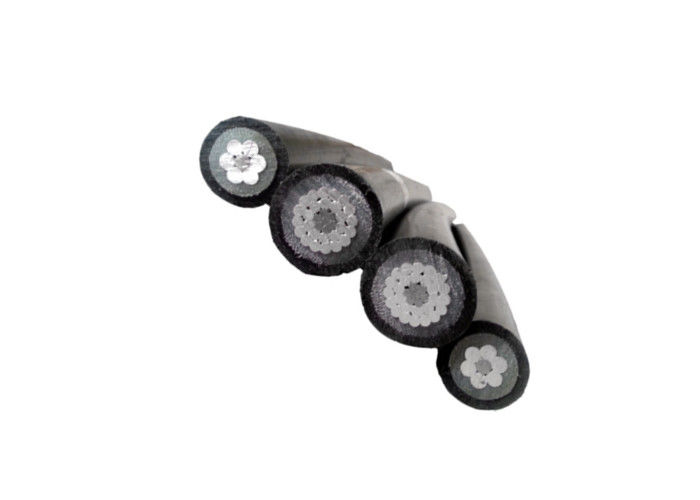

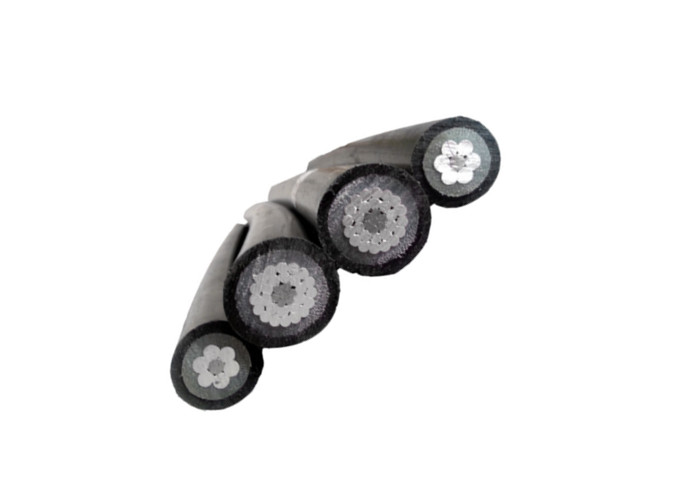

PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors
PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors
Contact Now

PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors

Minimum Order Quantity : 1000meters Packaging Details : drum
Delivery Time : 20days after payment Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: ABC CABLE

Detail Information
Conductor: AAC, AAAC Or ACSR Insulation: XLPE
Outer Sheath: PE
High Light:

aerial bundled cable

,

aluminum aerial cable

Product Description

AAC, AAAC or ACSR conductors XLPE insulation and PE outer sheath MV ABC cable



Application:

Used for primary and secondary overhead distribution where limited space is available or desirable for rights of way. Installed as an uninsulated conductor, however covering is effective in preventing direct shorts and instantaneous flashovers should tree limbs or other objects contact conductors is such close proximity. The resulting close-proximity configuration minimizes the amount of space and hardware required for line installation. Particularly useful in congested areas such as alleyways or tight corridors.



Construction:

Conductors are concentrically stranded, AAC(1350-H19),either compressed of full compact depending on conductor size, AAAC or ACSR. Available with high-density track-resistant polyethylene(HDTRPE) or Track-Resistant Crosslinked Polyethylene(XLPE) covering . Strand shield option available as shown in illustration.



Specifications:

1. 5kv

PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors 0

A 0.085black linear low density polyethylene or gray high density polyethylene



Size Strands Type Conductor Diameter
(in)		 Finished Cable Diameter (in) Cable Weight
(Ibs/1000ft)
4AWG 7 Round 0.232 0.402 76
2 AWG 7 Round 0.292 0.462 111
1/0AWG 7 Compact 0.336 0.508 151
2/0AWG 7 Compact 0.376 0.551 183
3/0AWG 7 Compact 0.423 0.596 222
4/0AWG 7 Compact 0.475 0.648 270
266.8kcmil 7 Compact 0.537 0.707 329
336.4kcmil 19 Compact 0.603 0.777 403
397.5kcmil 19 Compact 0.659 0.830 467
477.0kcmil 19 Compact 0.722 0.892 549
556.5kcmil 19 Compact 0.780 0.950 631
636.0kcmil 19 Compact 0.835 1.004 712
795.0kcmil 19 Compact 0.932 1.102 892



2. 15kv TP(For Treed Areas)

PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors 1
A: 0.015 Semiconducting Polyethylene (0.020 for 477kcmil and larger)
B: 0.075 Natural Low Density Polyethylene (0.080 for 795kcmil)
C: 0.075 Black or Gray Track Resistant High Density Polyethylene (0.080 for 795kcmil)

Size Strands Type Conductor Diameter
(in)		 Finished Cable Diameter
(in)		 Cable Weight
(Ibs/1000ft)
4AWG 7 Round 0.232 0.562 128
2 AWG 7 Round 0.292 0.622 170
1/0AWG 7 Compact 0.336 0.668 215
2/0AWG 7 Compact 0.376 0.711 251
3/0AWG 7 Compact 0.423 0.756 297
4/0AWG 7 Compact 0.475 0.808 351
266.8kcmil 7 Compact 0.537 0.867 416
336.4kcmil 19 Compact 0.603 0.937 497
397.5kcmil 19 Compact 0.659 0.990 568
477.0kcmil 19 Compact 0.722 1.062 662
556.5kcmil 19 Compact 0.780 1.120 752
636.0kcmil 19 Compact 0.835 1.175 839
795.0kcmil 19 Compact 0.932 1.292 1049



3. 15kv (For Non-Treed Areas)

PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors 2
A: 0.075 Natural Low Density Polyethylene (0.080 for 795kcmil)
B: 0.075 Black or Gray Track Resistant High Density Polyethylene(0.080 for 795kcmil)

Size Strands Type Conductor Diameter
(in)		 Finished Cable Diameter
(in)		 Cable Weight
(Ibs/1000ft)
4AWG 7 Round 0.232 0.532 114
2 AWG 7 Round 0.292 0.592 158
1/0AWG 7 Compact 0.336 0.638 202
2/0AWG 7 Compact 0.376 0.681 237
3/0AWG 7 Compact 0.423 0.726 281
4/0AWG 7 Compact 0.475 0.778 334
266.8kcmil 7 Compact 0.537 0.837 398
336.4kcmil 19 Compact 0.603 0.907 478
397.5kcmil 19 Compact 0.659 0.960 547
477.0kcmil 19 Compact 0.722 1.022 633
556.5kcmil 19 Compact 0.780 1.080 721
636.0kcmil 19 Compact 0.835 1.134 807
795.0kcmil 19 Compact 0.932 1.252 1012


4. 25KV

PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors 3
A. 0.015 Semiconducting Polyethylene (0.020 for 477kcmil and larger)
B. 0.125 Natural Low Density Polyethylene
C. 0.125 Black or Gray Track Resistant High Density Polyethylene.

Size Strands Type Conductor Diameter
(in)		 Finished Cable Diameter
(in)		 Cable Weight
(Ibs/1000ft)
2 AWG 7 Round 0.292 0.822 270
1/0AWG 7 Compact 0.336 0.868 321
2/0AWG 7 Compact 0.376 0.911 363
3/0AWG 7 Compact 0.423 0.956 414
4/0AWG 7 Compact 0.475 1.008 476
266.8kcmil 7 Compact 0.537 1.067 550
336.4kcmil 19 Compact 0.603 1.137 640
397.5kcmil 19 Compact 0.659 1.190 718
477.0kcmil 19 Compact 0.722 1.262 815
556.5kcmil 19 Compact 0.780 1.320 912
636.0kcmil 19 Compact 0.835 1.374 1005
795.0kcmil 19 Compact 0.932 1.472 1211


5. 35kv

PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors 4
A. 0.015 Semiconducting Polyethylene (0.020 for 477kcmil and larger)
B. 0.175 Natural low density polyethylene
C. 0.125 Black or Gray track Resistant high density polyethylene

Size Strands Type Conductor Diameter
(in)		 Finished Cable Diameter
(in)		 Cable Weight
(Ibs/1000ft)
1/0AWG 7 Compact 0.336 0.968 384
2/0AWG 7 Compact 0.376 1.011 429
3/0AWG 7 Compact 0.423 1.056 483
4/0AWG 7 Compact 0.475 1.108 548
266.8kcmil 7 Compact 0.537 0.167 625
336.4kcmil 19 Compact 0.603 1.237 721
397.5kcmil 19 Compact 0.659 1.290 803
477.0kcmil 19 Compact 0.722 1.362 903
556.5kcmil 19 Compact 0.780 1.420 1004
636.0kcmil 19 Compact 0.835 1.476 1102
795.0kcmil 19 Compact 0.932 1.572 1315


6. 46kv

PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors 5
A 0.015 Semiconducting Polyethylene (0.020 for 477kcmil and larger)
B 0.225 Natural low density polyethylene
C 0.175 Black or Gray track resistant high density polyethylene

Size Strands Type Conductor Diameter
(in)		 Finished Cable Diameter
(in)
1/0AWG 7 Compact 1.168 509
2/0AWG 7 Compact 1.211 557
3/0AWG 7 Compact 1.256 616
4/0AWG 7 Compact 1.308 687
266.8kcmil 7 Compact 1.367 773
336.4kcmil 19 Compact 1.437 874
397.5kcmil 19 Compact 1.490 963
477.0kcmil 19 Compact 1.562 1091
556.5kcmil 19 Compact 1.620 1198
636.0kcmil 19 Compact 1.676 1314
795.0kcmil 19 Compact 1.772 1511


PE Outer Sheath MV ABC Power Cable With Concentrically Stranded Conductors 6
