Vibration Resistant Bare Aluminum Cable High Strength For Overhead CE Certification
Vibration Resistant Bare Aluminum Cable High Strength For Overhead CE Certification Vibration Resistant Bare Aluminum Cable High Strength For Overhead CE Certification
Contact Now

Vibration Resistant Bare Aluminum Cable High Strength For Overhead CE Certification

Minimum Order Quantity : 10000meters Packaging Details : Drum
Delivery Time : 15days after payment Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: BARE CONDUCTOR

Detail Information
Conductor: Aluminum Conductor, Name: Bare Aluminum Cable
Feature: High Strength Brand: CN CABLE
Certification: CE
High Light:

transmission line conductor

,

stranded bare copper wire

Product Description

Vibration-Resistant, Bare Aluminum Cable is designed for use in overhead applications subject to Aeolian vibration



Vibration-Resistant, Bare Aluminum Cable

APPLICATIONS

Vibration-Resistant, Bare Aluminum Cable, a vibration-resistant, bare aluminum construction, is designed for use in overhead applications subject to Aeolian vibration and galloping due to wind and ice. VR2 cable can be strung to the maximum allowable tension limits without the need for additional vibration protection

SPECIFICATIONS

Vibration-Resistant, Bare Aluminum Cable. meets or exceeds the following ASTM specifications for the subconductor of each conductor assembly:

B-231 Aluminum Conductor, Concentric-Lay-Stranded

B-232 Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

B-778 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors

(AAC/TW)

B-779 Shaped Wire Compact Concentric-Lay-Stranded Aluminum Conductors, Steel

Reinforced (ACSR/TW)

CONSTRUCTION

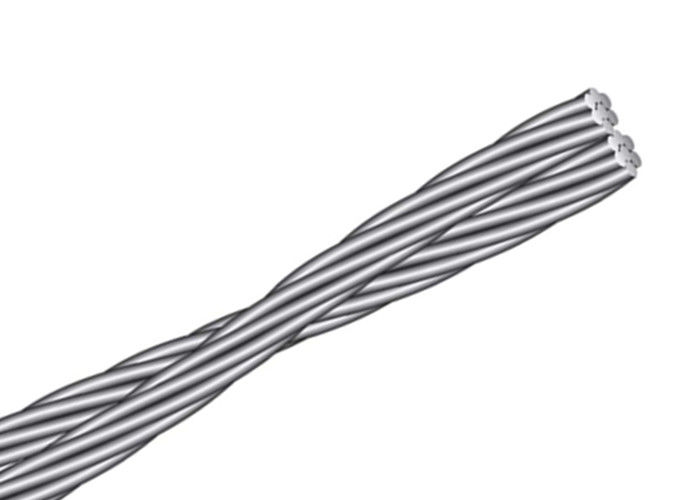

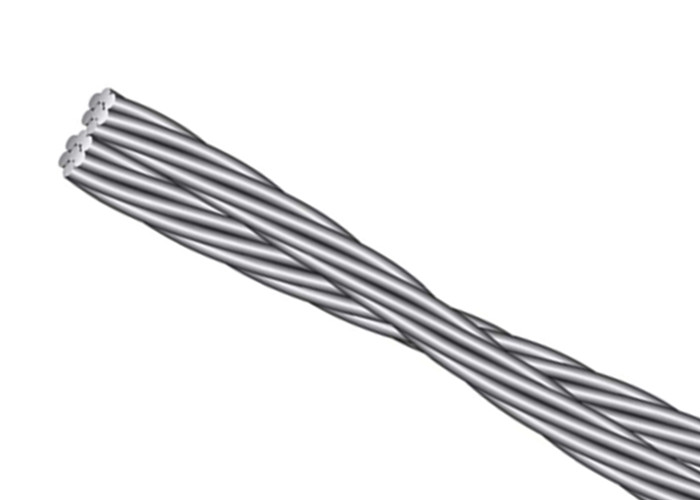

Vibration-Resistant, Bare Aluminum Cable is composed of two identical bare conductors twisted together with a left-hand lay. This gives the cable a figure 8 spiral shape. This spiral shape disrupts the forces created by steady cross winds which cause cable vibration by presenting a continuously changing projected cable diameter to the wind. This spiral shape, together with less torsional stiffness and varying bending stiffness also reduces or eliminates cable galloping due to combined ice and wind. Vibration-Resistant, Bare Aluminum Cable is engineered with a lay length that changes with conductor diameter. The engineered lay ensures that the product will install without bagging issues while still providing equal or better resistance to Aeolian vibration and ice galloping. The component conductors of Vibration-Resistant, Bare Aluminum Cable can be conductor types AAC, ACSR, AAC/TW, or ACSR/TW meeting the requirements of the appropriate ASTM standard. Other sizes available upon request.

Vibration Resistant Bare Aluminum Cable High Strength For Overhead CE Certification 0



ACSR VIBRATION RESISTANT CABLE

Equivalent

Size

(AWG/kcmil)

 Description Stranding Outer Dimensions (in)

Equiv. Dia.

(in)

Weight

(Ibs/1000Dft)

 Rated Strength

Resistance

(ohms/1000ft)

Allowable Ampacity

(amps)
Type Construction Al. Steel AL. Steel Total DC@20℃ AC@75℃
1 ACSR 2 x #4-6/1 6 x 0.0834 1 x 0.0834 0.250 x 0.500 0.409 78 37 115 3,720 0.2015 0.2601 222
1 ACSR 2 x #4-7/1 7 x 0.0772 1 x 0.1030 0.257 x 0.514 0.421 78 56 134 4,720 0.1993 0.2659 221
2/0 ACSR 2 x #2-6/1 6 x 0.1052 1 x 0.1052 0.316 x 0.632 0.517 124 59 182 5,700 0.1268 0.1687 293
3/0 ACSR 2 x #1-6/1 6 x 0.1181 1 x 0.1181 0.355 x 0.710 0.581 156 74 230 7,100 0.1005 0.1366 335
4/0 ACSR 2 x #1/0-6/1 6 x 0.1327 1 x 0.1327 0.398 x 0.796 0.651 197 93 290 8,760 0.0797 0.1113 382
266.2 ACSR 2 x #2/0-6/1 6 x 0.1489 1 x 0.1489 0.447 x 0.894 0.732 248 117 366 10,620 0.0632 0.0914 434
335.6 ACSR 2 x #3/0-6/1 6 x 0.1672 1 x 0.1672 0.502 x 1.004 0.822 313 148 461 13,240 0.0501 0.0757 492
423.2 ACSR 2 x #4/0-6/1 6 x 0.1878 1 x 0.1878 0.563 x 1.126 0.921 395 187 581 16,700 0.0398 0.0628 557
533.6 ACSR 2 x 266.8-18/1 18 x 0.1217 1 x 0.1217 0.609 x 1.218 0.997 500 78 579 13,760 0.0322 0.0395 720
533.6 ACSR 2 x 266.8-26/7 26 x 0.1013 7 x 0.0788 0.642 x 1.284 1.051 503 231 734 22,600 0.0319 0.0391 734
600 ACSR 2 x 300-26/7 26 x 0.1074 7 x 0.0835 0.680 x 1.360 1.113 565 260 825 25,400 0.0283 0.0348 790
672.8 ACSR 2 x 336.4-18/1 18 x 0.1367 1 x 0.1367 0.684 x 1.368 1.119 631 99 730 17,360 0.0255 0.0315 832
672.8 ACSR 2 x 336.4-26/7 26 x 0.1137 7 x 0.0885 0.720 x 1.440 1.178 634 291 925 28,200 0.0253 0.0311 848
672.8 ACSR 2 x 336.4-30/7 30 x 0.1059 7 x 0.1059 0.741 x 1.482 1.213 635 417 1053 34,700 0.0251 0.0309 858
795 ACSR 2 x 397.5-18/1 18 x 0.1486 1 x 0.1486 0.743 x 1.486 1.216 745 117 862 19,880 0.0216 0.0268 923
795 ACSR 2 x 397.5-24/7 24 x 0.1287 7 x 0.0858 0.772 x 1.544 1.263 749 274 1023 29,300 0.0215 0.0266 935
795 ACSR 2 x 397.5-26/7 26 x 0.1236 7 x 0.0961 0.783 x 1.566 1.281 749 344 1093 32,600 0.0214 0.0264 941
795 ACSR 2 x 397.5-30/7 30 x 0.1151 7 x 0.1151 0.806 x 1.612 1.319 751 493 1244 40,700 0.0212 0.0262 952
954 ACSR 2 x 477-18/1 18 x 0.1628 1 x 0.1628 0.814 x 1.628 1.332 894 140 1035 23,500 0.0180 0.0224 1032
954 ACSR 2 x 477-24/7 24 x 0.1410 7 x 0.0940 0.846 x 1.692 1.385 899 329 1227 34,300 0.0179 0.0223 1047
954 ACSR 2 x 477-26/7 26 x 0.1354 7 x 0.1053 0.858 x 1.716 1.404 899 413 1312 39,000 0.0178 0.0221 1053
954 ACSR 2 x 477-30/7 30 x 0.1261 7 x 0.1261 0.883 x 1.766 1.445 901 592 1493 47,600 0.0177 0.0220 1066
1113 ACSR 2 x 556.5-18/1 18 x 0.1758 1 x 0.1758 0.879 x 1.758 1.439 1043 164 1207 27,400 0.0154 0.0194 1134
1113 ACSR 2 x 556.5-24/7 24 x 0.1523 7 x 0.1015 0.914 x 1.828 1.496 1048 384 1432 39,600 0.0153 0.0192 1151
1113 ACSR 2 x 556.5-26/7 26 x 0.1463 7 x 0.1138 0.927 x 1.854 1.517 1048 482 1530 45,200 0.0153 0.0191 1158
1113 ACSR 2 x 556.5-30/7 30 x 0.1362 7 x 0.1362 0.953 x 1.906 1.560 1051 690 1741 55,600 0.0152 0.0189 1172
1210 ACSR 2 x 605-24/7 24 x 0.1588 7 x 0.1059 0.953 x 1.906 1.560 1140 417 1557 43,100 0.0141 0.0177 1210
1210 ACSR 2 x 605-26/7 26 x 0.1525 7 x 0.1186 0.966 x 1.932 1.581 1140 524 1664 48,700 0.0140 0.0176 121
1210 ACSR 2 x 605-30/7 30 x 0.1420 7 x 0.1420 0.994 x 1.988 1.627 1142 751 1893 57,800 0.0140 0.0175 1233
1210 ACSR 2 x 605-30/19 30 x 0.1420 19 x 0.0852 0.994 x 1.988 1.627 1142 735 1877 59,900 0.0140 0.0175 1232
1272 ACSR 2 x 636-36/1 36 x 0.1329 1 x 0.1329 0.930 x 1.860 1.522 1192 94 1286 27,500 0.0135 0.0172 1223
1272 ACSR 2 x 636-24/7 24 x 0.1628 7 x 0.1085 0.977 x 1.954 1.599 1198 438 1637 45,300 0.0134 0.0169 1247
1272 ACSR 2 x 636-26/7 26 x 0.1564 7 x 0.1216 0.991 x 1.982 1.622 1198 551 1749 50,400 0.0134 0.0168 1256
1272 ACSR 2 x 636-30/7 30 x 0.1456 7 x 0.1456 1.019 x 2.038 1.668 1201 789 1990 60,800 0.0133 0.0167 1271
1272 ACSR 2 x 636-30/19 30 x 0.1456 19 x 0.0874 1.019 x 2.038 1.668 1201 773 1974 63,000 0.0133 0.0167 1270
1333.2 ACSR 2 x 666.6-24/7 24 x 0.1667 7 x 0.1111 1.000 x 2.000 1.637 1256 459 1715 47,500 0.0128 0.0162 1283
1333.2 ACSR 2 x 666.6-26/7 26 x 0.1601 7 x 0.1245 1.014 x 2.028 1.660 1256 577 1833 52,800 0.0128 0.0161 1292
1431 ACSR 2 x 715.5-24/7 24 x 0.1727 7 x 0.1151 1.036 x 2.072 1.696 1348 493 1841 51,000 0.0119 0.0152 1339
1431 ACSR 2 x 715.5-26/7 26 x 0.1659 7 x 0.1290 1.051 x 2.102 1.720 1348 620 1967 56,700 0.0119 0.0151 1348
1431 ACSR 2 x 715.5-30/19 30 x 0.1544 19 x 0.0926 1.081 x 2.162 1.769 1351 869 2220 69,200 0.0118 0.0149 1364
1590 ACSR 2 x 795-36/1 36 x 0.1486 1 x 0.1486 1.040 x 2.080 1.702 1490 117 1607 33,500 0.0108 0.0140 1395
1590 ACSR 2 x 795-45/7 45 x 0.1329 7 x 0.0886 1.063 x 2.126 1.740 1498 292 1790 44,200 0.0108 0.0140 1403
1590 ACSR 2 x 795-54/7 54 x 0.1213 7 x 0.1213 1.092 x 2.184 1.787 1498 548 2045 56,400 0.0107 0.0141 1408
1590 ACSR 2 x 795-26/7 26 x 0.1749 7 x 0.1360 1.107 x 2.214 1.812 1498 688 2186 63,000 0.0107 0.0137 1434
1590 ACSR 2 x 795-30/19 30 x 0.1628 19 x 0.0977 1.140 x 2.280 1.866 1501 966 2467 76,900 0.0106 0.0136 1452
1800 ACSR 2 x 900-45/7 45 x 0.1414 7 x 0.0943 1.131 x 2.262 1.851 1695 331 2026 48,900 0.0096 0.0125 1507
1800 ACSR 2 x 900-54/7 54 x 0.1291 7 x 0.1291 1.162 x 2.324 1.902 1695 620 2316 63,800 0.0095 0.0126 1514
1908 ACSR 2 x 954-45/7 45 x 0.1456 7 x 0.0971 1.165 x 2.330 1.907 1797 351 2148 51,800 0.0090 0.0119 1559
1908 ACSR 2 x 954-54/7 54 x 0.1329 7 x 0.1329 1.196 x 2.392 1.957 1797 657 2455 67,600 0.0083 0.0111 1630
2067 ACSR 2 x 1033.5-45/7 45 x 0.1515 7 x 0.1010 1.212 x 2.424 1.984 1947 380 2327 55,400 0.0083 0.0111 1630
2067 ACSR 2 x 1033.5-54/7 54 x 0.1383 7 x 0.1383 1.245 x 2.490 2.038 1947 712 2659 73,300 0.0083 0.0112 1639
2226 ACSR 2 x 1113-45/7 45 x 0.1573 7 x 0.1049 1.258 x 2.516 2.059 2097 409 2506 59,600 0.0077 0.0104 1699
2226 ACSR 2 x 1113-54/19 54 x 0.1436 19 x 0.0861 1.292 x 2.584 2.115 2107 751 2858 78,100 0.0077 0.0105 1707




AAC VIBRATION RESISTANT CABLE
Equivalent
Size
(AWG
kcmil)		 Description Stranding

Outer
Dimensions

(in)

Equiv.
Dia.

(in)

 Weight
(lbs/1000 ft)		 Rated
Strength		 Resistance
(ohms/1000 ft)		 Allowable
Ampacity
(amps)
Type Construction DC @
20°C		 AC @
75°C
1 AAC 2 x #4-7 7 x 0.0772 0.232 x 0.464 0.380 78.2 1,760 0.2070 0.2530 222
2/0 AAC 2 x #2-7 7 x 0.0974 0.292 x 0.584 0.478 124.4 2,700 0.1303 0.1593 296
3/0 AAC 2 x #1-7 7 x 0.1093 0.328 x 0.656 0.537 156.9 3,280 0.1033 0.1263 343
4/0 AAC 2 x #1/0-7 7 x 0.1228 0.368 x 0.736 0.602 198.0 3,980 0.0818 0.1001 397
266.8 AAC 2 x #2/0-7 7 x 0.1379 0.414 x 0.828 0.678 249 5,020 0.0649 0.0795 459
366.4 AAC 2 x #3/0-7 7 x 0.1548 0.464 x 0.928 0.759 315 6,080 0.0515 0.0631 531
397.5 AAC 2 x #4/0-7 7 x 0.1739 0.522 x 1.004 0.854 397 7,660 0.0408 0.0501 614
533.6 AAC 2 x 266.8-7 7 x 0.1952 0.586 x 1.172 0.959 500 9,650 0.0324 0.0399 710
533.6 AAC 2 x 266.8-19 19 x 0.1185 0.592 x 1.184 0.969 500 9,940 0.0324 0.0399 712
672.8 AAC 2 x 336.4-19 19 x 0.1331 0.665 x 1.330 1.088 631 12,300 0.0257 0.0318 822
700 AAC 2 x 350-19 19 x 0.1357 0.679 x 1.358 1.111 656 12,800 0.0247 0.0306 843
795 AAC 2 x 397.5-19 19 x 0.1446 0.723 x 1.446 1.183 745 14,200 0.0217 0.0270 912
954 AAC 2 x 477-19 19 x 0.1584 0.792 x 1.584 1.296 894 16,700 0.0181 0.0226 1020
954 AAC 2 x 477-37 37 x 0.1135 0.795 x 1.590 1.301 894 17,400 0.0181 0.0226 1021
1000 AAC 2 x 500-19 19 x 0.1622 0.811 x 1.622 1.327 937 17,500 0.0173 0.0216 1050
1000 AAC 2 x 500-37 37 x 0.1162 0.814 x 1.628 1.332 937 18,200 0.0173 0.0216 1051
1113 AAC 2 x 556.5-19 19 x 0.1711 0.856 x 1.712 1.401 1043 19,500 0.0155 0.0196 1120
1113 AAC 2 x 556.5-37 37 x 0.1226 0.858 x 1.716 1.404 1043 19,900 0.0155 0.0196 1121
1200 AAC 2 x 600-37 37 x 0.1273 0.891 x 1.782 1.458 1125 21,400 0.0144 0.0182 1173
1272 AAC 2 x 636-37 37 x 0.1311 0.918 x 1.836 1.502 1192 22,700 0.0136 0.0173 1215
1431 AAC 2 x 715.5-37 37 x 0.1391 0.973 x 1.946 1.592 1341 25,600 0.0121 0.0155 1302
1431 AAC 2 x 715.5-61 61 x 0.1083 0.975 x 1.950 1.596 1341 26,300 0.0121 0.0155 1303
1500 AAC 2 x 750-37 37 x 0.1424 0.997 x 1.994 1.632 1406 26,300 0.0115 0.0149 1339
1590 AAC 2 x 795-37 37 x 0.1466 1.026 x 2.052 1.679 1490 27,800 0.0109 0.0141 1385
