Polyester Tape Steel Wire Armoured Xlpe Cable Single Core Armoured Cable
Polyester Tape Steel Wire Armoured Xlpe Cable Single Core Armoured Cable Polyester Tape Steel Wire Armoured Xlpe Cable Single Core Armoured Cable Polyester Tape Steel Wire Armoured Xlpe Cable Single Core Armoured Cable Polyester Tape Steel Wire Armoured Xlpe Cable Single Core Armoured Cable Polyester Tape Steel Wire Armoured Xlpe Cable Single Core Armoured Cable
Contact Now

Polyester Tape Steel Wire Armoured Xlpe Cable Single Core Armoured Cable

Minimum Order Quantity : 1000meter Packaging Details : drum
Delivery Time : 30days after payment Payment Terms : L/C, T/T
Supply Ability : 1000000meter per month
Place of Origin: Henan Brand Name: CN CABLE
Certification: TSEK Model Number: N2XSYRY

Detail Information
Conductor: Stranded Copper Screen: Outer Semi Conductive Layer
Insulation: XPLE Tape: Semi Conductive Tape
Matel Screen: Copper Wire Screen Tape: Polyester Tape
Sheath: Separation Armoured: Galvanized Round Steel Wire Armourd
Outer Sheath: PVC
High Light:

armoured electrical cable

,

electrical power cable

Product Description

N2XSYRY 20.3/35 kV TSEK

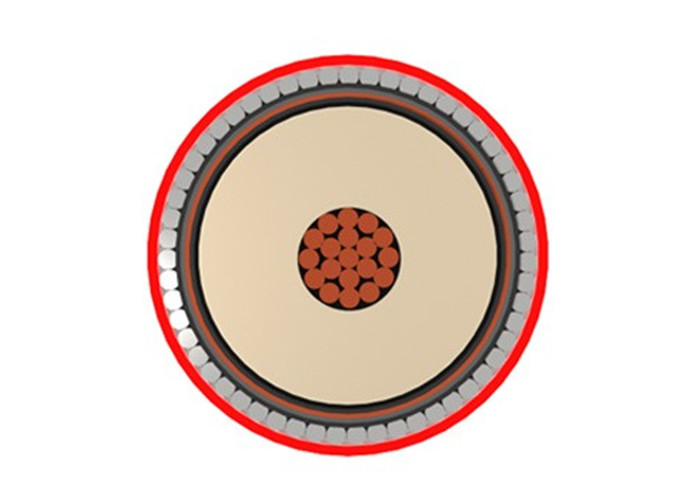

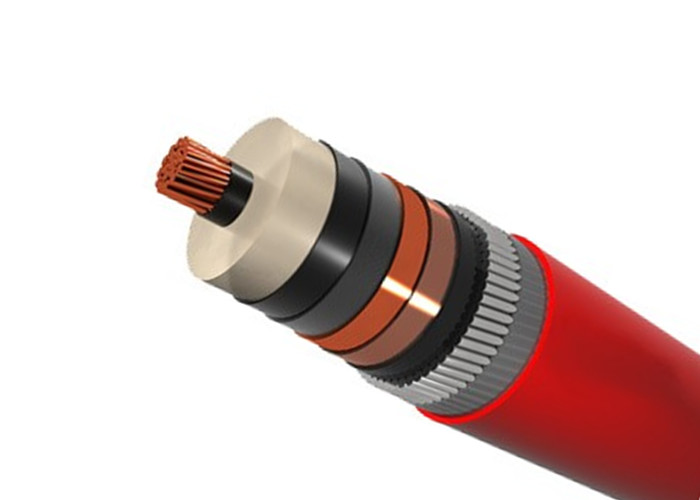

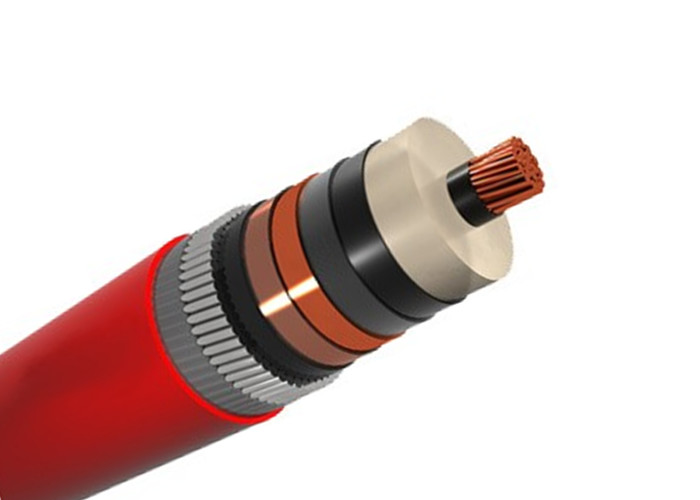

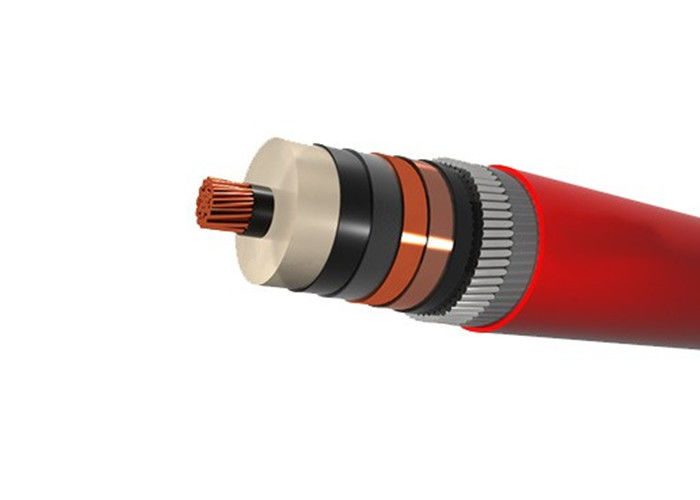

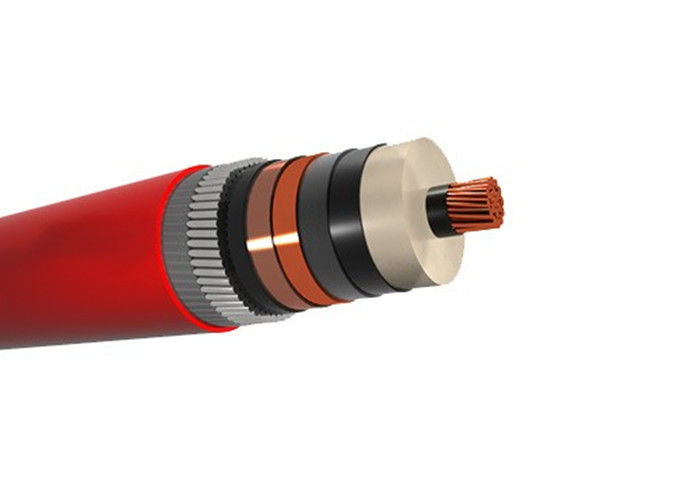

Structure

1. Stranded copper conductor

2. Inner semi conductive layer

3. XPLE insulation

4. Outer semi conductive layer

5. Semi conductive tape

6. Copper wire screen

7. Polyester tape

8. Separation sheath

9. Galvanized round steel wire armourd

10. Polyester tape

11. PVC outer sheath



Rated Cross
Section		 Overall Diameter
Of Cable		 Current Carrying
Capacity		 Operating
Inductance		 Operating
Capacity		 Conductor DC
Resistance at (20 °C)		 Net
Weight
mm2 mm Air (A) Ground (A) MH/Km µF/Km Ohm/Km Kg/Km
1x35/16 40.00 177 165 0,73 0,12 0,524 2840
1x50/16 41.00 253 232 0,71 0,13 0,387 3070
1x70/16 43.00 312 282 0,68 0,14 0,268 3400
1x95/16 46.00 373 332 0,64 0,15 0,193 4200
1x120/16 47.50 425 373 0,62 0,17 0,153 4580
1x150/25 49.00 476 410 0,60 0,18 0,214 5040
1x185/25 51.00 536 456 0,58 0,19 0,0991 5600
1x240/25 53.50 613 517 0,56 0,21 0,0754 6320
1x300/25 56.50 687 569 0,54 0,23 0,0601 7170
1x400/35 60.00 770 621 0,51 0,25 0,0470 8410
1x500/35 63.50 859 678 0,50 0,27 0,0366 9710
1x630/35 68.50 947 732 0,49 0,30 0,0283 11490
