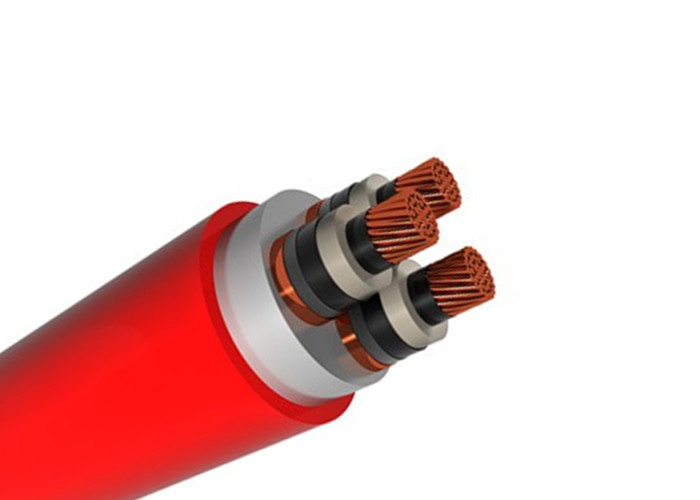

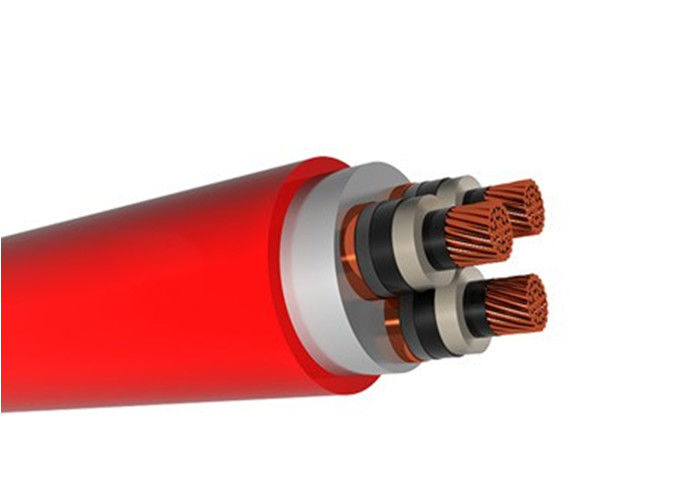

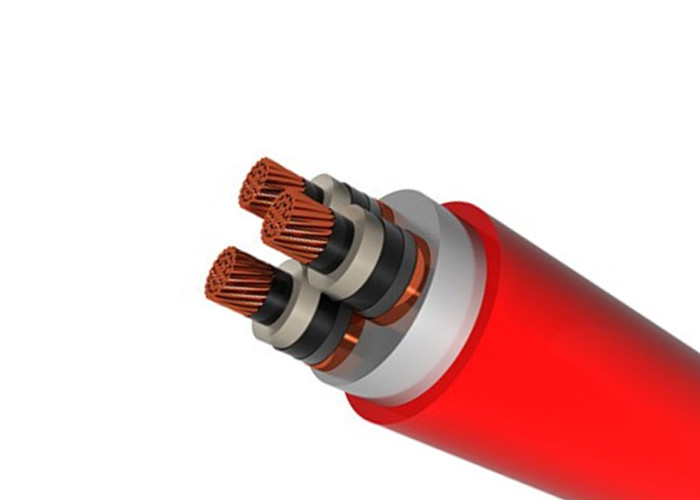

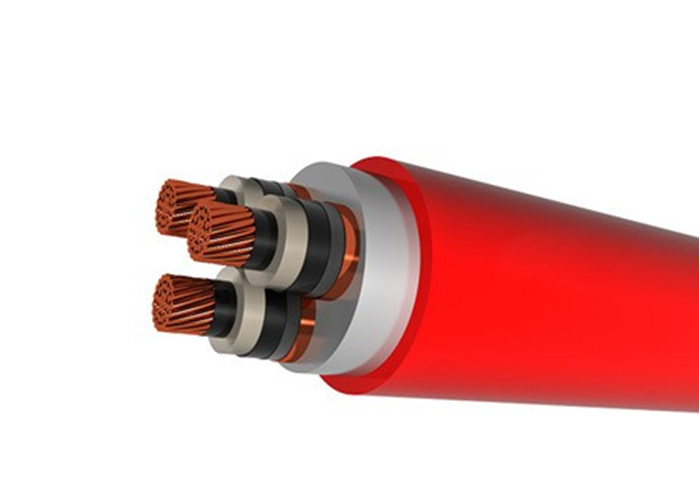

Durable Xlpe Insulated Cable Electrical Power Cable With Stranded Copper Conductor
Durable Xlpe Insulated Cable Electrical Power Cable With Stranded Copper Conductor Durable Xlpe Insulated Cable Electrical Power Cable With Stranded Copper Conductor Durable Xlpe Insulated Cable Electrical Power Cable With Stranded Copper Conductor Durable Xlpe Insulated Cable Electrical Power Cable With Stranded Copper Conductor Durable Xlpe Insulated Cable Electrical Power Cable With Stranded Copper Conductor
Contact Now

Durable Xlpe Insulated Cable Electrical Power Cable With Stranded Copper Conductor

Minimum Order Quantity : 1000meter Packaging Details : drum
Delivery Time : 30days after payment Payment Terms : L/C, T/T
Supply Ability : 1000000metes per month
Place of Origin: Henan Brand Name: CN CABLE
Model Number: N2XSEY

Detail Information
Screen: Semi Conductive Tape Conductor: Stranded Copper
Insulation: XPLE Matel Screen: Copper Wire Screen
Filler: Filler Outer Sheath: PVC
High Light:

armoured electrical cable

,

electrical power cable

Product Description

YXC8V-R 20.3/35 kV TSEK N2XSEY 20.3/35 kV

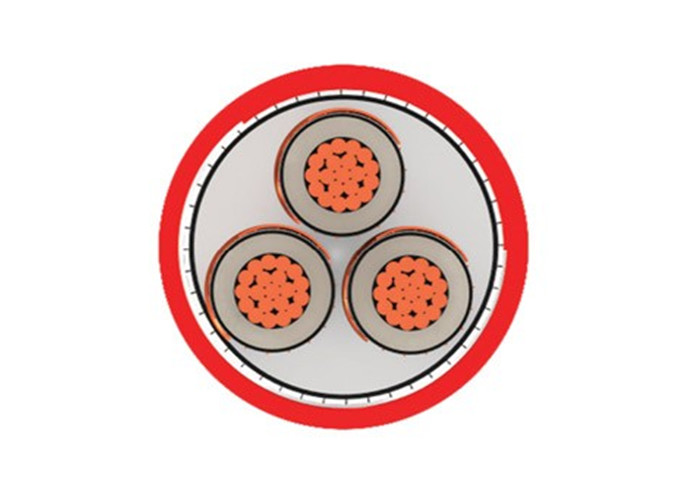

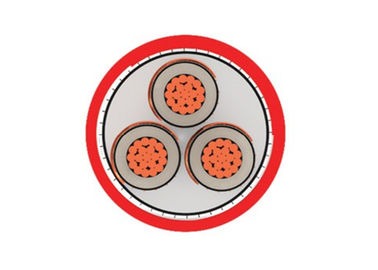

Structure



1. Stranded copper conductor

2. Inner semi conductive layer

3. XPLE insulation

4. Outer semi conductive layer

5. Semi conductive tape

6. Copper wire screen

7. Filler

8. PVC outer sheath



Rated Cross
Section		 Overall Diameter
Of Cable		 Current Carrying
Capacity		 Operating
Inductance		 Operating
Capacity		 Conductor DC
Resistance at (20 °C)		 Net
Weight
mm2 mm Air (A) Ground (A) MH/Km µF/km Ohm/Km Kg/Km
3x35/16 72.50 182 183 0,48 0,10 0,524 6380
3x50/16 75.00 217 214 0,45 0,11 0,387 7080
3x70/16 78.50 269 261 0,42 0,12 0,268 8170
3x95/16 82.50 326 313 0,41 0,14 0,193 9380
3x120/16 86.50 377 356 0,39 0,15 0,153 10630
3x150/25 89.00 426 400 0,37 0,16 0,124 11880
3x185/25 93.50 488 441 0,36 0,17 0,0991 13660
3x240/25 98.50 576 510 0,34 0,18 0,0754 15980
3x300/25 104.50 654 604 0,33 0,20 0,0601 18590
3x400/35 111.00 754 688 0,31 0,24 0,0470 22240
