0.6/1KV SWA Xlpe Insulation 5 Core 16mm Armoured Cable Fr Sheath

Minimum Order Quantity : 200 Meter/Me Price : US $1-50 / Meters 200 Meter/Meters (Min. Order)
Place of Origin: Henan, China (Mainland) Brand Name: CN Cable Group
Model Number: LV Power Cable

Detail Information

Product Name: 5 Core 16mm Armoured Cable Insulation Material: PVC Insulation
Type: Low Voltage Application: Underground
Jacket: PVC Conductor: Cu / Al
Core Number: 1,2,3,4,3+1,5,4+1 Insulation: XLPE/PE/PVC
Armour: STA/SWA/ATA/AWA Outer Sheath: PVC/PE/LSHF/LDPE&LLDPE/MDPE/HDPE
Rated Voltage: 0.6/1KV Certificate: ISO9001/ISO14001
Standard: IEC, BS, ICEA, CSA, NF, AS-NZS
High Light:

0.6/1KV 5 Core 16mm Armoured Cable

,

Xlpe 5 Core 16mm Armoured Cable

,

Xlpe 16mm 5 core swa cable

Product Description

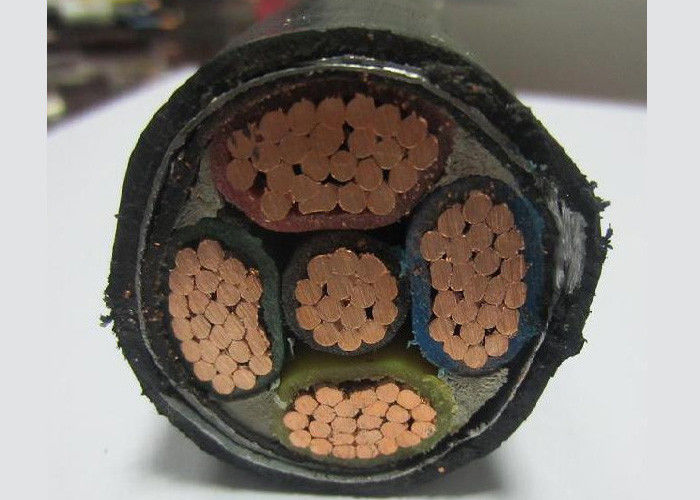

0.6/1KV SWA Xlpe Insulation 5 Core 16mm Armoured Cable Fr Sheath

5 Core 16mm Armoured Cable Application:

Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across the river.



5 Core 16mm Armoured Cable Applicable Standard:

 We can produce according to standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc



Characters:

1. Rated voltage: 0.6/1KV

2. Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.



Construction:

Conductor: Cu/Al (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath :  PVC/PE/LSHF







Cables for rated voltages of 1Kv and 3Kv-(IEC60502)



Conductor Size Stranding No. (Compacted Round) Conductor Dia. Max.D.C.resistance at 20℃
Cu Al Cu Al
mm² No.s No.s mm Ω/KM Ω/KM
25 ≥6 ≥6 5.6-6.5 0.727 1.2
35 ≥6 ≥6 6.6-7.5 0.524 0.868
50 ≥6 ≥6 7.7-8.6 0.387 0.641
70 ≥12 ≥12 9.3-10.2 0.268 0.443
95 ≥15 ≥15 11.0-12.0 0.193 0.32
120 ≥18 ≥15 12.3-13.5 0.153 0.253
150 ≥18 ≥15 13.7-15.0 0.124 0.206
185 ≥30 ≥30 15.3-16.8 0.0991 0.164
240 ≥34 ≥30 17.6-19.2 0.0754 0.125
300 ≥34 ≥30 19.7-21.6 0.0601 0.1
400 ≥53 ≥53 22.3-24.6 0.047 0.0778
500 ≥53 ≥53 25.3-27.6 0.0368 0.0605
630 ≥53 ≥53 28.7-32.5 0.0283 0.0469
800 ≥53 ≥53   0.0221 0.0367
1000 ≥53 ≥53   0.0176 0.0291













Click for more information











Packaging & Shipping




Company Information
Our Certificate
0.6/1KV SWA Xlpe Insulation 5 Core 16mm Armoured Cable Fr Sheath 2
Our Services

0.6/1KV SWA Xlpe Insulation 5 Core 16mm Armoured Cable Fr Sheath 3



1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients

FAQ




Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.



Looking forward to cooperating with you.
