Tinned Copper Conductor Copper Welding Cable , Custom Control Cables Max 600V

Minimum Order Quantity : 1000meters Packaging Details : wooden drum
Delivery Time : 20days after payments Payment Terms : L/C, T/T
Place of Origin: Henan Brand Name: CN CABLE
Certification: CE Model Number: TFL

Detail Information

Conductor: Stranded, Annealed Copper, Tinned, Flexible Insulation: Flame Retardant Polyethylene, Black And Grey.
Shield: AL/PE Laminate Together With Braid Of Annealed And Tinned Copper Wires + Al-polyester Foil. Sheath: Flame Retardant Polyethylene, Grey Or Black.
High Light:

copper welding cable

,

special power cable

Product Description

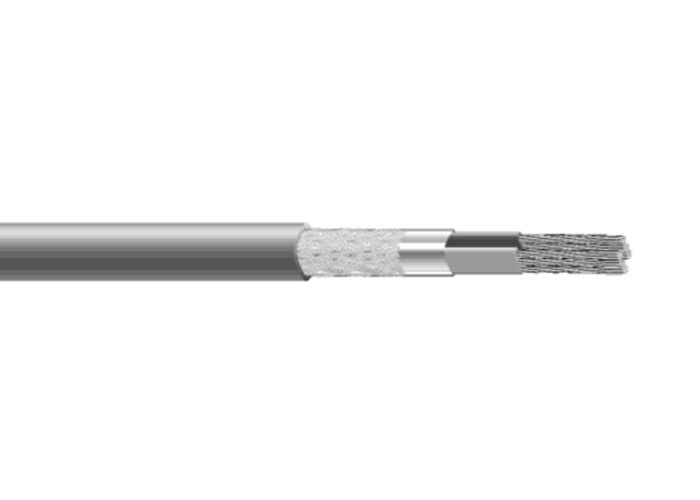

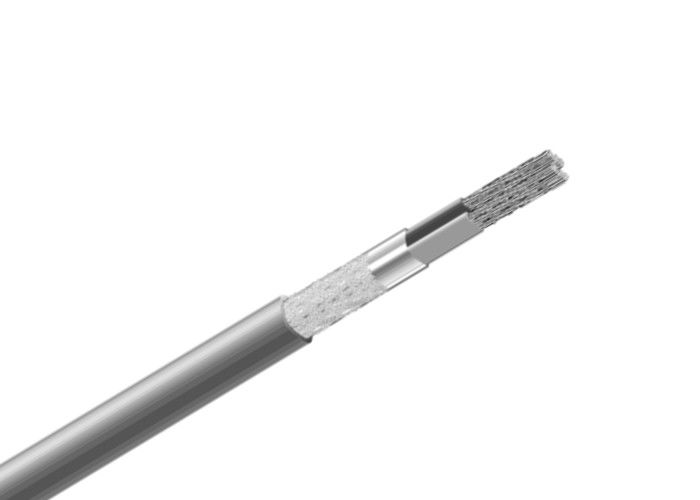

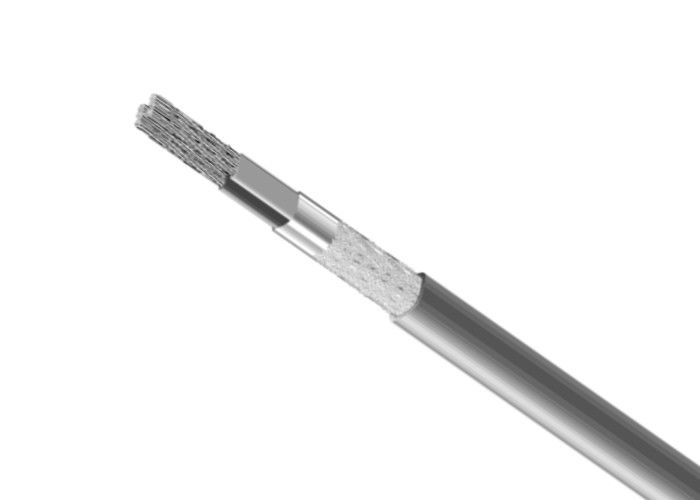

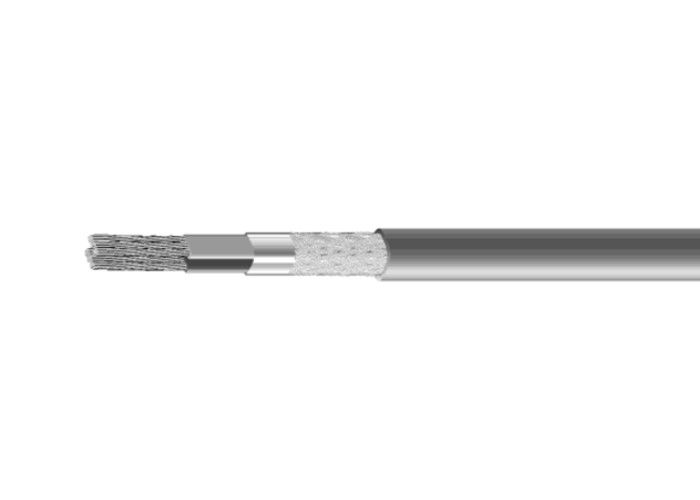

Tinned copper conductor with AL/PE laminate together with braid of annealed and
tinned copper wires shield TEL cable



Application
Halogen free, shielded and flexible connecting cable for use in telecom equipment where there are
requirements for low inductance and good temperature resistance. Suitable in areas that require high electromagnetic compatibility. Grey jacket for indoor use. Black jacket is sunlight resistant, for outdoor use. UL listed, “cable tray use” (E194163)

Conductor
Stranded, annealed copper, tinned, flexible, according to IEC 60228, class 5. Three parallel cores to form a flat conductor.
Insulation
Flame retardant polyethylene, black and grey.
Shield
AL/PE laminate together with braid of annealed and tinned copper wires + Al-polyester foil.
Sheath
Flame retardant polyethylene, grey or black.
Operating voltage
Max 600V
Operating temperature
Max 90ºC, dry
Fire resistance
IEC 60332-3 cat C
UL 1685, Vertical Tray

Technical Data



Conductors x size Height x Width, nom (mm) Weight/100m

Resistance



Conductor Insulation Sheath (kg) (ohm/km)
2 x 14 AWG (2,5mm²)   2,4 x 4,9 7,3 x 7,0 10,0 8,21
2 x 10 AWG (6mm²)   3,2 x 6,4 9,4 x 9,4 19,3 3,39
2 x 10 AWG (6mm²)   3,2 x 6,4 9,4 x 9,4 19,3 3,39
2 x 8 AWG (10mm²)   3,8 x 9,0 10,5 x 11,5 29,2 1,95
2 x 8 AWG (10mm²)   3,8 x 9,0 10,5 x 11,5 29,2 1,95
2 x 6 AWG (16mm²)   4,6 x 11,0 11,8 x 13,6 42,6 1,24



Ordering information:

Conductors x size Length (m) Drum Total weight (kg)
2 x 14 AWG (2,5mm²) 500 Bobbin 52
2 x 10 AWG (6mm²) 500 K6 104
2 x 10 AWG (6mm²) 500 K6 104
2 x 8 AWG (10mm²) 500 K6 153
2 x 8 AWG (10mm²) 500 K6 153
2 x 6 AWG (16mm²) 300 K6 135
