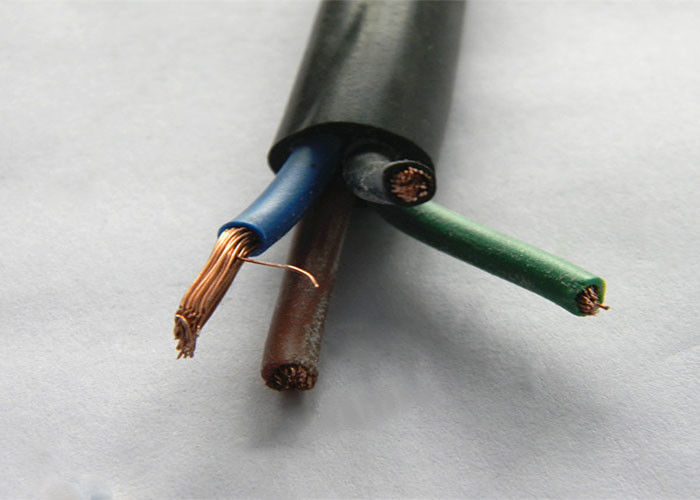

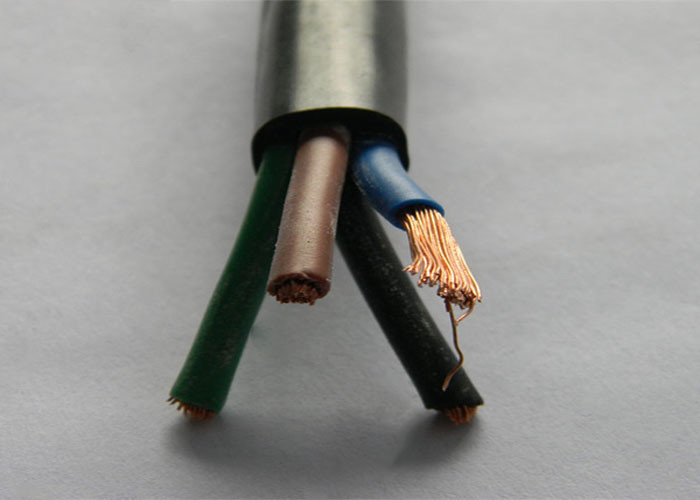

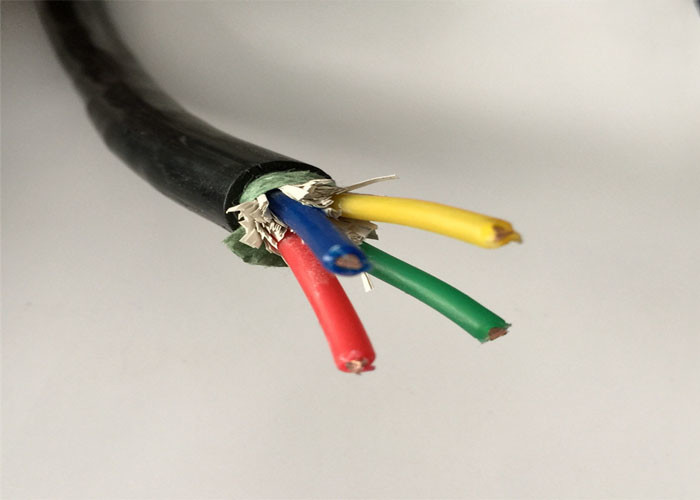

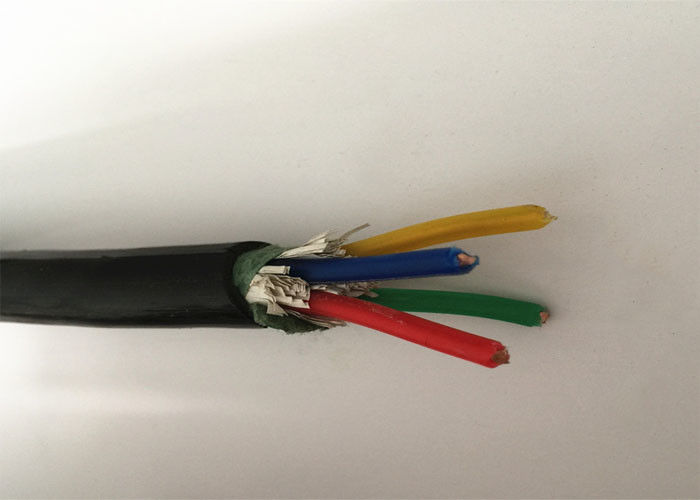

Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable

Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable
Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable

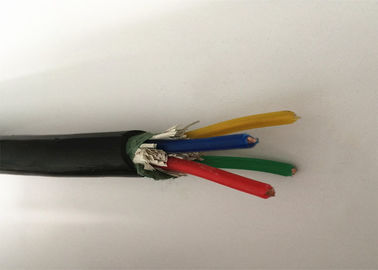

Large Image :  Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: CN Cable Group
Model Number: LV Power Cable

Payment & Shipping Terms:

Minimum Order Quantity: 200 Meter/Me
Price: US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Detailed Product Description
Insulation Material: PVC Type: Low Voltage
Application: Underground Conductor Material: Copper
Jacket: PVC Conductor: Cu / Al
Core Number: 1,2,3,4,3+1,5,4+1 Insulation: XLPE/PE/PVC
Outer Characters: Flame Retardant, Fire Resistant, LSHF Rated Voltage: 0.6/1KV
Certificate: ISO9001/ISO14001 Standard: IEC, BS, ICEA, CSA, NF, AS-NZS
Product Name: Copper Conductor 4 Cores 10mm Pvc Insulated Power Cable With Pice List
High Light:

pvc insulated power cable


pvc jacket cable

Copper conductor 4 cores 10mm pvc insulated power cable with pice list

Product Description

 low voltage power cable.jpg



LV Electric Power Cables are used for laying indoor, tunnel, underground, canal, water and seabed, etc.


Applicable Standard:

 We can produce according to standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc



1. Rated voltage: 0.6/1KV

2. Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.

3. Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation

In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulation.



Conductor: Cu/Al (Solid/Stranded)

Insulation: XLPE/PVC/PE/LSHF

Inner sheath (applicable if there is armor layer): PVC/PE

Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape

Outer sheath :  PVC/PE/LSHF




Product date sheet


Nominal cross-sectional area of conductor Thickness of insulation Thickness of extruded bedding Nominal steel armor wire diameter Thickness of oversheath Approximate overall diameter
Extruded bedding Taped bedding
mm² mm mm mm mm mm mm
1.5a 0.6 0.8 0.9 1.3 12.6
2.5a 0.7 0.8 0.9 1.4 14.1
4a 0.7 0.8 0.9 1.4 15.3
6a 0.7 0.8 0.9 1.4 16.6
10a 0.7 0.8 1.25 1.5 19.5
16a 0.7 0.8 1.25 1.6 21.6 21.6
25b 0.9 1.0 1.6 1.7 23.6 23.2
25a 0.9 1.0 1.6 1.7 26.7 26.3
35b 0.9 1.0 1.6 1.8 25.7 25.3
35a 0.9 1.0 1.6 1.8 29.4 29.0
50b 1 1.0 1.6 1.8 28.5 28.1
70b 1.1 1.0 1.6 1.9 32.2 31.8
95b 1.1 1.2 2.0 2.1 37.0 36.2
120b 1.2 1.2 2.0 2.2 40.4 39.6
150b 1.4 1.4 2.5 2.3 45.5 44.3
185b 1.6 1.4 2.5 2.4 49.8 48.6
240b 1.7 1.4 2.5 2.6 55.1 53.9
300b 1.8 1.6 2.5 2.7 60.2 58.6
400b 2.0 1.6 2.5 2.9 66.6 65.0

a Circular or compacted circular standed conductor(class2)

b Shaped stranded conductor(class2)








Click for more information






Packaging & Shipping



Company Information
Our Certificate
Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable 3
Our Services

Copper Conductor 10mm PVC Insulated Cable / LV 4 Core Pvc Cable 4

1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients





Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.


Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .


Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
