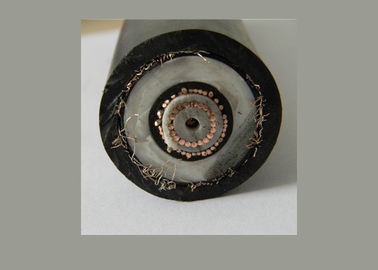

High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor

China CN Cable Group Co., Ltd. certification
China CN Cable Group Co., Ltd. certification
I'm Online Chat Now

High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor

High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor
High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor

Large Image :  High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: CN
Model Number: MV

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meter/M
Price: US $50-300 / Meters | 1000 Meter/Meters 110kv xlpe insulated high voltage undergr
Detailed Product Description
Insulation Material: XLPE Type: Medium Voltage
Application: Underground Conductor Material: Copper
Jacket: PVC Product Name: High Voltage 110kv XLPE Insulated 500mm Power Cable With Price List
Rated Voltage: 110/220kv Conductor: Al/Cu
Core: 1 Core Insulation: XLPE
Sheath: PVC/PE Shield: Corrugated Aluminum
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel
High Light:

single core power cable

,

high voltage power cables

High voltage 110kv XLPE insulated 500mm power cable with price list

Product Description

220kv 110kv copper / aluminum underground HV cable with metal sheath.jpg



Application:

Extra-high-tension cable is a kind of power cable with the continuous development ofcable technology. The cable is generally used as a central link in the large
transmission system. It belongs to a high voltage cable with high technical content,which is mainly used for long distance power transmission.



Applicable Standard:

GB 11017. IEC61840



Cable Characteristics:

1. Long-term operating temperature for cable conductor is 90C
2. The highest temperature of the conductor in short circuit (no longer than 5
seconds) is not more than 250C. If a joint is in the cable, the temperature of thetinning welding joint is not more than 120C, compressing joint not more than150C and electro-welding or gas-welding joint not more than 250C.
3. No drop is limited provided there is full mechanical tension when cable is laid. It is forbidden to lay cable in iron-pipe or to fix cable by circling around the cablewith iron materials.
4. Min. temperature during installation shall not be less than 0C. In the case oflower temperature, heating measures shall be taken.





Cable Structure:

Core Number: 1 Core

Conductor: Cu / AL

Insulation: XLPE

Metallic screen: Corrugated Aluminum sheathed

Outer sheath: PVC / PE





Product date sheet









Type Description Rated Voltage Nominal Cross-section
Cu core Al core KV mm²
YJLW02 YJLLW02 XLPE Insulated Corrugated Aluminum sheathed PVC outer sheath power cable 64/110(126) 240 300 400 500 630 800 1000 1200
YJLW03 YJLLW03 XLPE Insulated Corrugated Aluminum sheathed PE outer sheath power cable 127/220(252) 400 500 630 800 1000 1200 1600 2000 2500
Note:The conductor shall be conpact circular stranded type if size is smaller than 800mm².If conductor size is 1000mm² and above,the structure should be compact segmental conductor.







 aluminum cable hv.png









Click for more information









Packaging & Shipping

110kv underground cable.jpg

Company Information




Our Certificate

High Voltage 110kv 500mm Single Core Cable XLPE Insulated Copper Conductor 4


Our Services




FAQ






Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.

Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !

Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.

Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!

Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .

Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.



Looking forward to cooperating with you.
