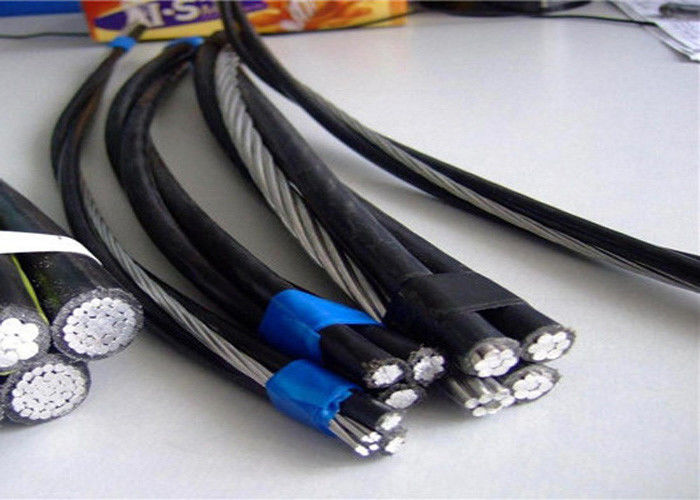

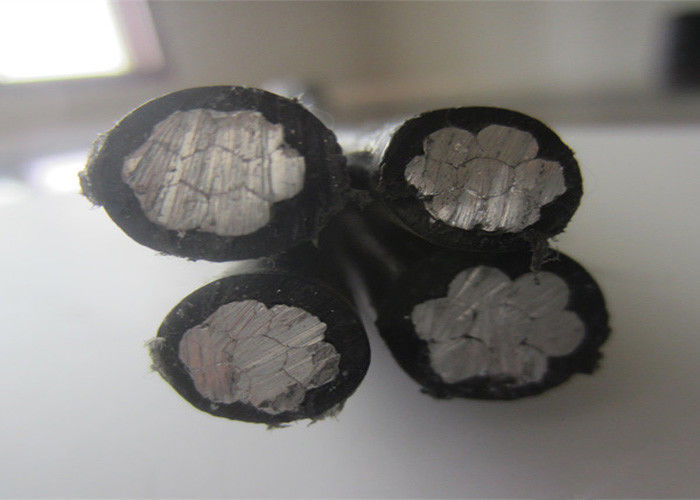

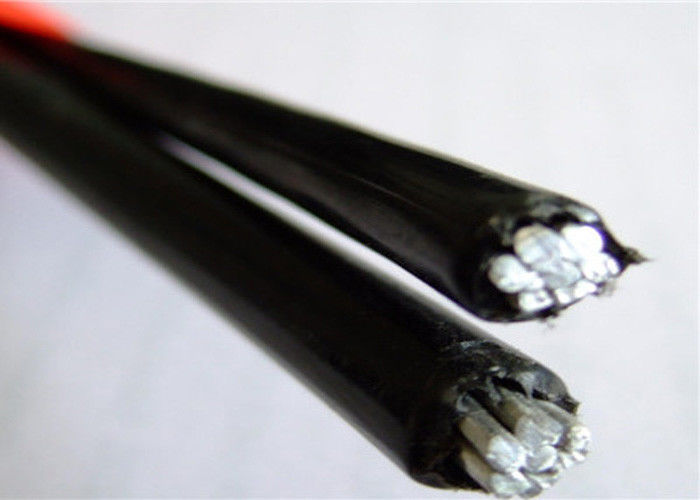

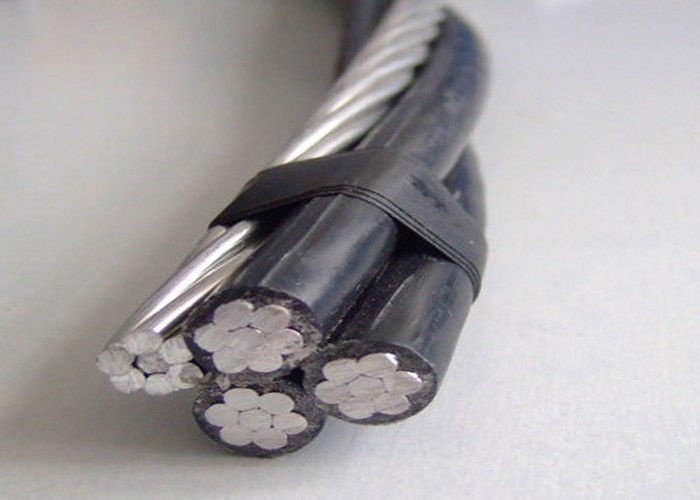

Duplex Aac Phase Acsr Neutral Conductor Service Drop Cable With PVC Jacket

China Duplex Aac Phase Acsr Neutral Conductor Service Drop Cable With PVC Jacket supplier
Duplex Aac Phase Acsr Neutral Conductor Service Drop Cable With PVC Jacket supplier Duplex Aac Phase Acsr Neutral Conductor Service Drop Cable With PVC Jacket supplier Duplex Aac Phase Acsr Neutral Conductor Service Drop Cable With PVC Jacket supplier Duplex Aac Phase Acsr Neutral Conductor Service Drop Cable With PVC Jacket supplier

Large Image :  Duplex Aac Phase Acsr Neutral Conductor Service Drop Cable With PVC Jacket

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: CN
Model Number: ABC cable

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meter/M
Price: US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Contact Now
Detailed Product Description
Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: Duplex Aac Phase Acsr Neutral Conductor Service Drop Cable Abc Cable
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black

Duplex aac phase acsr neutral conductor service drop cable abc cable

Product Description

abc cable.jpg


Application:
The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃

Applicable Standard:
IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474


Cable Structure:
Conductor: Al/Al Alloy/Cu
Insulation: XLPE/PE/PVC






ACSR Conductor Supported Service Drop Cable- ICEA S-76-474



Code Name Size Al Phase Core ACSR Messenger Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area Str. No. Dia. Insulation Nominal Thickness Cross-section Area Al Wire St Wire Stranded Dia.

Str.

No.

Dia. Str. No. Dia.
AWG/MCM mm2 No.s mm mm mm2 No.s mm No.s mm mm KN mm kg/km
DUPLEX
Shepherd 1X6+6 13.3 7 4.68 1.14 13.3 6 1.68 1 1.68 5.04 5.3 12 109
Terrier 1X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.3 14.34 165
Chow 1X2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01 12.7 17.49 254
Bull 1X1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11 19.5 22.35 408
TRIPLEX
Voluta 2X6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04 5.3 13.58 166
Periwinkle 2X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.3 16.03 248
Conch 2X2+6 33.6 7 7.2 1.14 13.3 6 2.67 1 2.67 8.01 12.7 19.36 377
Neritina 2X1/0+1/0 53.5 7 9.2 1.52 53.51 6 3.37 1 3.34 10.02 19.5 24.77 607
Triton 2X2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34 23.6 27.3 751
Mursia 2X3/0+3/0 85.0 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75 29.4 30.18 931
Zuzara 2X4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31 37.1 33.31 1156
Limpet 2X336.4+336.4 170.4 19 16.56 2.03 170.46 18 3.47 1 3.47 17.35 38.6 42.07 1704
Strombus 2X4+6 21.1 7 5.7 1.14 13.3 6 1.68 1 1.68 5.04 5.3 15.08 216
Cockle 2X2+4 33.6 7 7.2 1.14 21.15 6 2.12 1 2.12 6.36 8.3 18.18 327
Janthina 2X1/0+2 53.5 7 9.2 1.52 33.62 6 2.67 1 2.67 8.01 12.7 23.33 527
Ranella 2X1/0+2 53.5 19 9.2 1.52 33.62 6 2.67 1 2.67 8.01 12.7 23.33 527
Clio 2X2/0+1 67.4 19 10.3 1.52 42.41 6 3.00 1 3.00 9 15.8 25.62 649
Aega 2X3/0+1/0 85.0 19 11.6 1.52 53.51 6 3.37 1 3.37 10.11 19.5 28.28 803
Cerapus 2X4/0+2/0 107.2 19 13 1.52 67.44 6 3.78 1 3.78 11.34 23.6 31.18 994
Cowry 2X336.4+4/0 170.4 19 16.59 2.03 107.22 6 4.77 1 4.77 14.31 37.1 39.93 1597
QUADRUPLEX
Chola 3X6+6 13.3 7 4.66 1.14 13.3 6 1.68 1 1.68 5.04 5.30 15.61 222
Hackney 3X4+4 21.1 7 5.7 1.14 21.15 6 2.12 1 2.12 6.36 8.30 18.29 329
Pallomino 3X2+2 33.6 7 7.2 1.14 33.62 6 2.67 1 2.67 8.01 12.70 22 497
Costena 3X1/0+1/0 53.5 19 9.2 1.52 53.51 6 3.37 1 3.37 10.11 19.50 28.26 802
Grullo 3X2/0+2/0 67.4 19 10.3 1.52 67.44 6 3.78 1 3.78 11.34 23.60 31 987
Suffolk 3X3/0+3/0 85.0 19 11.6 1.52 85.03 6 4.25 1 4.25 12.75 29.40 34.2 1222
Appaloosa 3X4/0+4/0 107.2 19 13 1.52 107.22 6 4.77 1 4.77 14.31 37.10 37.68 1513
Gelding 3X336.4+4/0 170.4 19 16.56 2.03 107.22 6 4.77 1 4.77 14.31 37.10 45.97 2174
