Black 600v Abc Quadruplex Overhead Wire Cable With AAAC Messager

China CN Cable Group Co., Ltd. certification
China CN Cable Group Co., Ltd. certification
I'm Online Chat Now

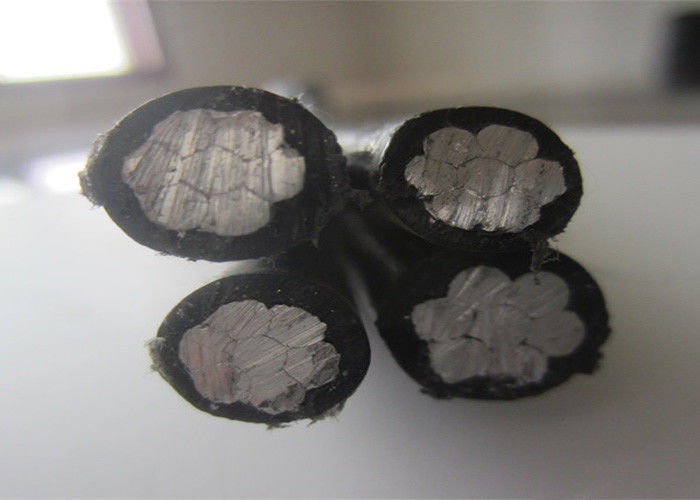

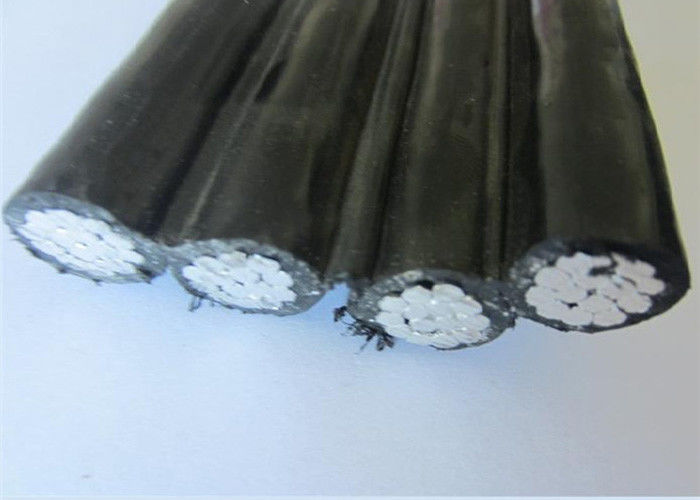

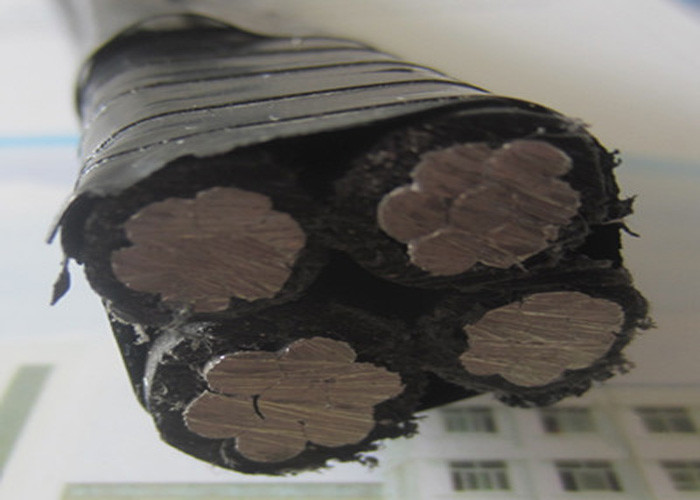

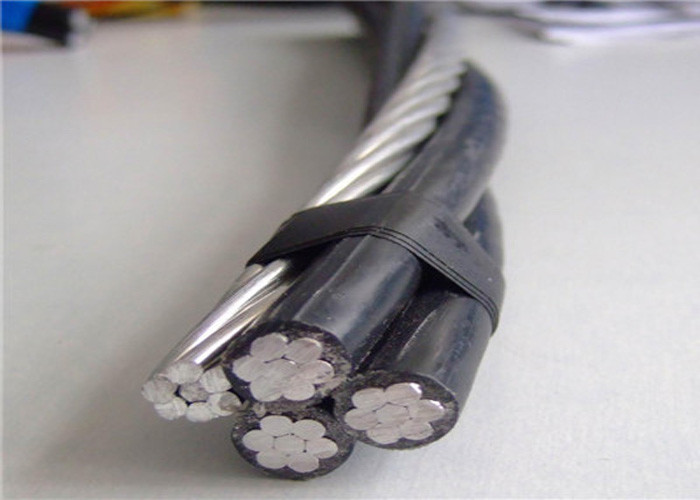

Black 600v Abc Quadruplex Overhead Wire Cable With AAAC Messager

Black 600v Abc Quadruplex Overhead Wire Cable With AAAC Messager
Black 600v Abc Quadruplex Overhead Wire Cable With AAAC Messager Black 600v Abc Quadruplex Overhead Wire Cable With AAAC Messager Black 600v Abc Quadruplex Overhead Wire Cable With AAAC Messager Black 600v Abc Quadruplex Overhead Wire Cable With AAAC Messager

Large Image :  Black 600v Abc Quadruplex Overhead Wire Cable With AAAC Messager

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: CN
Model Number: ABC cable

Payment & Shipping Terms:

Minimum Order Quantity: 1000 Meter/M
Price: US $1-50 / Meters | 1000 Meter/Meters (Min. Order)
Detailed Product Description
Insulation Material: XLPE Type: Low Voltage
Application: Overhead Conductor Material: Aluminum
Jacket: PVC Product Name: 600v Abc Quadruplex Service Drop Wire Abc Cable With AAAC Messager
Rated Voltage: 0.6/1KV Conductor: Al/Al Alloy/Cu
Core: 2,3,4,5,6, Insulation: XLPE/PVC/PE
Certificate: ISO9001/ISO14001 Standard: IEC60502-2, BS 6622, NFC 33226, Etc.
Package: Wooden Reel, Iron-wooden Reel, Steel Reel Color: Black
High Light:

service drop wire

,

overhead service cable

600v abc quadruplex service drop wire abc cable with AAAC messager

Product Description

abc cable.jpg



Application:

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (Pole to Pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃



Applicable Standard:

IEC60502, NF C 33-209, ICEA S-70-547, ICEA S-76-474





Cable Structure:

Conductor: Al/Al Alloy/Cu

Insulation: XLPE/PE/PVC









AAAC Conductor Supported Service Drop Cable- ICEA S-76-474



Code Name Size Al Phase Core AAAC Conductor Rated Strength Approx. Overall Dia. Approx. Weight
Cross-section Area

Str.

No.

Dia.

Insulation Nominal

Thickness

Cross-section Area Stranding No. Dia.
AWG/MCM mm2 No.s mm mm mm2 No.s mm KN mm kg/km
Duplex
Chihuahua 1X6AWG+6AWG 13.3 1 4.11 1.14 15.50 7 5.04 4.93 11.43 96
Vizsla 1X6AWG+6AWG 13.3 7 4.65 1.14 15.50 7 5.04 4.93 11.97 98
Harrier 1X4AWG+4AWG 21.15 1 5.19 1.14 24.67 7 6.36 7.82 13.83 146
Whippet 1X4AWG+4AWG 21.15 7 5.7 1.14 24.67 7 6.36 7.82 14.34 148
Schnauzer 1X2AWG+2AWG 33.62 7 7.2 1.14 39.25 7 8.02 12.45 17.50 226
Heeler 1X1/0AWG+1/0AWG 53.49 19 9.2 1.52 62.48 7 10.1 19.83 22.35 364
Triplex
Hippa 2X6AWG+30.58MCM 13.30 7 4.66 1.14 15.50 7 5.04 4.93 13.58 154
Bamacle 2X4AWG+48.69MCM 21.15 7 5.7 1.14 24.67 7 6.36 7.82 16.03 230
Shrimp 2X2AWG+77.47MCM 33.62 7 7.2 1.14 39.25 7 8.01 12.45 19.36 349
Gammarus 2X1/0AWG+123.3MCM 53.51 7 9.2 1.52 62.48 7 10.11 19.83 24.84 562
Cyclops 2X2/0AWG+155.4MCM 67.44 19 10.3 1.52 78.74 7 11.34 23.96 27.3 693
Flustra 2X3/0AWG+195.7MCM 85.03 19 11.6 1.52 99.16 7 12.75 30.18 30.18 858
Lepas 2X4/0AWG+246.9MCM 107.22 19 13 1.52 125.11 7 14.31 38.05 33.31 1064
Crab 2X4AWG+30.58MCM 21.15 7 5.7 1.14 15.50 7 5.04 4.93 15.08 205
Solaster 2X2AWG++48.69MCM 33.62 7 7.2 1.14 24.67 7 6.36 7.82 18.18 309
Sandcrab 2X1/0AWG+77.47MCM 53.51 7 9.2 1.52 39.25 7 8.01 12.45 23.33 498
Sipho 2X2/0AWG+97.65MCM 67.44 19 10.3 1.52 49.48 7 9 15.69 25.62 613
Fulgar 2X3/0AWG+123.3MCM 85.03 19 11.6 1.52 62.48 7 10.11 19.83 28.28 757
Arca 2X4/0AWG+155.4AWG 107.22 19 13 1.52 78.74 7 11.34 23.96 31.18 936
QUADRUPLEX
French Coach 3X6AWG+30.58MCM 13.30 7 4.66 1.14 15.50 7 5.04 4.93426 15.61 211
Arabian 3X4AWG+48.69MCM 21.15 7 5.7 1.14 24.67 7 6.36 7.82369 18.29 312
Belgian 3X2AWG+77.47MCM 33.62 7 7.2 1.14 39.25 7 8.01 12.4468 22 469
Shetland 3X1/0AWG+123.3MCM 53.51 19 9.2 1.52 62.48 7 10.11 19.8259 28.26 757
Thoroughbred 3X2/0AWG+155.4MCM 67.44 19 10.3 1.52 78.74 7 11.34 23.9601 31 932
Trotter 3X3/0AWG+195.7MCM 85.03 19 11.6 1.52 99.16 7 12.75 30.1835 34.2 1151
Walking 3X4/0AWG+246.9MCM 107.20 19 13 1.52 125.10 7 14.31 38.0516 37.68 1424











Click for more information











Related Products

.jpg





ABC CABLE 2 * 16mm2.png ABC CABLE WITH BARE NEUTRAL MESSENGER.jpg ABC CABLE WITH INSULATED NEUTRAL WIRE.png ABC CABLE NFC33209.png ABC CABLE FOR AMERICA MARKET.png

ABC CABLE 2×16mm2

ABC CABLE WITH BARE NEUTRAL MESSENGER

ABC CABLE WITH INSULATED NEUTRAL WIRE

ABC CABLE NFC33209

ABC CABLE FOR AMERICA MARKET
