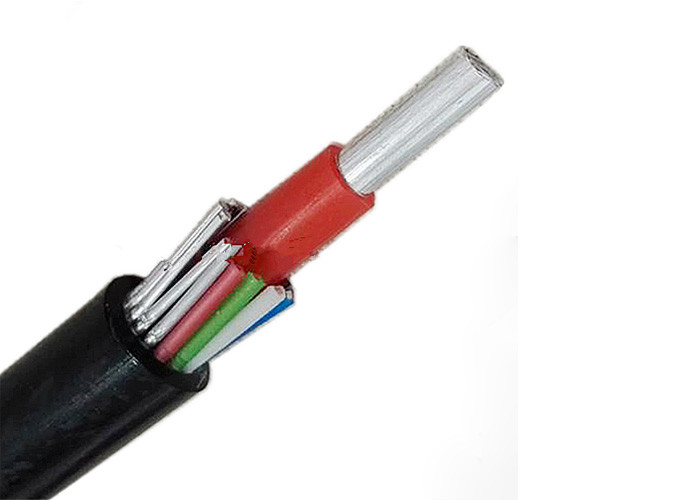

Copper Airdac SNE 10mm Armoured Cable For House Connections

Copper Airdac SNE  10mm Armoured Cable For House Connections
Copper Airdac SNE  10mm Armoured Cable For House Connections Copper Airdac SNE  10mm Armoured Cable For House Connections Copper Airdac SNE  10mm Armoured Cable For House Connections

Large Image :  Copper Airdac SNE 10mm Armoured Cable For House Connections

Product Details:

Place of Origin: Henan, China (Mainland)
Brand Name: CN Cable Group
Model Number: Split Concentric Cable

Payment & Shipping Terms:

Minimum Order Quantity: 200 Meter/Me
Price: US $1-50 / Meters | 200 Meter/Meters (Min. Order)
Detailed Product Description
Conductor Material: Copper Insulation: XLPE
Outer Sheath: XLPE Rated Voltage: 0.6/1KV
Certificate: ISO9001/ISO14001 Standard: ASTM, IEC, BS,etc.
Product Name: 0.6/1KV Airdac SNE Cable 10mm2
High Light:

awg power cable

,

16mm split concentric cable

Copper Airdac SNE 10mm Armoured Cable For House Connections

0.6/1KV Airdac SNE Cable

Product Description

 low voltage power cable.jpg



Application:

Used for house connections. This cable can only be used for single phase supply. Cable is made to be suspended in the air. Cable is available as a Combined Neutral and Earth (CNE) and Separate Neutral and Earth (SNE) with coms wire available in Separate Neutral and Earth (SNE).
Combined Neutral and Earth (CNE) Airdac 600/1000V
Separate Neutral and Earth (SNE) Airdac 600/1000V



10mm², AIRDAC SNE Cable



Mechanical Properties
* Cable size: 10mm²
* Phase Conductor (No.xOD): 7x1.35mm
* Nominal Insulation Thickness: 1.0mm
* Neutral Conductor (No.xOD): 7x1.33mm
* Earth Conductor (No.xOD): 3x1.78mm
* Nominal Sheath Thickness: 1.6mm
* Approximate Cable OD: 12.8mm
* Approximate Cable Mass: 320 kg/km

Installation Data (SAG* mm)
Span 10m :45
Span 20m :180
Span 30m :400
Span 40m :710
Span 50m :1110
Based on
UTS** :3600
MWT*** :900







0.6/1KV Airdac SNE Cable





Cable Neutral Earth Pilot Overall Cable Current Phase Core
Size Size Size Cores Diameter Mass Rating Impedance
mm² mm² mm² mm mm kg/m amps ohms/km
10 10 7.5 2 x 0.5 12.8 0.32 90 2.34
16 16 10 2 x 0.5 14.5 0.485 125 1.47




















Click for more information











Packaging & Shipping




Company Information
Our Certificate
Copper Airdac SNE  10mm Armoured Cable For House Connections 3
Our Services

Copper Airdac SNE  10mm Armoured Cable For House Connections 4

1.  Product consultation ,analysis, design, production

2.  Provide industry information, Product Training, Assist Product Marketing

3.  Provide project support such as tender assistant, cooperate visit customers,FAT support

4.  Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples

5.  OEM service

6.  Other services customized by clients



FAQ




Q1: Are you a manufacturer or a trade company?
A: We are cable manufacturer with 15 years production experience and more than 10 years export experience.
Q2: What`s your export business type / customer groups?
A: Our business includes: Retail, wholesale, government project supply, private engineering supply, international bidding, customer requirements production, OEM , etc. And our customers are : Retailers, Wholesalers, Electric Power Companies, Oil companies, EPC companies, Electrical equipment manufacturers, Factories, Agents, Brokers , etc. No matter which field you are in , if you need cables , just contact us !
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
A: Please do not worry. Contact us and send us your requirements, we will help you to choose correct cable you need. If you have below information is better: Cable voltage, conductor material, Insulation and Outer sheath material, armor type. Otherwise you can provide us the cable installation environment, application requirements, etc.
Q4: When can I get the price ?
A: Normally you can get our feedback within 24 hours upon we get your inquiries. As soon as necessary product information is confirmed, our quotation will reach you within 24 hours. For large project and multi-items more than 50 items, we need 3-5 days more.



Q5: What’s your MOQ?/ How long is your delivery time?
A: MOQ & Delivery time both according to different product, product size, production construction. Welcome to contact us for further communication. Anyway, we will try our best to support you!
Q6: What’s your trade term and payment term?
A: Mostly used trade term is EXW, FOB , CFR/CNF, CIF. Payment term varies from different contract value and commercial clauses. Normally 30% TT advance payment is required, the balance payment by TT / LC .
Q7: What`s your quality guarantee and period.
A: We guarantee that all of our products are free from defects. We will take back any product that does not meet the agreed quality by both parties. Usually the guarantee period is 18 months after shipment and 12 months after installation, which is earlier .



Q8: Does your price include destination custom clearance , import tax , installation service ?
A: Sorry, currently we only supply cables and provide shipping service in China. Other services should be re-quoted and negotiated by both parties.
